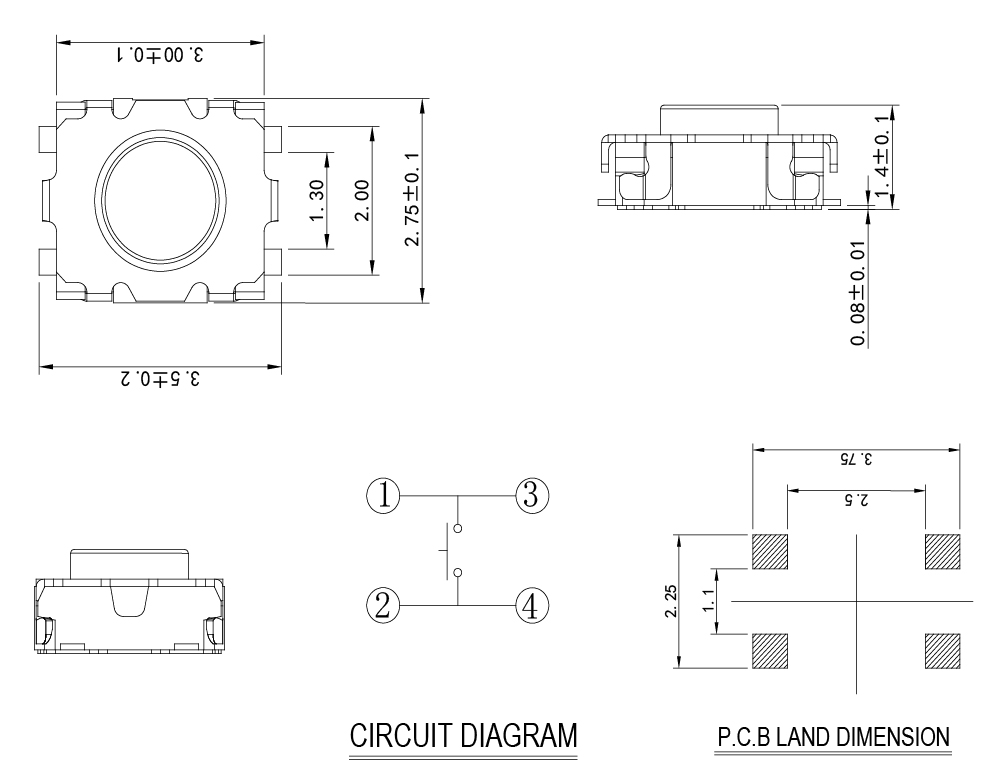

超小型高度为1.4mm (Ultra-compact, height of 1.4mm)
操作力度客制化 (Customizable operating force)
笔记本电脑及周边设备 (Notebooks & peripheral devices)
无人机、工业设备、转换器 (Drones, industrial equipment, converters)
家庭用便携设备、VR/AR (Portable home devices, VR/AR)
远程无钥匙进入 (RKE)、转向、换挡器、质量控制、汽车导航仪、汽车音响、HVAC (Remote keyless entry (RKE), steering, shifters, quality control, car navigation, car audio, HVAC)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -30℃ to +85℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 50mA 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩ min. 100V DC for 1 min | |
| 介电强度 Dielectric strength | 100V AC for 1 min | |
| 接触电阻 Contact resistance | 100mΩ max | |
| 耐用性 Durability | 寿命 Lifetime | 100,000 cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | J:160gf U:280gf H:400gf |
| 行程 Travel | 0.12 ± 0.05mm | |
