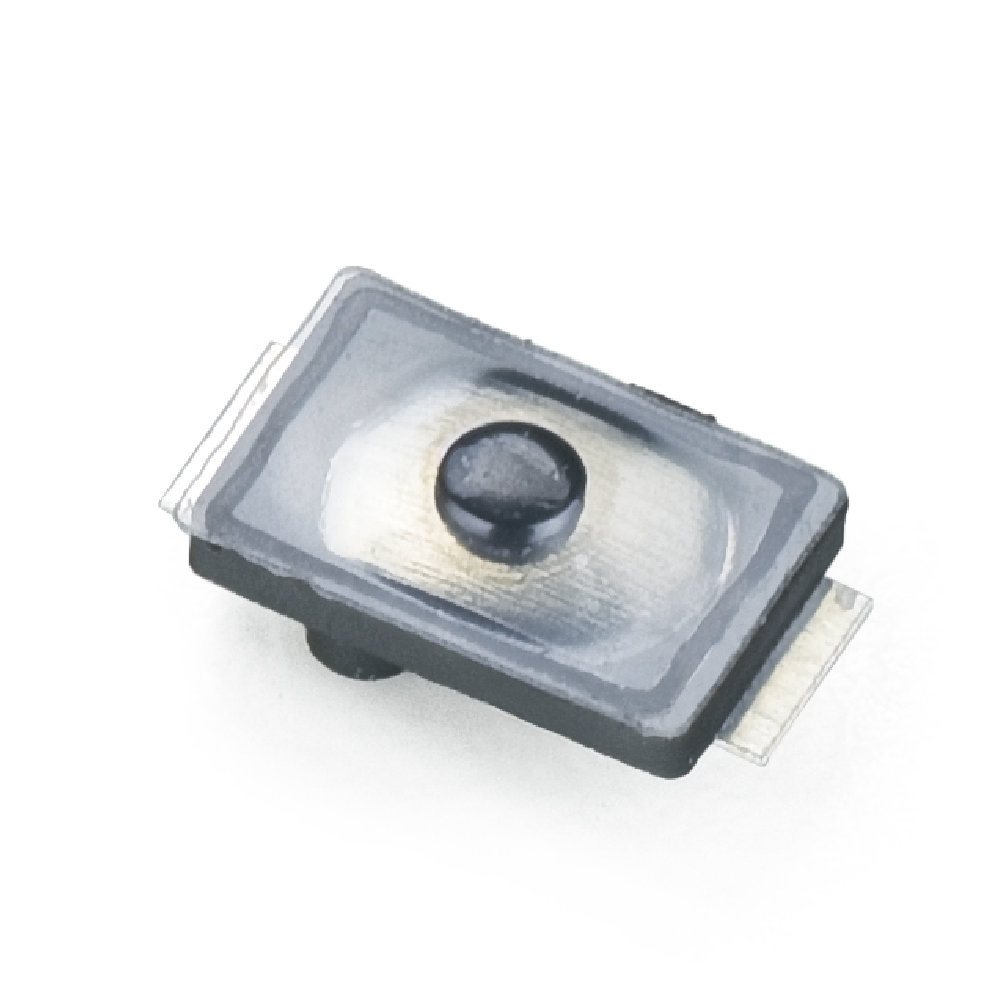

超小型、薄型 (Ultra-compact, slim type)
激光焊接工艺 (Laser welding process)
防水等级相当IP68 (Waterproof rating equivalent to IP68)
操作力度客制化 (Customizable operating force)
智能手机、平板电脑、头戴式耳机、可穿戴设备 (Smartphones, tablets, headphones, wearables)
便携式家用设备、VR/AR (Portable home devices, VR/AR)
相机、摄像机 (Cameras, camcorders)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -30℃ to +85℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 20mA. 15V DC |
| 绝缘电阻 Insulation resistance | 50MΩ min. 100V DC | |
| 介电强度 Dielectric strength | 250V AC for 1 min. | |
| 接触电阻 Contact resistance | 500mΩ max. | |
| 耐用性 Durability | 寿命 Lifetime | J:100,000 Cycles C:50,000 Cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | J:160gf C:250gf |
| 行程 Travel | 0.15 ± 0.05mm | |
