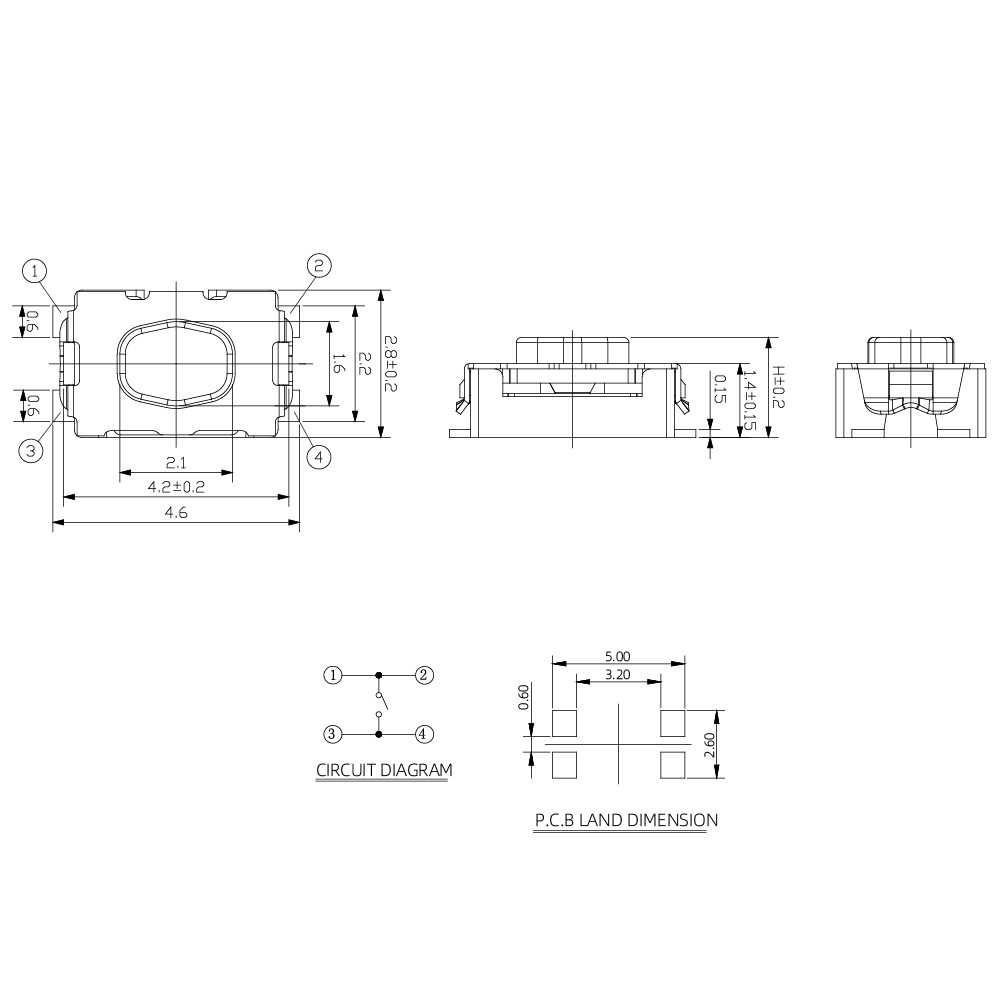

超小型高度为1.9mm (Ultra-compact, height 1.9 mm)
操作力度客制化 (Customizable operating force)
笔记本电脑＆周边设备 (Laptops & peripherals)
便携式家用设备、VR/AR (Portable home devices, VR/AR)
机器人、无人机、工业设备、转换器 (Robots, drones, industrial equipment, converters)
电动工具电池包按键 (Power tool battery pack keys)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -40℃ to +85℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 50mA 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩmin.100V DC for 1 min | |
| 介电强度 Dielectric strength | 100V AC for 1 min | |
| 接触电阻 Contact resistance | 100mΩ max | |
| 耐用性 Durability | 寿命 Lifetime | 100,000 cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | Y:120gf F:210gf P:300gf H:400gf |
| 行程 Travel | 0.25 ± 0.1mm | |
