紧凑型，表面贴装。 薄型设计。

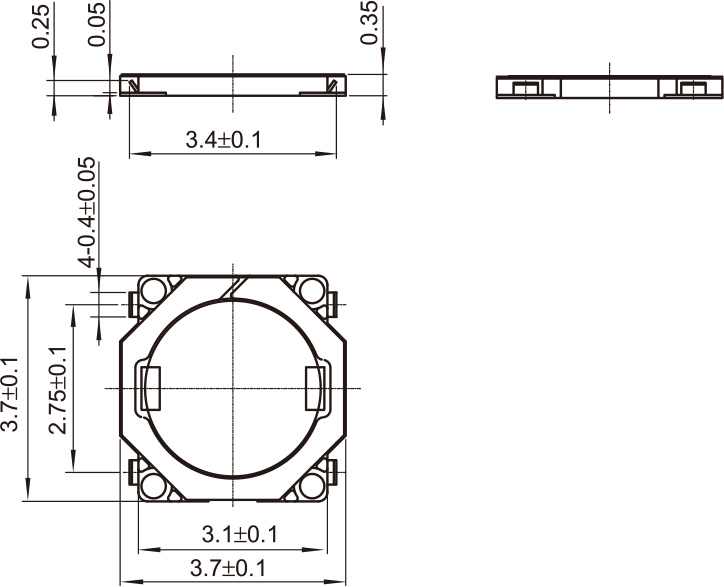

高度为0.35毫米。
Compact,Surface Mount. Low-profile Type.
height of 0.35mm.
应用领域涵盖移动设备（如耳机、可穿戴设备、笔记本电脑及外设）与影音设备（如显示、音响及摄像设备）等。
Applications include mobile devices (such as headsets, wearables, notebooks, and peripherals) and audio/video equipment (including displays, audio systems, and cameras).
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -30℃ to +85℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 50mA. 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩ min. 100V DC | |
| 介电强度 Dielectric strength | 250V AC for 1 min. | |
| 接触电阻 Contact resistance | 100mΩ max. | |
| 耐用性 Durability | 寿命 Lifetime | 100,000 Cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | J:180gf C:250gf E:130gf |
| 行程 Travel | 0.15 ± 0.05mm | |
