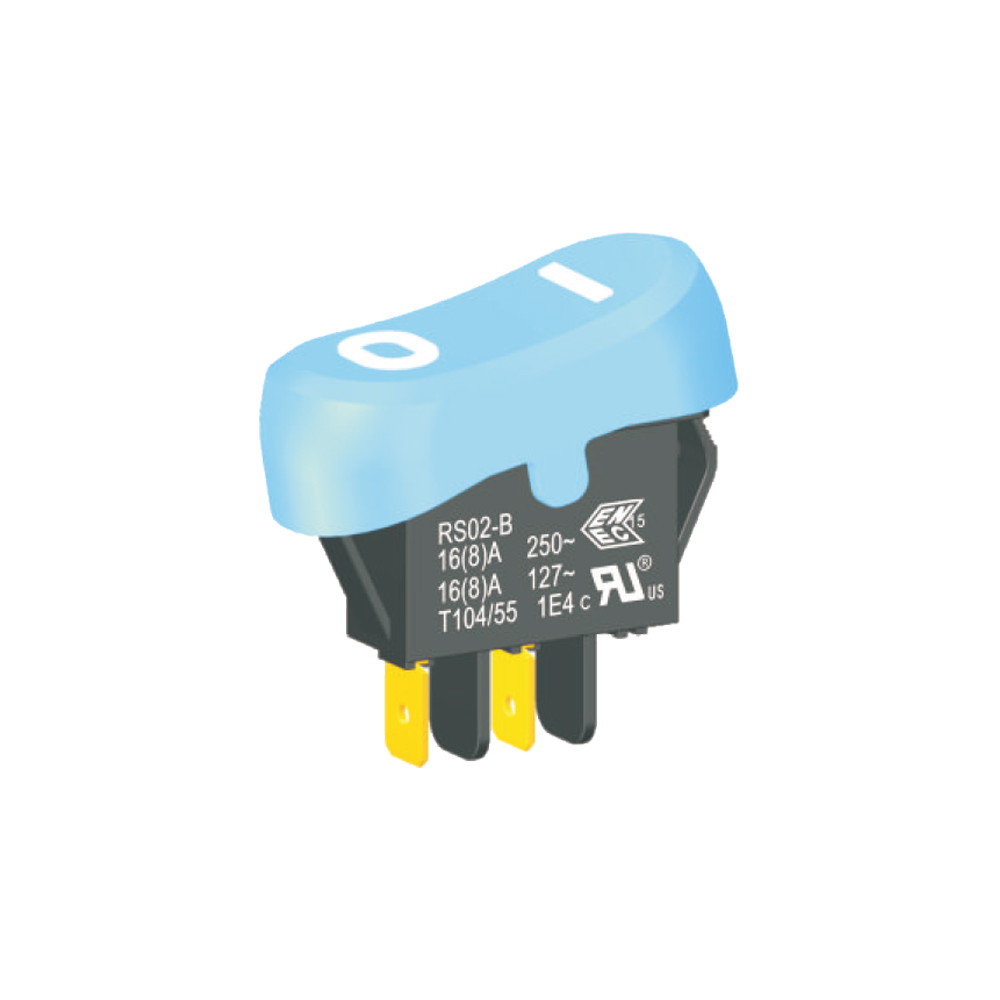

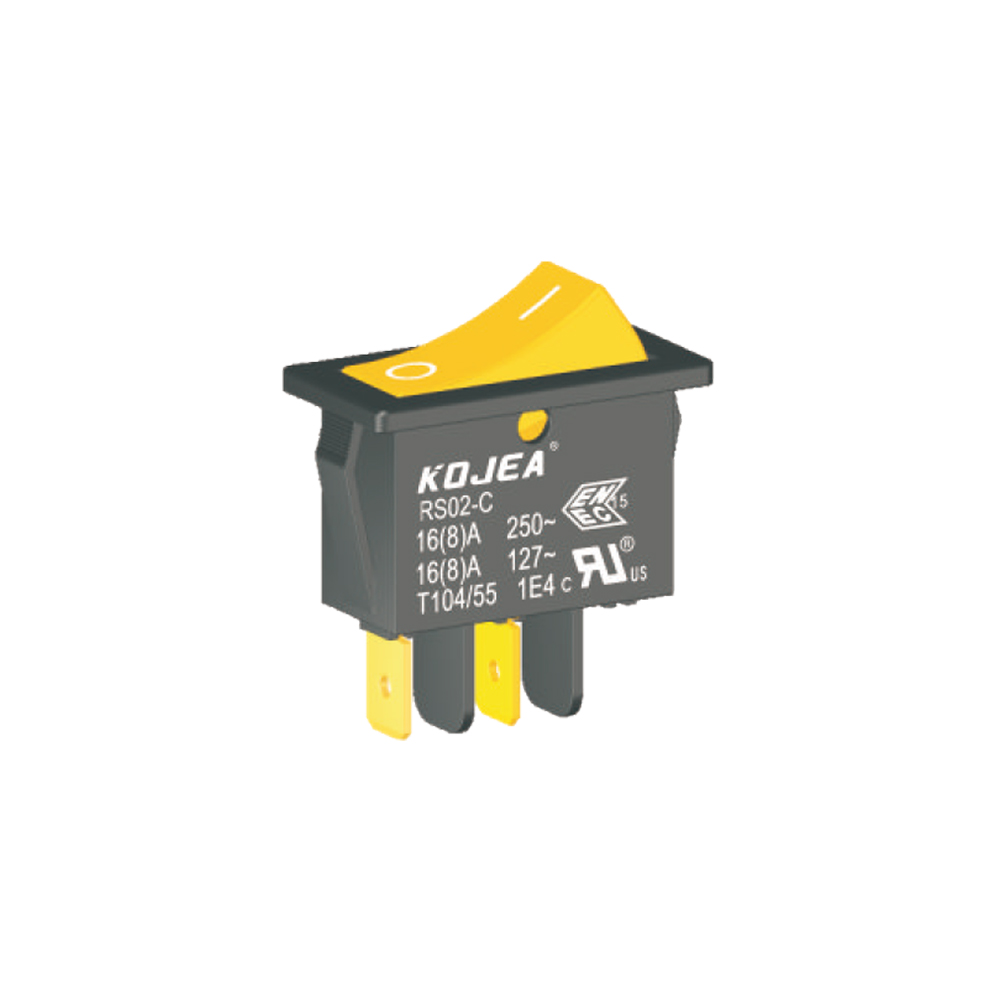

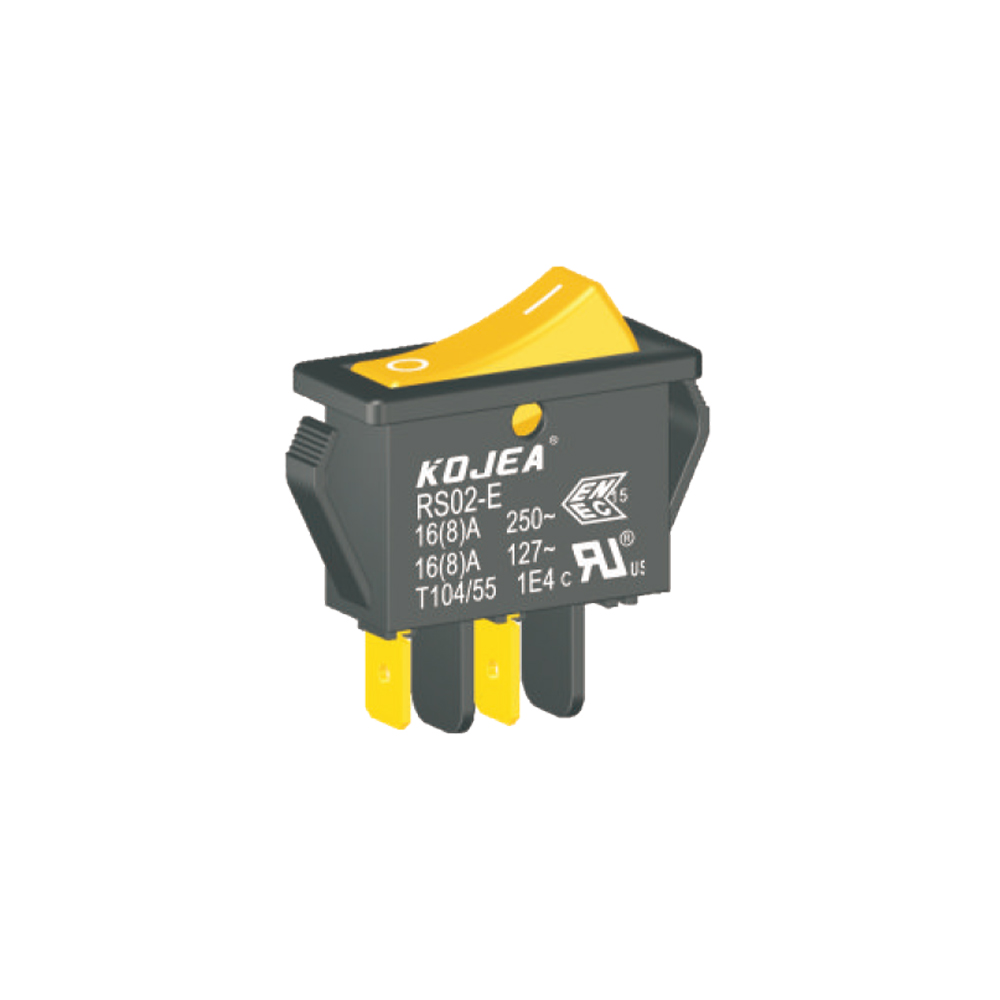

◆ RS02 series are one standard type rocker switch, optional with Protection Cap for dustproof and waterproof or inner dustproof structure, commonly for used in small Home appliances and office equipments, such as: Heat Guns, Hair Driers, Electric Fans， Printers, Vacuum Cleaners, Dry and Wet Vacuum Cleaners, High Pressure Washers, etc.

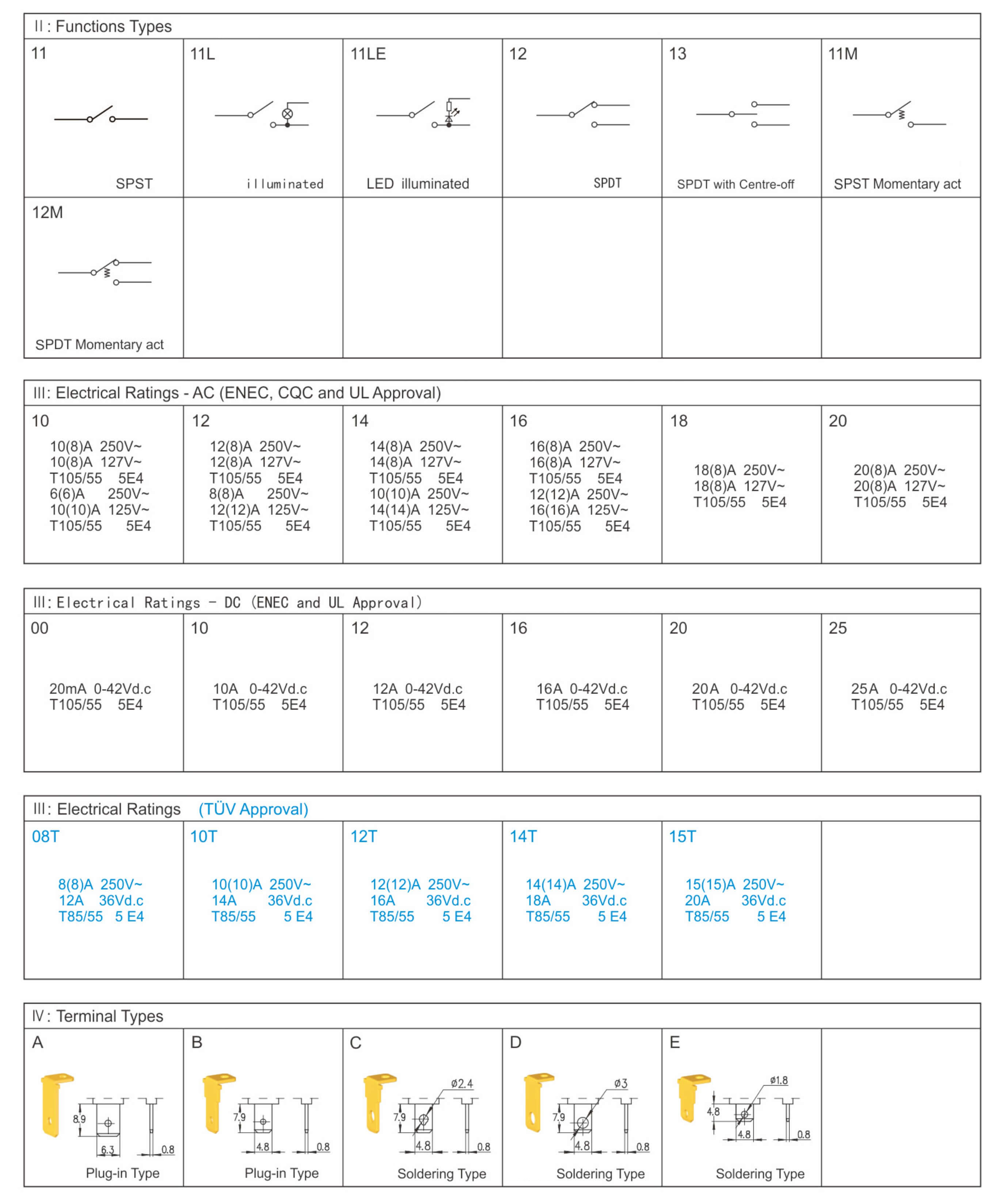

◆ Optional with the function as follows:
→ SPST (Single Pole Single Throw)
→ SPDT (Single Pole Double Throw)
→ SPDT with center off
→ Momentary act

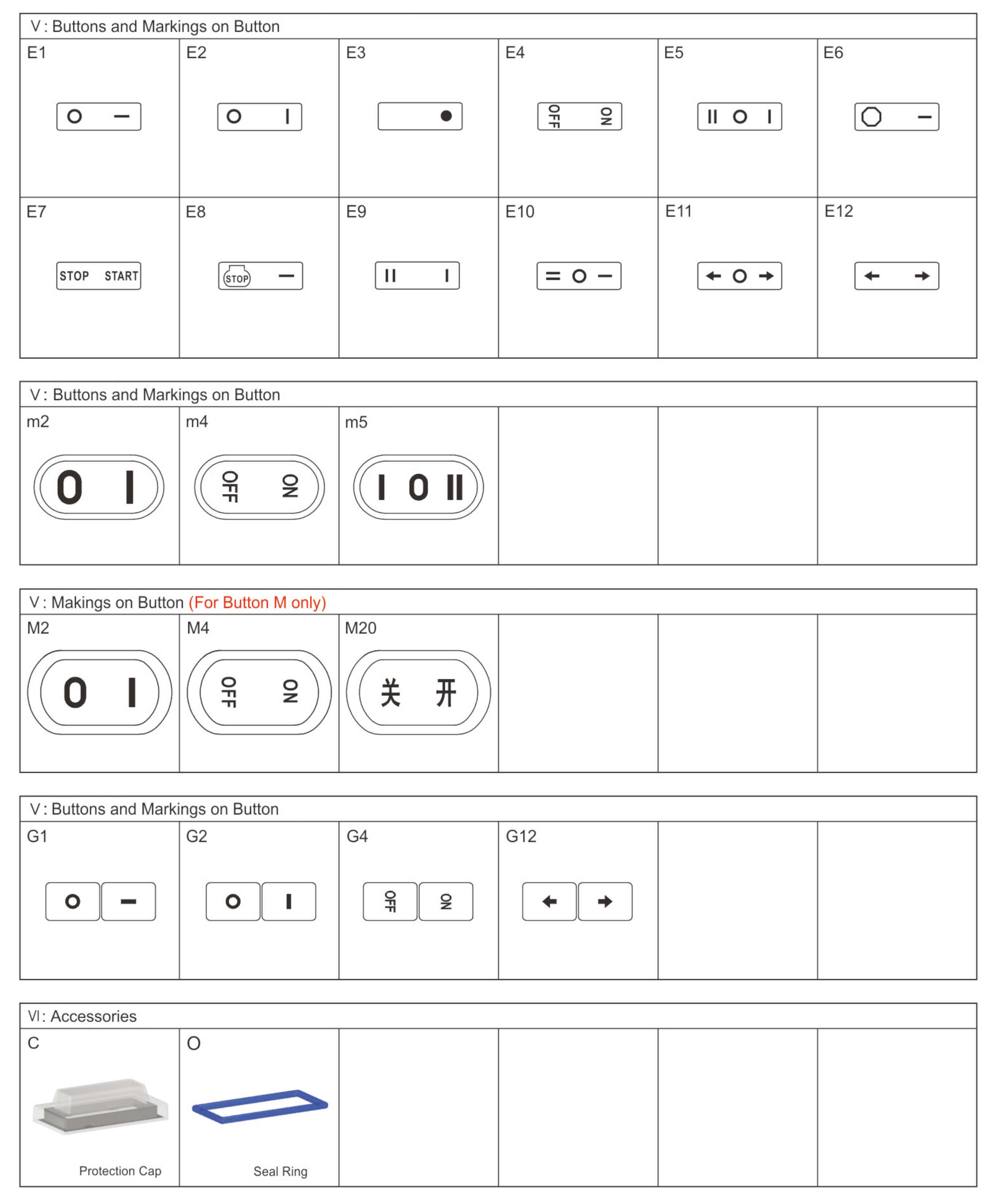

◆ Optional with the accessor as follows:

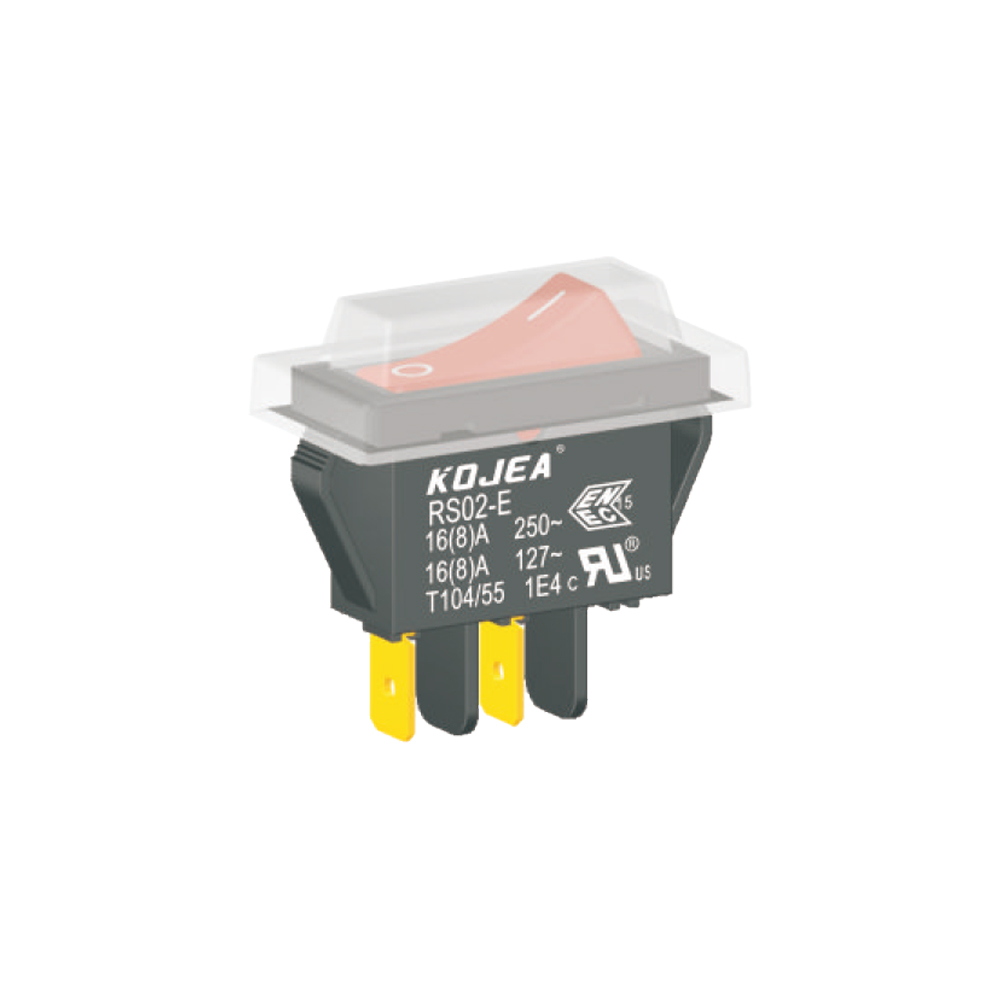

→ Protection Cap
→ Inner Dustproof Structure
→ Soldering with leads and terminals

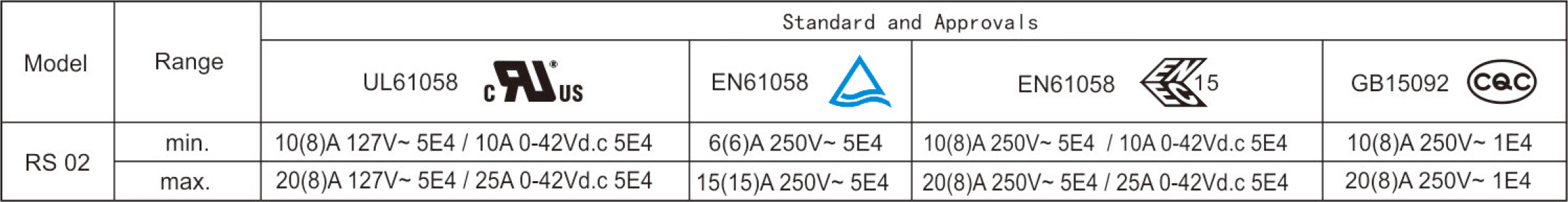

| → Mechanical life endurance | ≥5E4/1E5 |
| → Electrical life endurance | ≥5E4/1E5 |
| → Max. Inrush current at 250V | 48A/72A |
| → Max. Inrush current at 127V | 48A/96A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~105℃ |
| → Actuator temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side/Output side:
→ Plug-in terminals 6.3×0.8mm
→ Plug-in terminals 4.8×0.8mm
→ Soldering terminals
→ PCB Soldering terminals
