◆ RS01 series are one standard type rocker switch, optional with Protection Cap for dustproof and waterproof, or with inner dustproof structure, commonly for used in portable power-tools such as: Hand Sanders, Die Grinders, Electric Nailers, Laser Actuators, etc. Also for used in small Home appliances and office equipments, such as: Reading Lamps, Electric Fans, Printers, Game Players, Computer Power-supplys, Power Sound Box, etc.

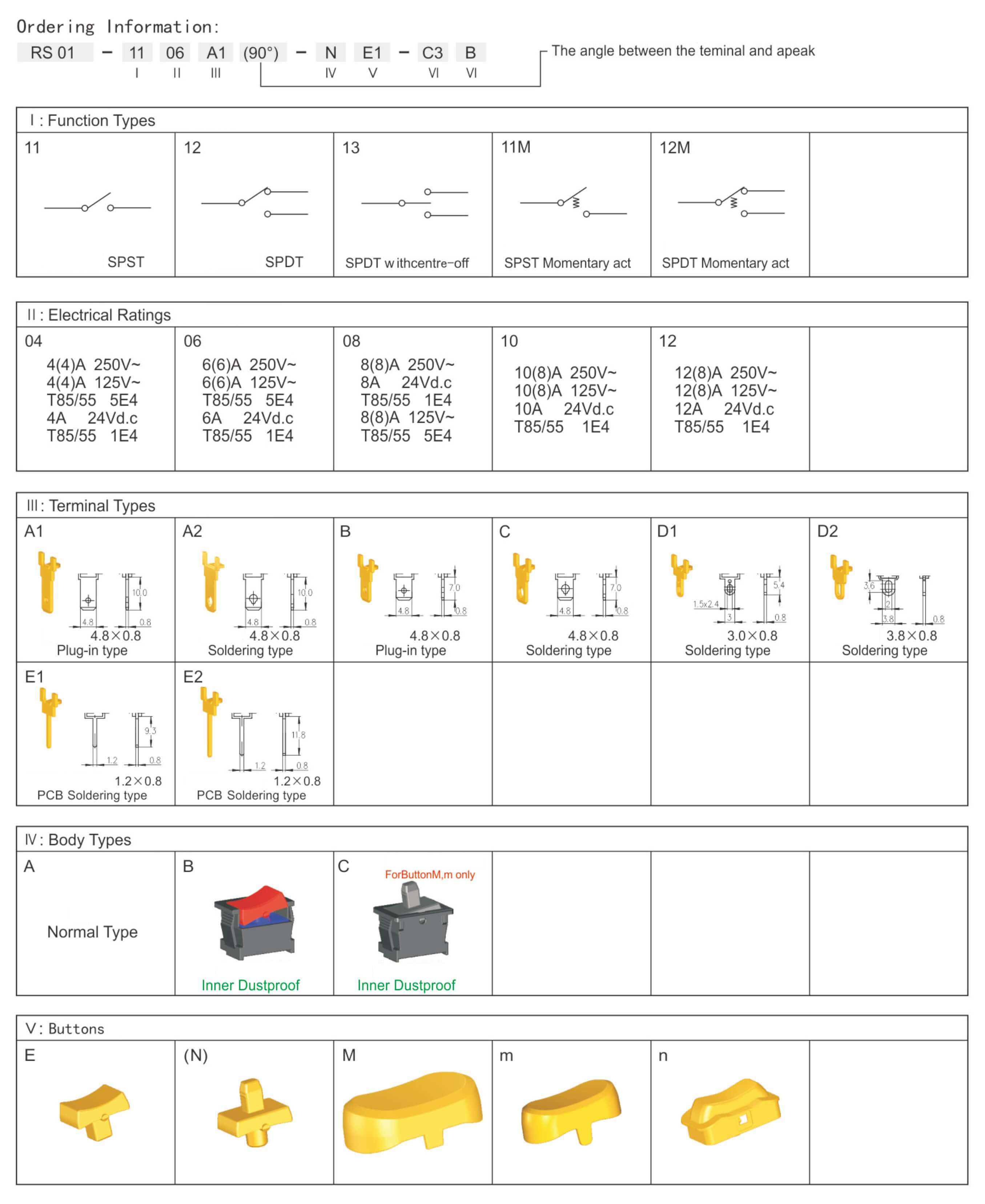

◆ Optional with the function as follows:
→ SPST (Single Pole Single Throw)
→ SPDT (Single Pole Double Throw)
→ SPDT with center off
→ Momentary act

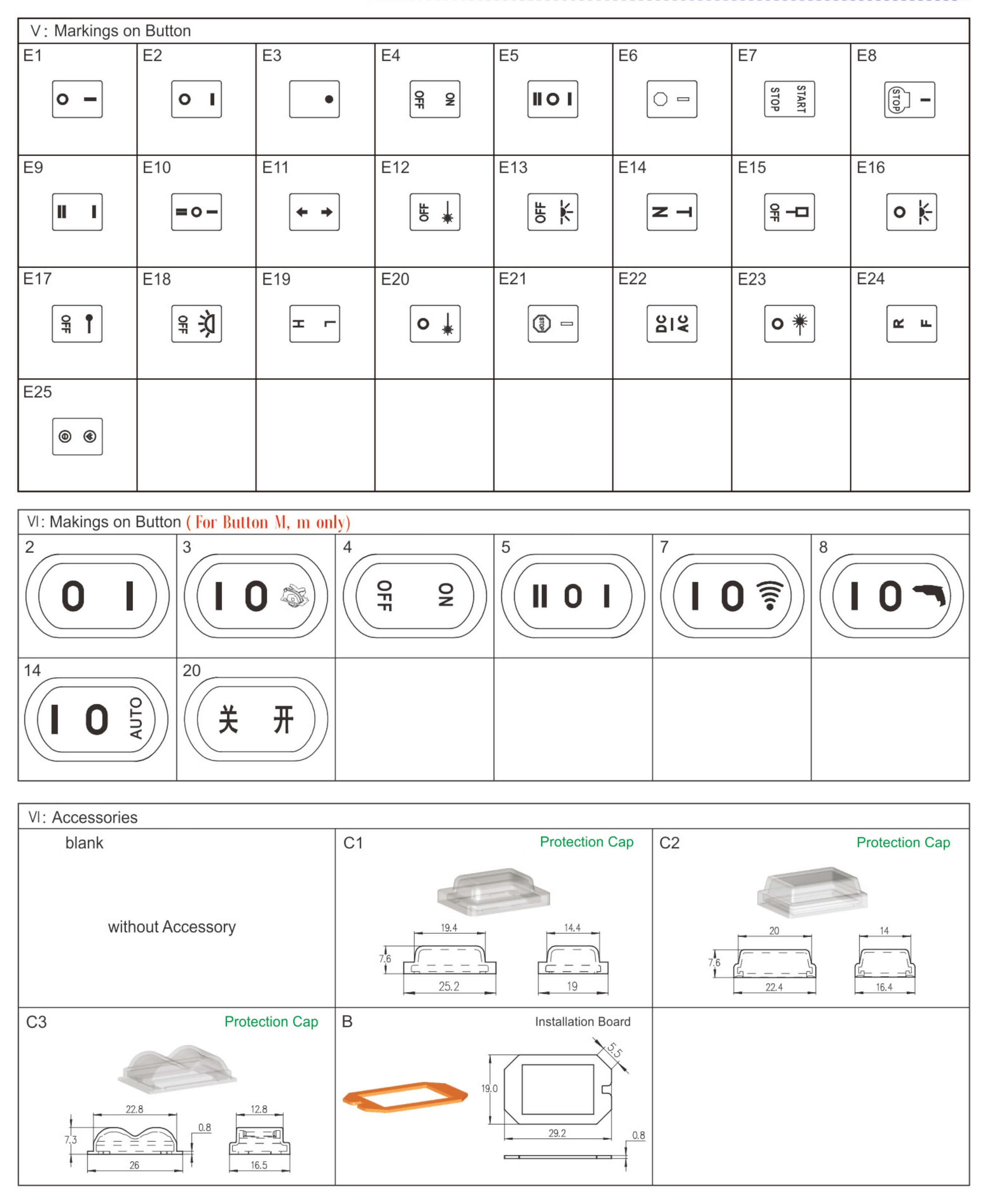

◆ Optional with the accessor as follows:

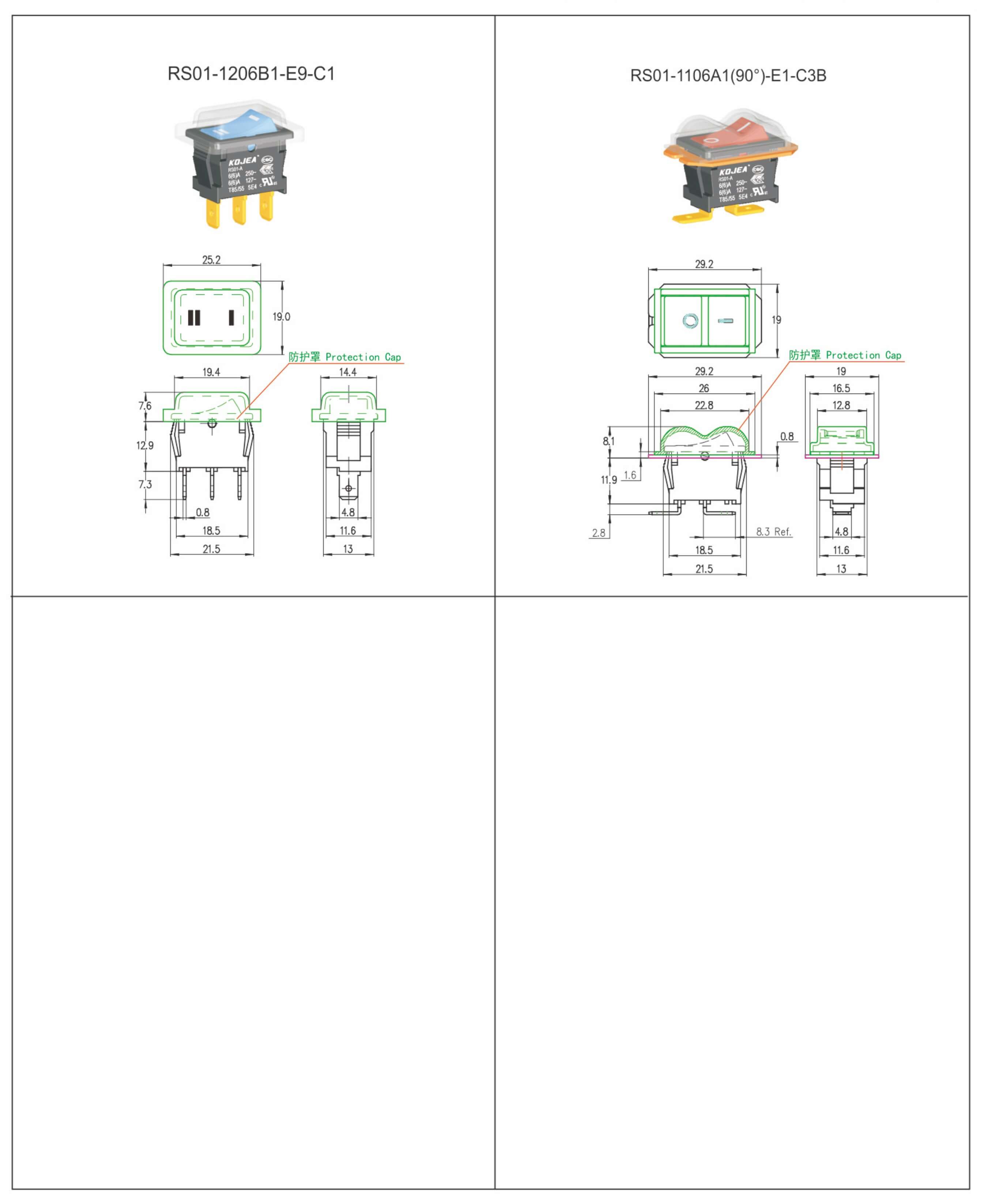

→ Protection Cap
→ Inner Dustproof Structure
→ Soldering with leads and terminals
| → Mechanical life endurance | ≥5E4/1E5 |
| → Electrical life endurance | ≥1E4/5E4 |
| → Max. Inrush current at 250V | 48A |
| → Max. Inrush current at 125V | 48A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~85℃ |
| → Actuator temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side/Output side:
→ Plug-in terminals 4.8×0.8mm
→ Soldering terminals
→ PCB Soldering terminals
