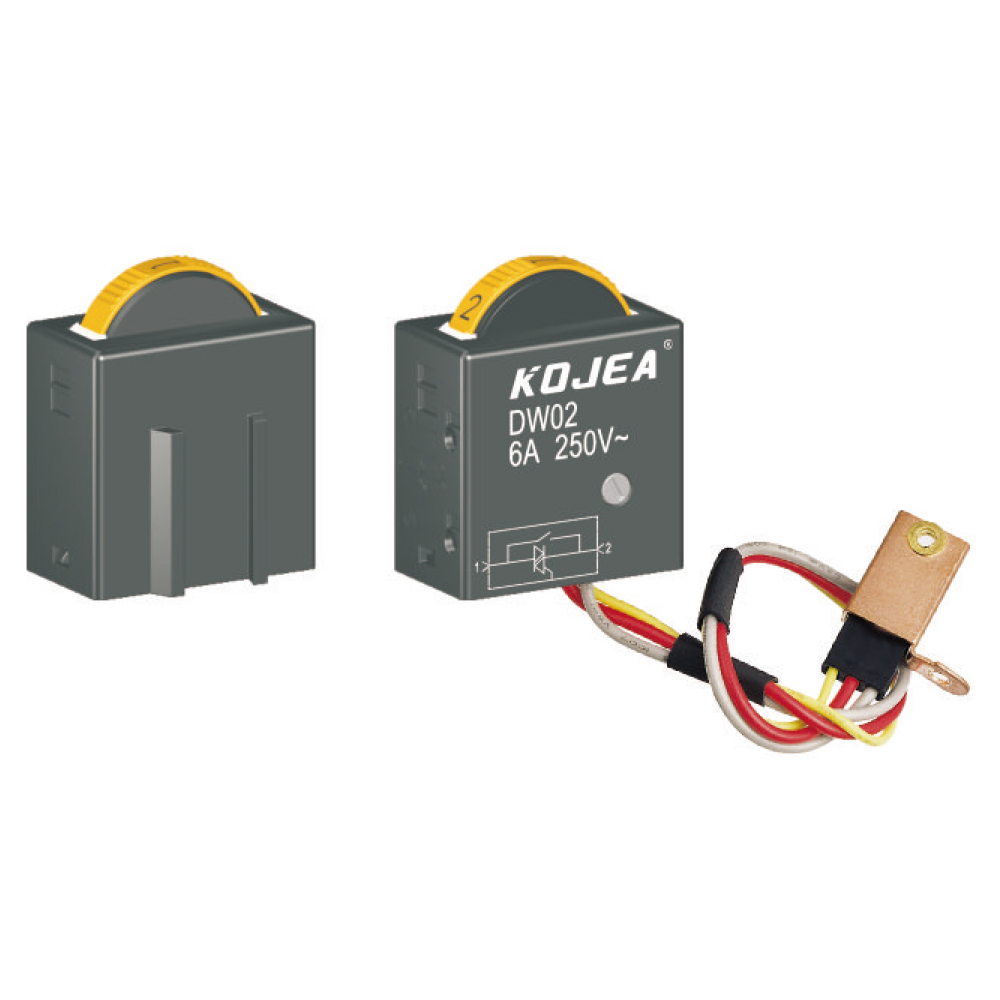

◆ DW02 series are one general type AC Dial Wheel Speed Controls, integrated dustproof, for popular used in portable power-tools such as: Rotary Hammers, Jig Saws, Reciprocating Saws, Polisher Grinders,Electric Mixers,ElectricRouters, Sanders, 100~150mm Angle Grinders,Die Grinders, etc.

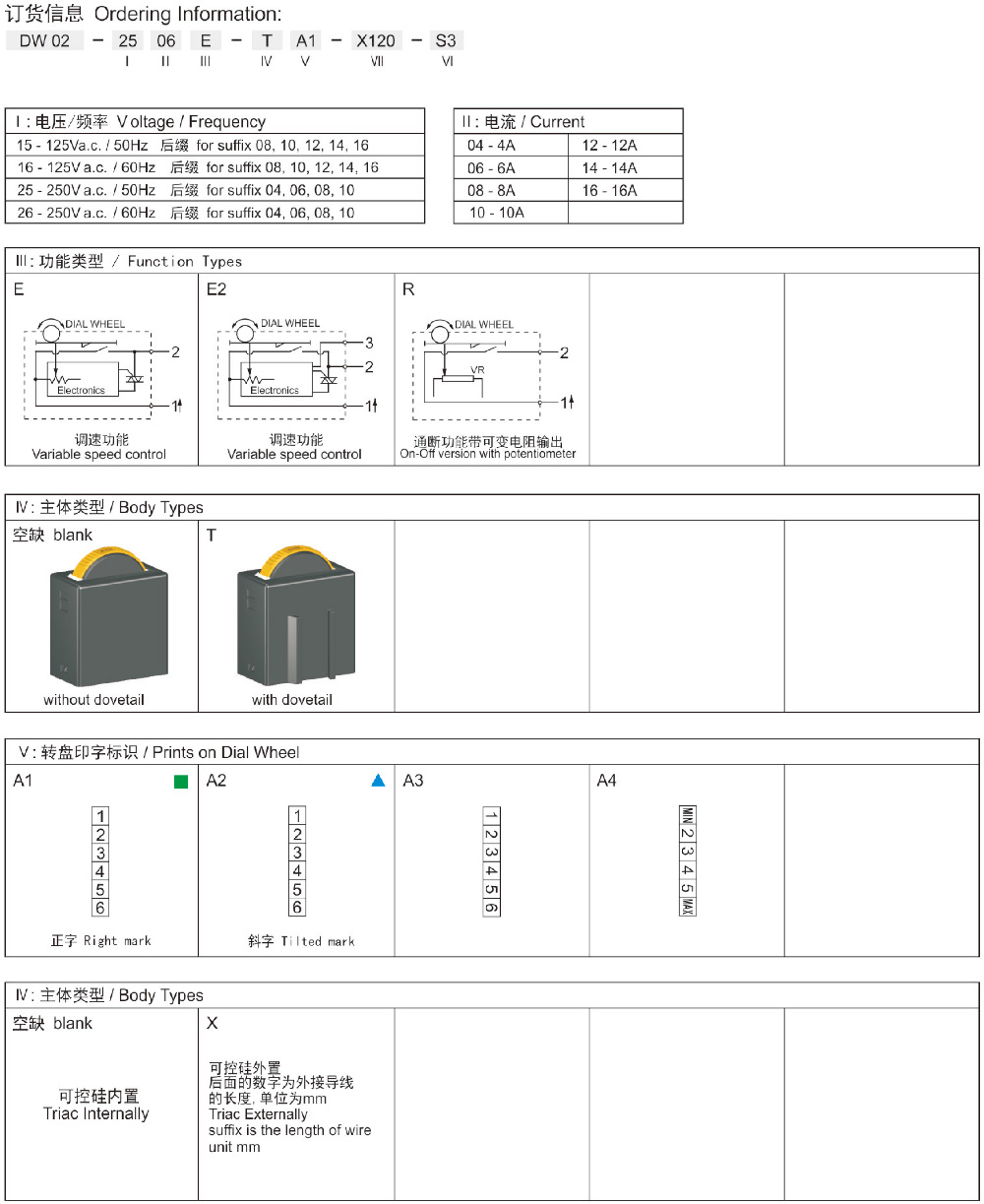

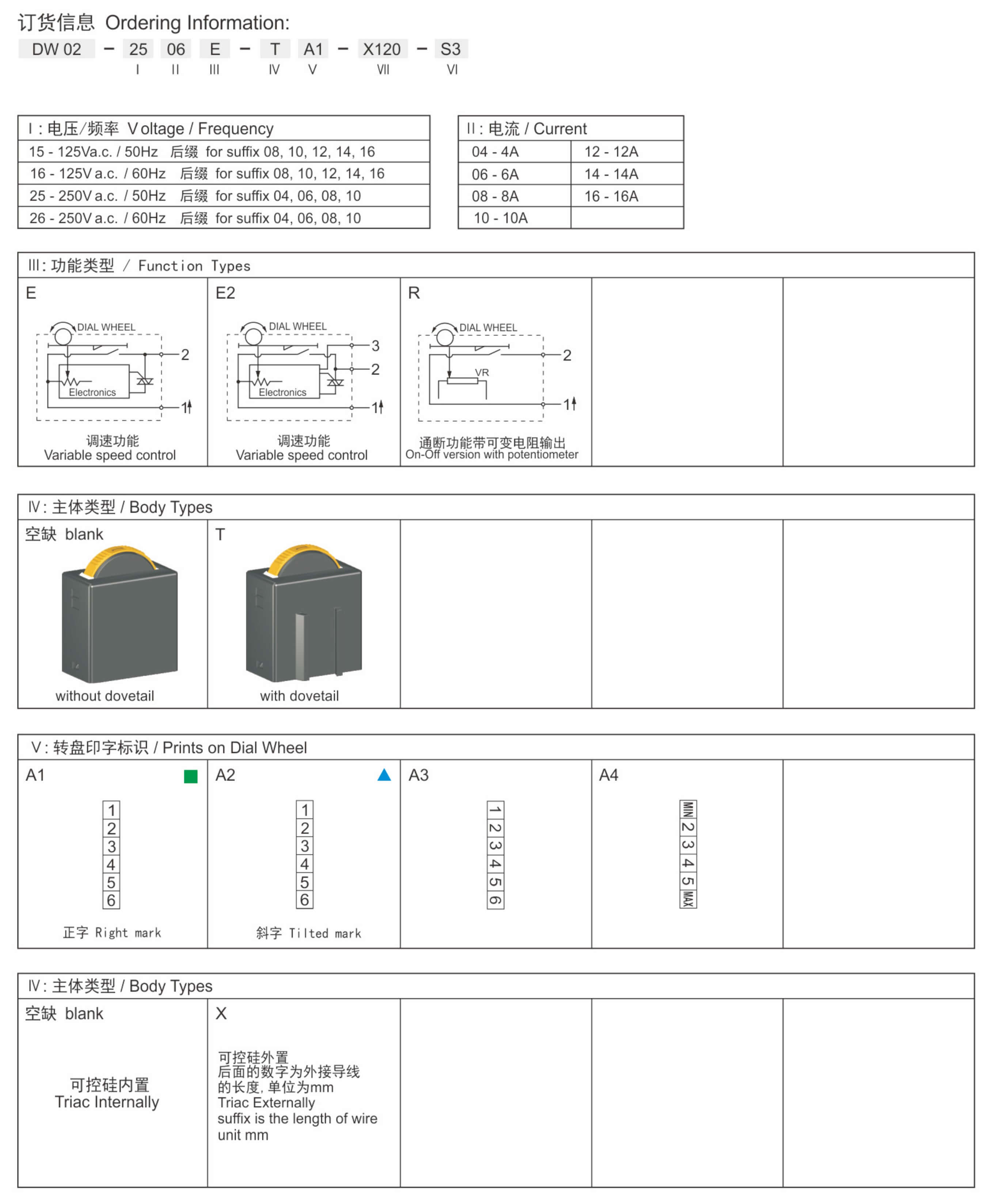

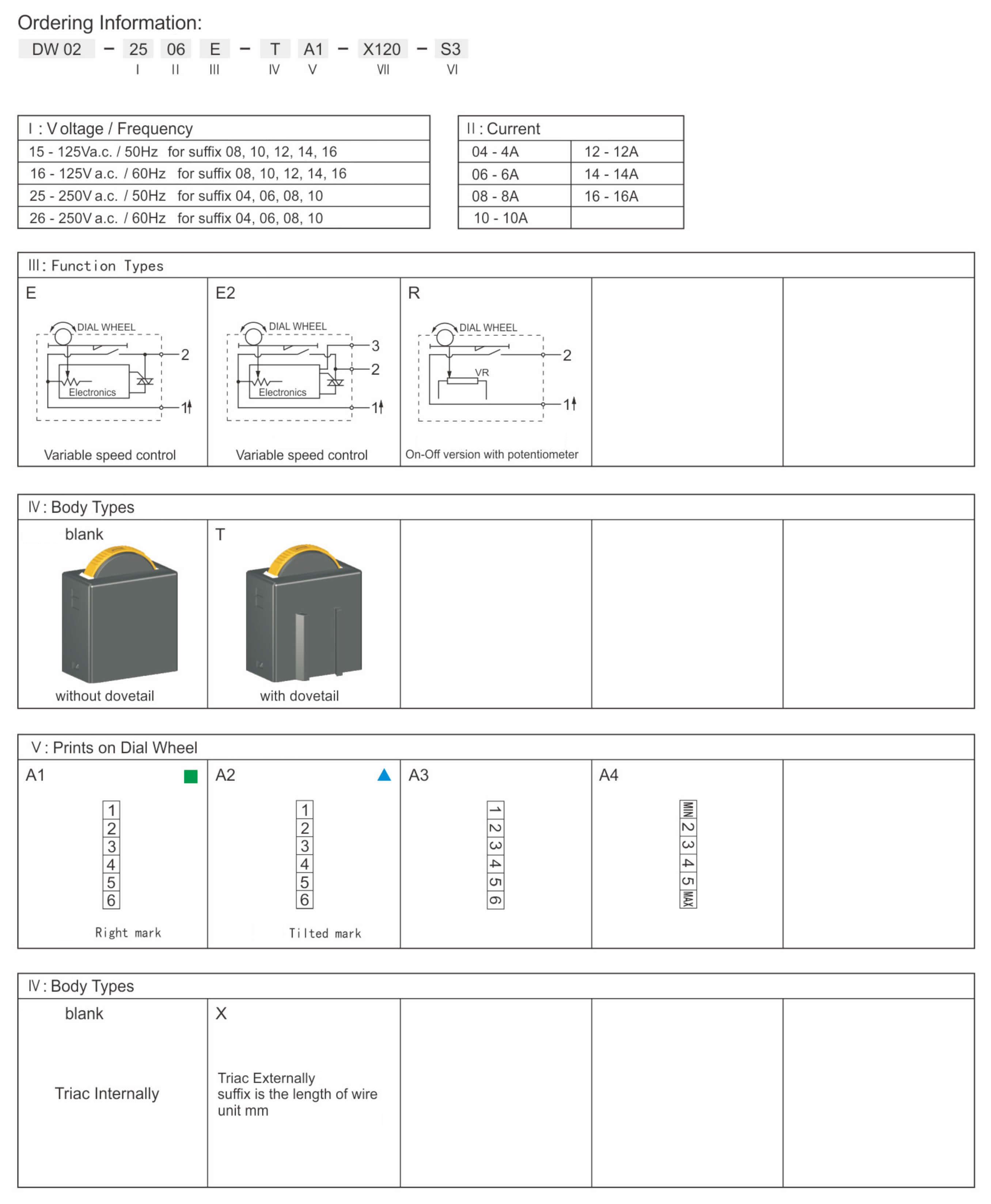

◆ Optional with the function as follows:
→ Full-wave speed control
→ Half-wave speed control
→ On-Off version with Passive linear potentiometer
◆ Optional with the accessor as follows:
→ Knob for adjusting start voltage

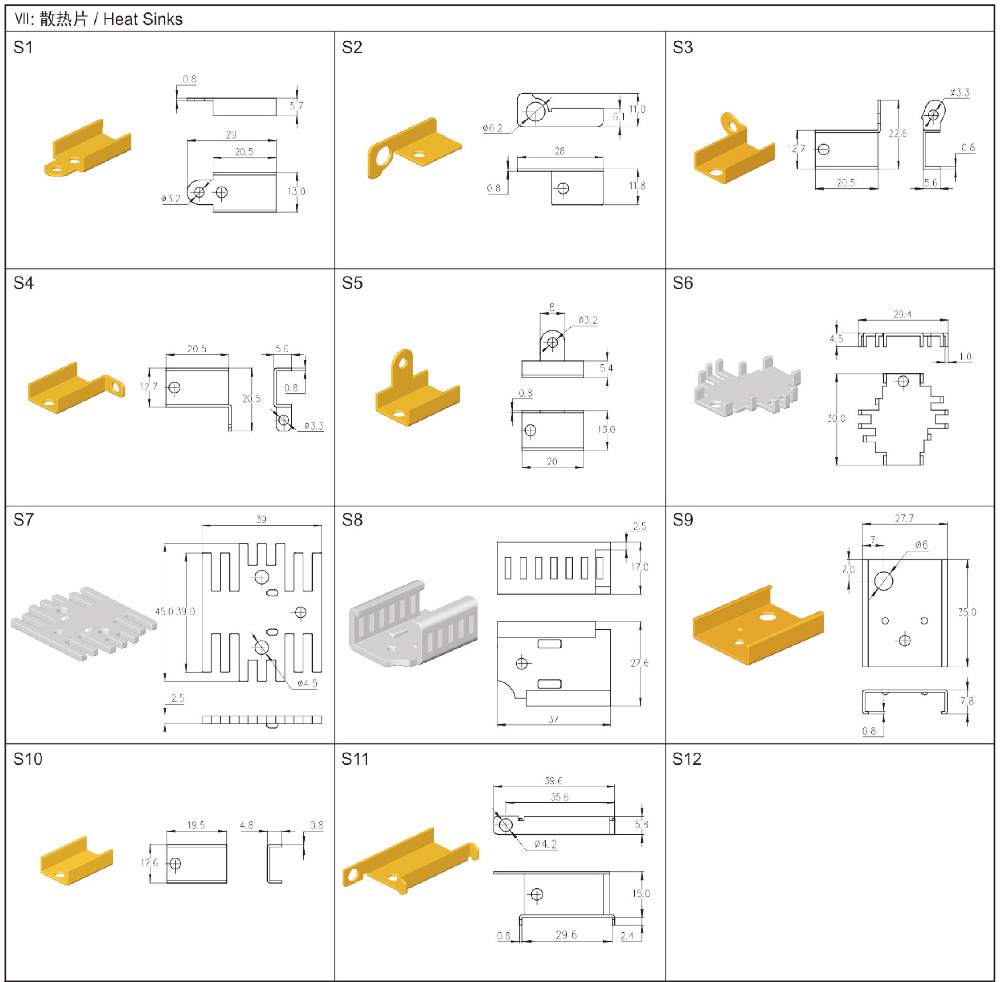

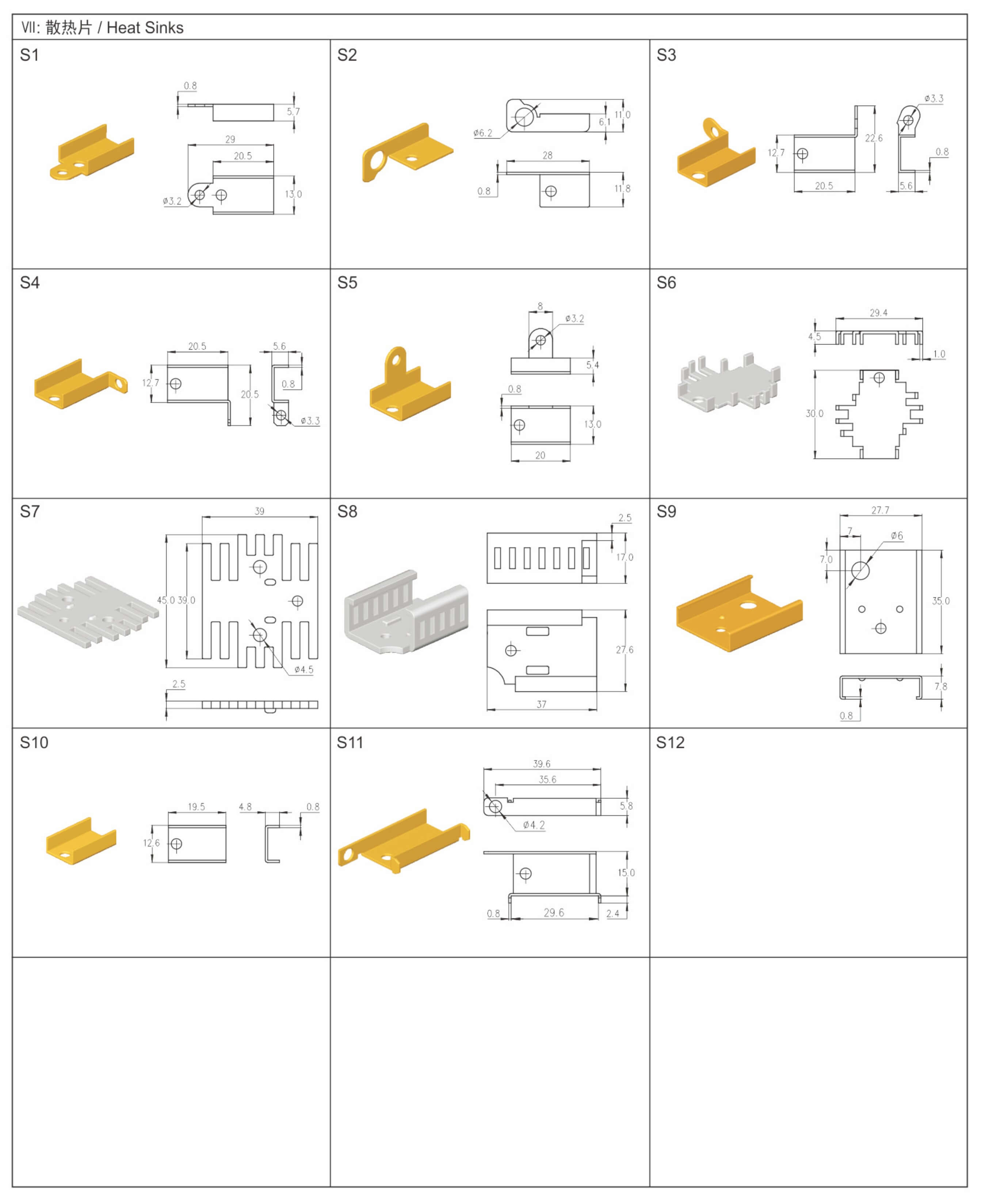

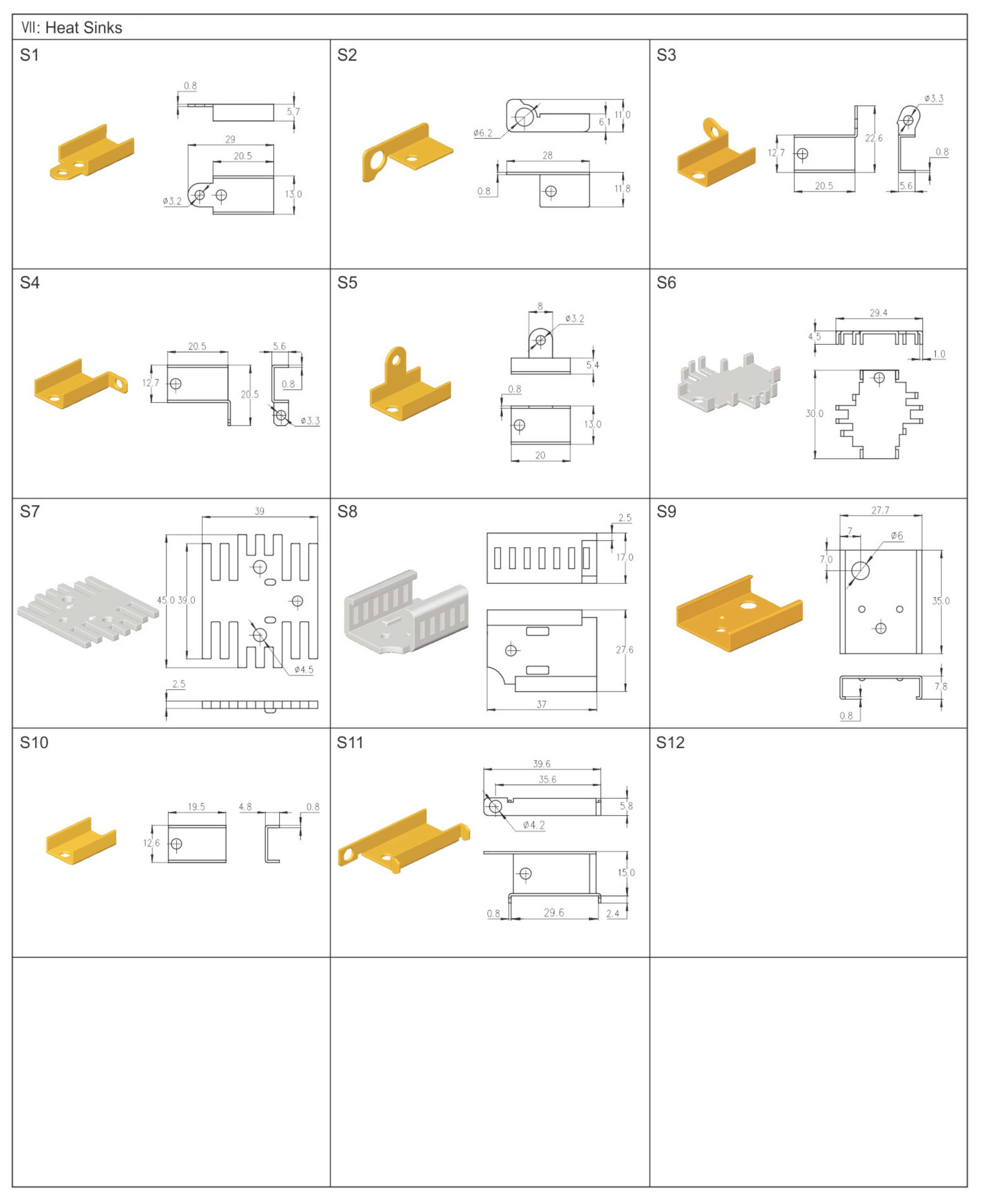

→ External Triac version for high currents additional with heat sink

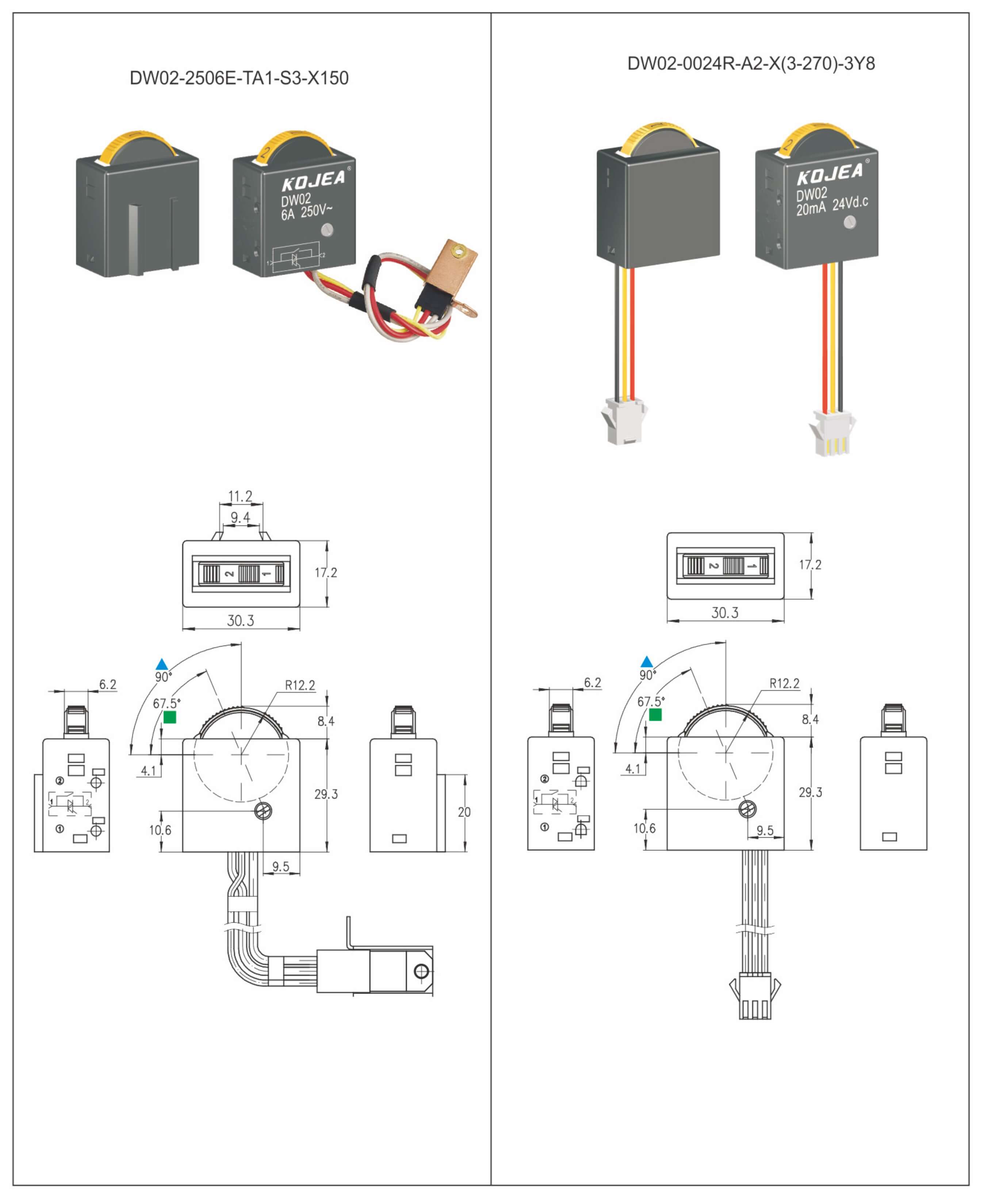

▲ Optional the angle between the printing of 1 and the up surface of shell is 67.5°
■ Optional the angle between the printing of 1 and the up surface of shell is 90°
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |

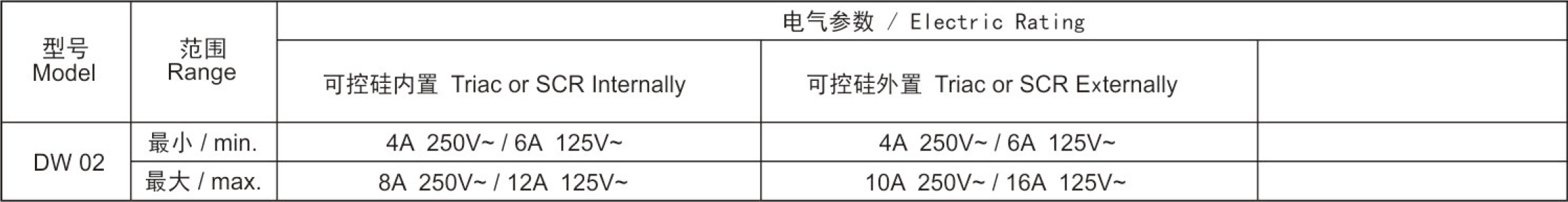

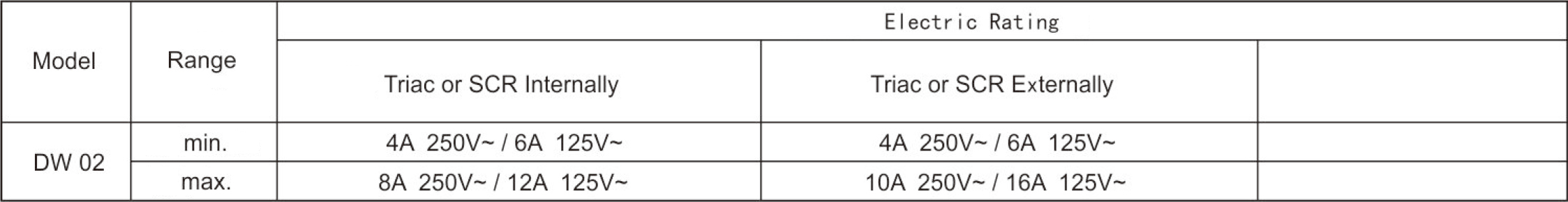

| → Max. current at 250V | 10A |
| → Max. current at 125V | 16A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side/Output side:
→ Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
