◆ DW01 series are one general type AC Dial Wheel Speed Controls, the mini-type of for popular used in portable power-tools such as: Rotary Hammer, Jig Saws, Reciprocating Saws,100mm and 125mm Angle Grinders, Polisher Grinders, Electric Routers, Sanders, Die Grinders, etc.

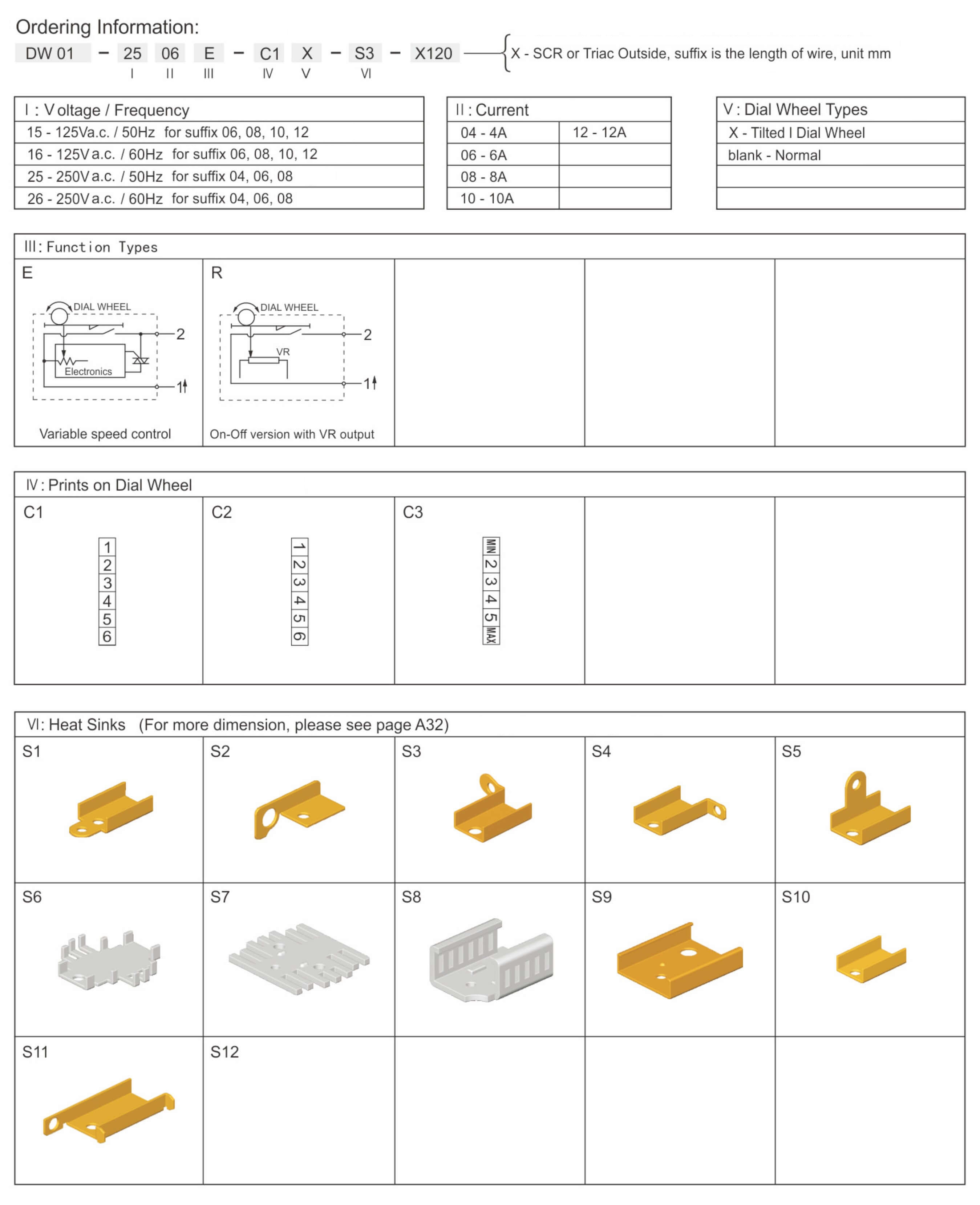

◆ Optional with the function as follows:
→ Full-wave speed control
→ Half-wave speed control
→ On-Off version with Passive linear potentiometer
◆ Optional with the accessor as follows:
→ Knob for adjusting start voltage
→ External Triac version for high currents additional with heat sink
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |

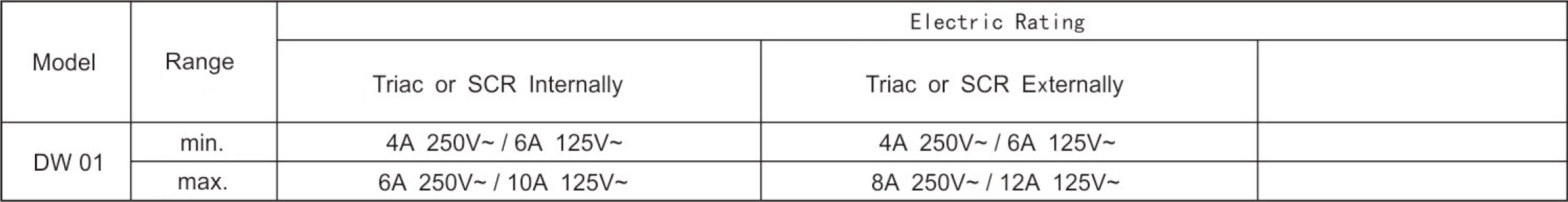

| → Max. current at 250V | 8A |
| → Max. current at 125V | 12A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side/Output side:
→ Wire terminal
