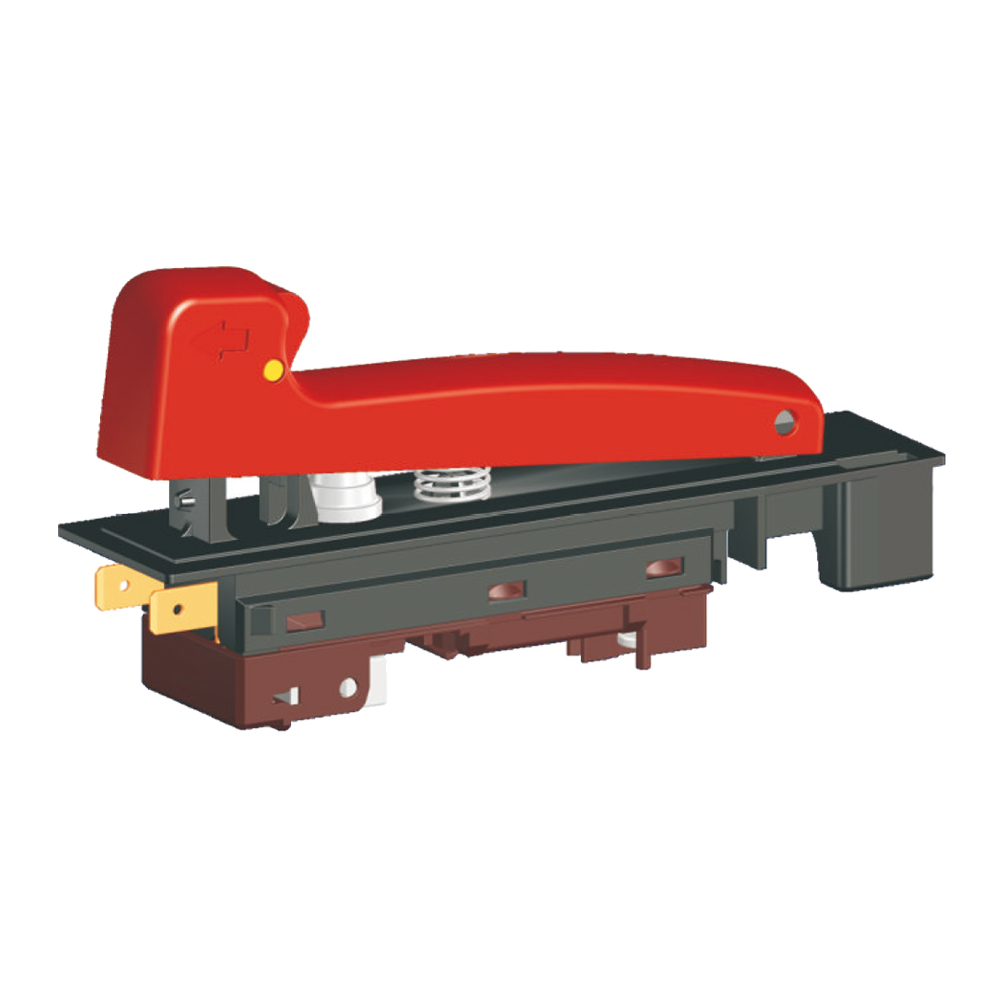

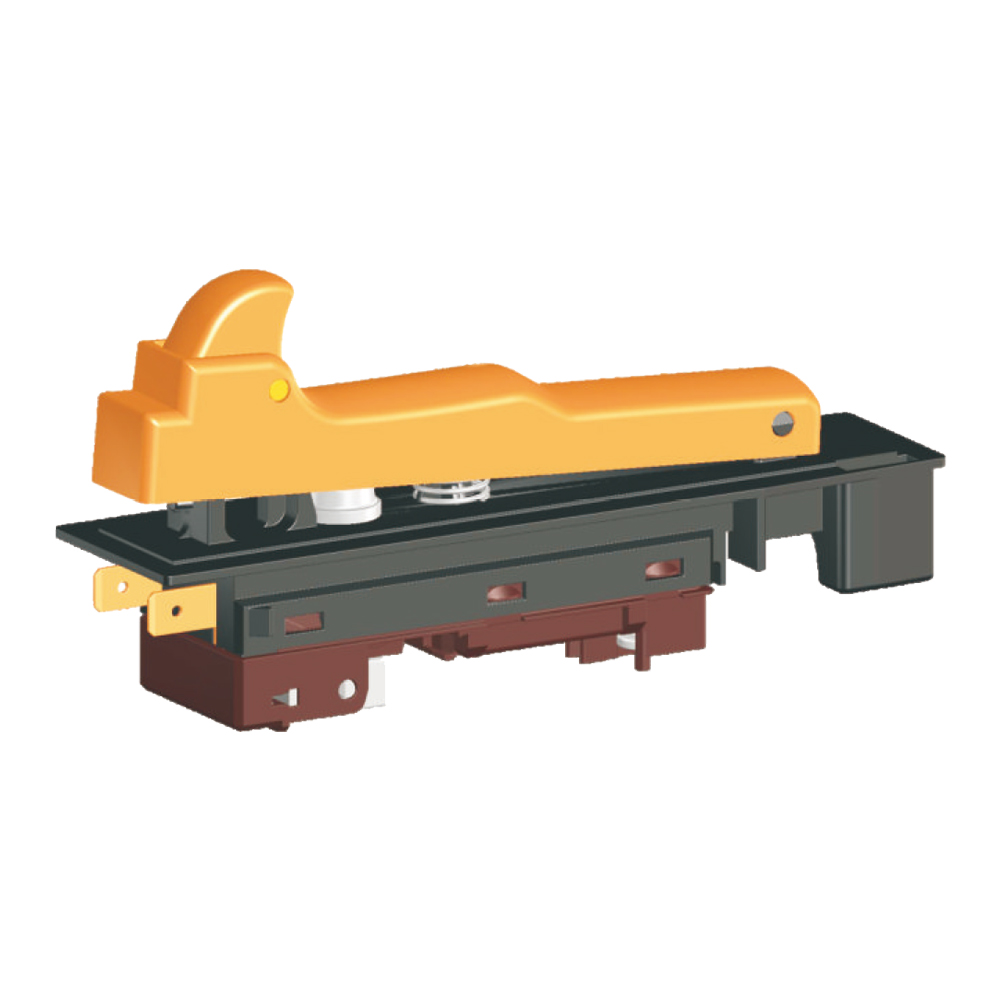

◆ TS12 series are special type high rated trigger switch, integrated dustproof, withsnap-action structure, for used in high rated power-tools such as: Cut-off Machines, Miter Saws, 180mm and 230mm Angle Grinders, Heavy Rotary Hammers, Heavy Demolition Hammers, etc. The body and trigger accept customize according to customer's request.

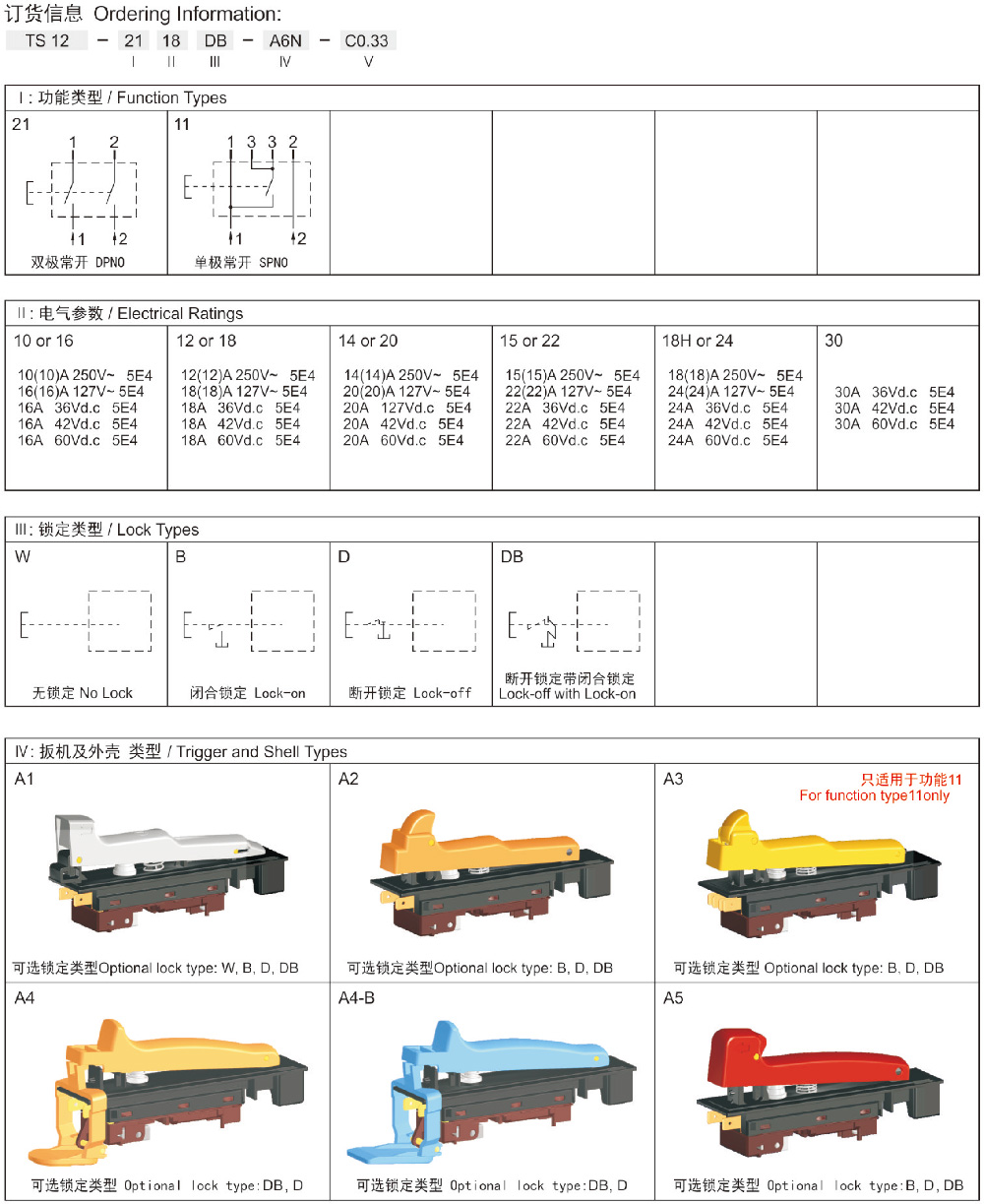

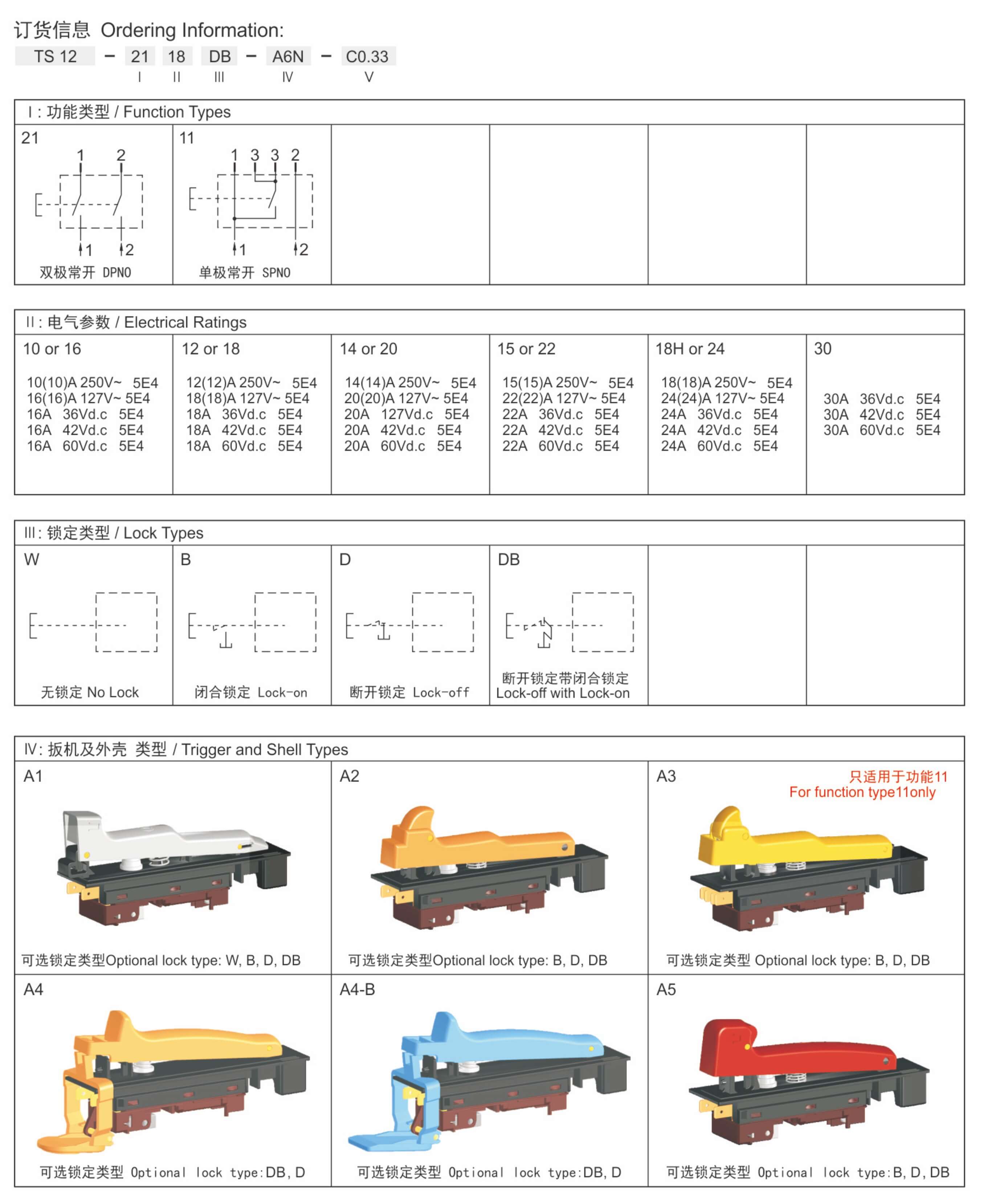

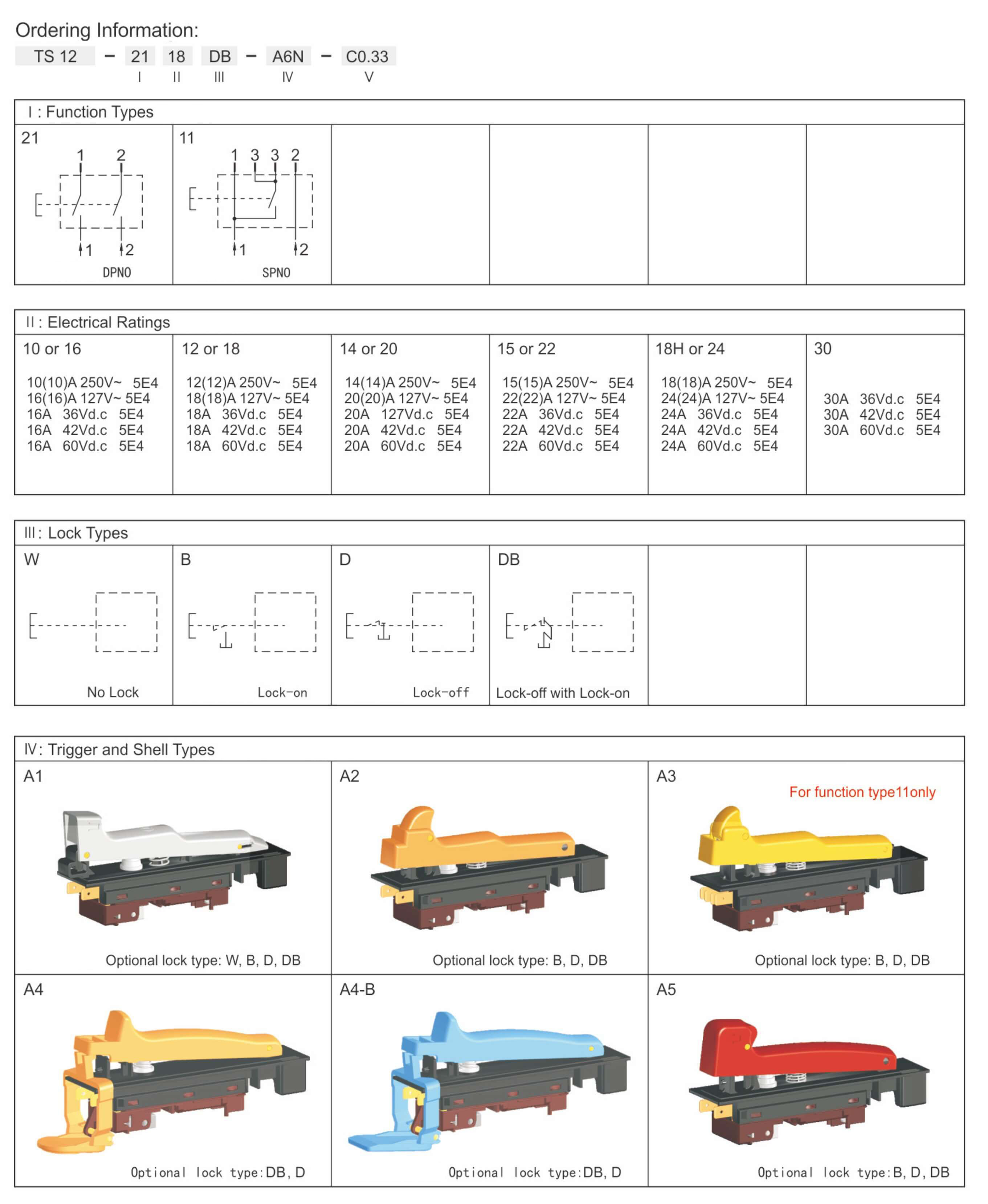

◆ Optional with the function as follows:
→ DPNO (Double Pole Normally Open)
→ SPNO (Single Pole Normally Open)
◆ Optional with Following lock types:
→ No Lock
→ Lock-on
→ Lock-off
→ Lock-off with Lock-on

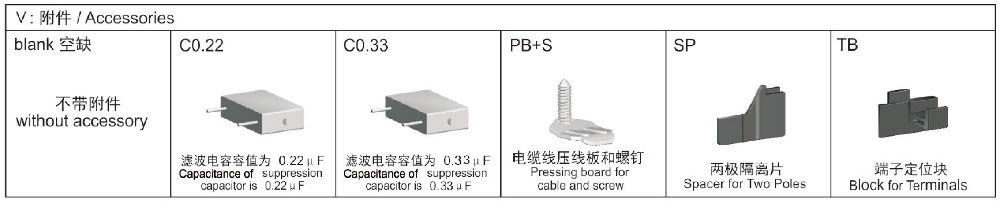

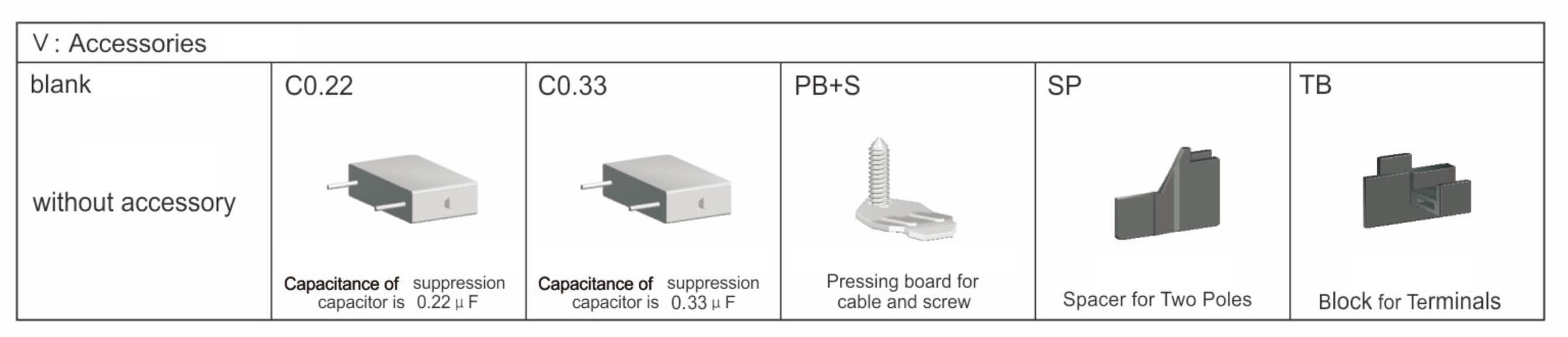

◆ Optional with the accessor as follows:
→ Suppression capacitor (commonly 0.22 or 0.33μF)
→ Pressing Board for Cable and Screw

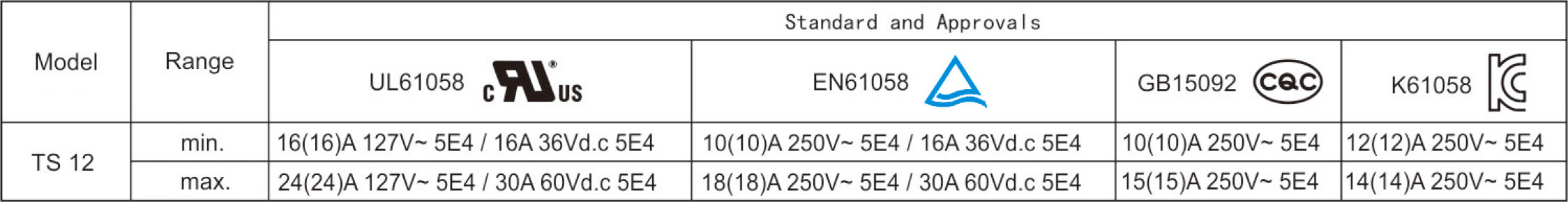

| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 120A |
| → Max. Inrush current at 127V | 144A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side:
→ 4×Pillar teminal Φ=3mm / Screw M4
◆ Output side:
→ Plug-in terminals 6.3×0.8mm
