TS11 TS Series

Product Description

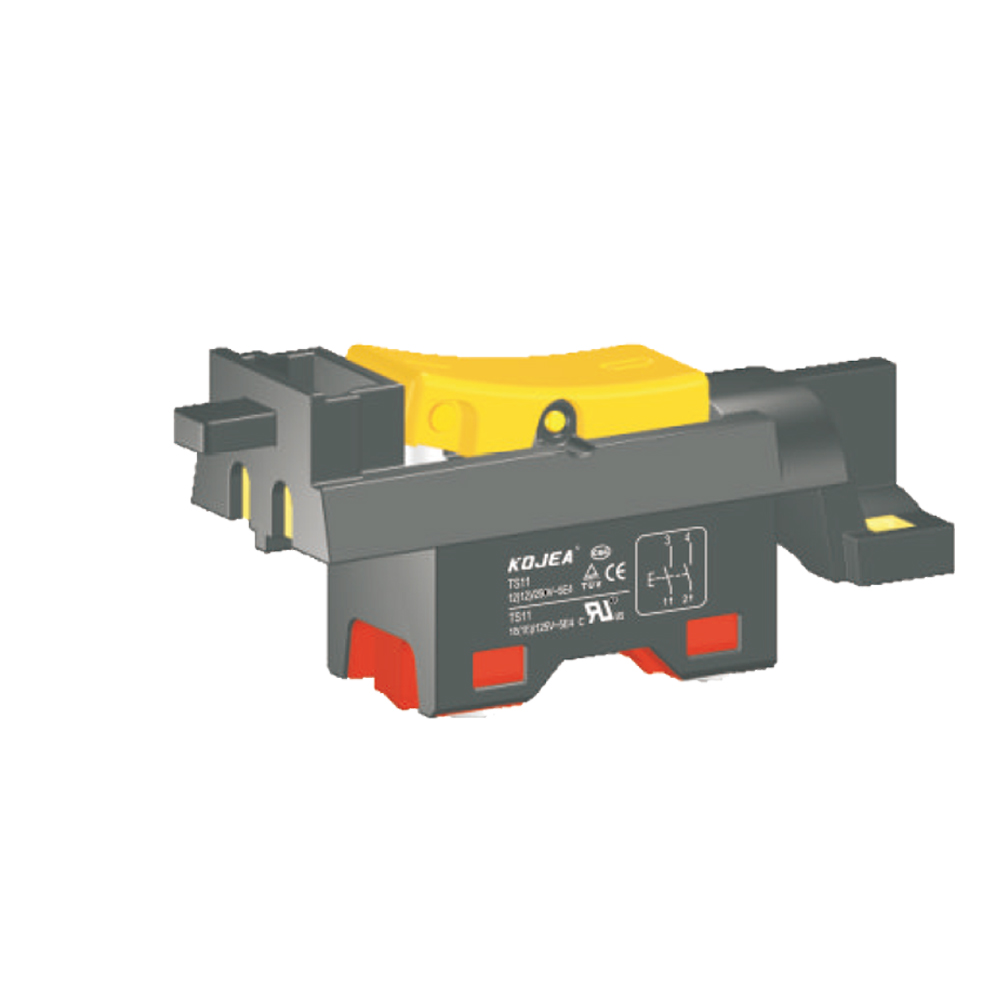

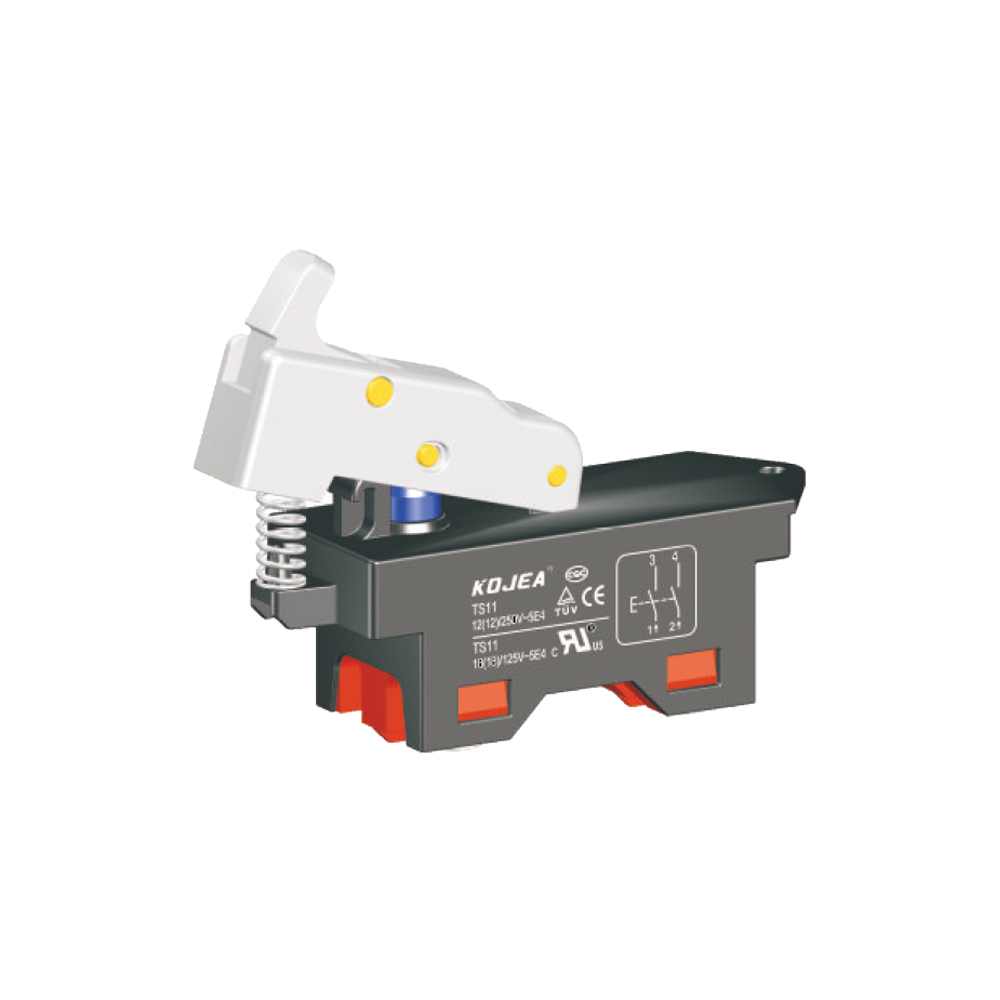

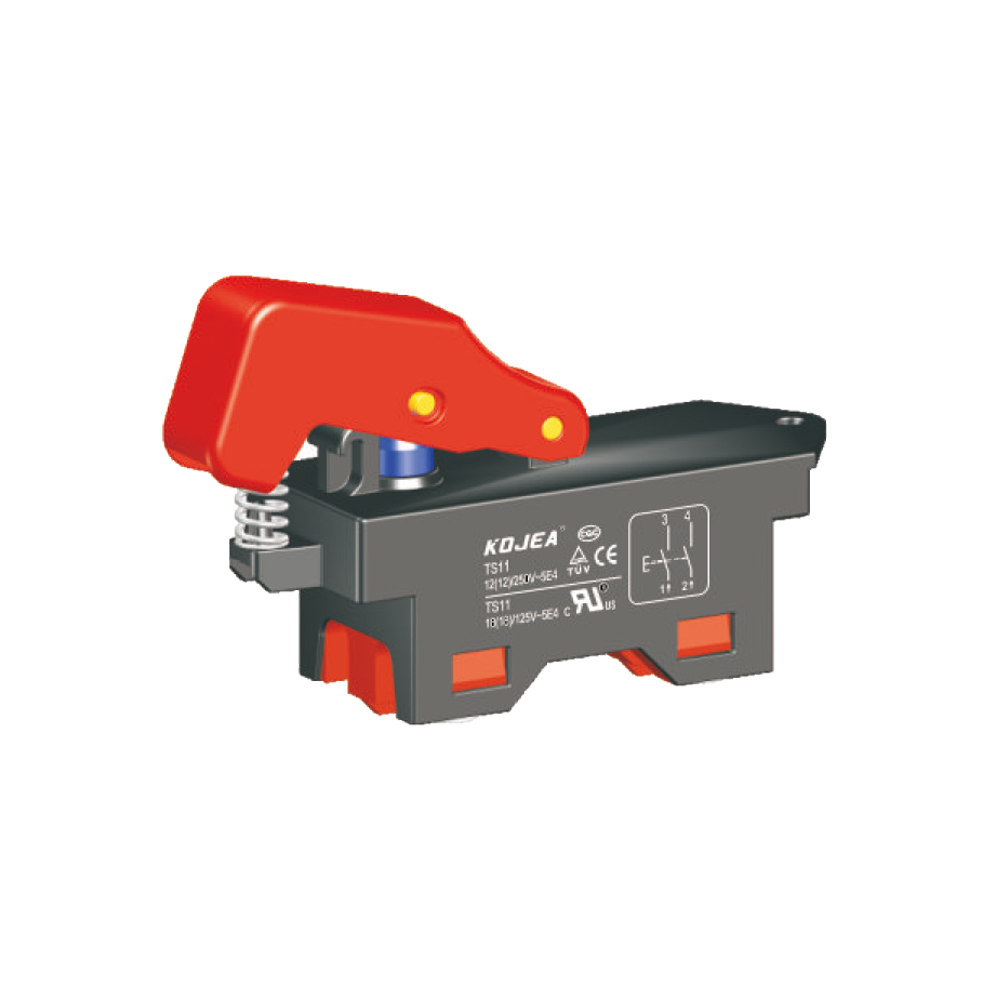

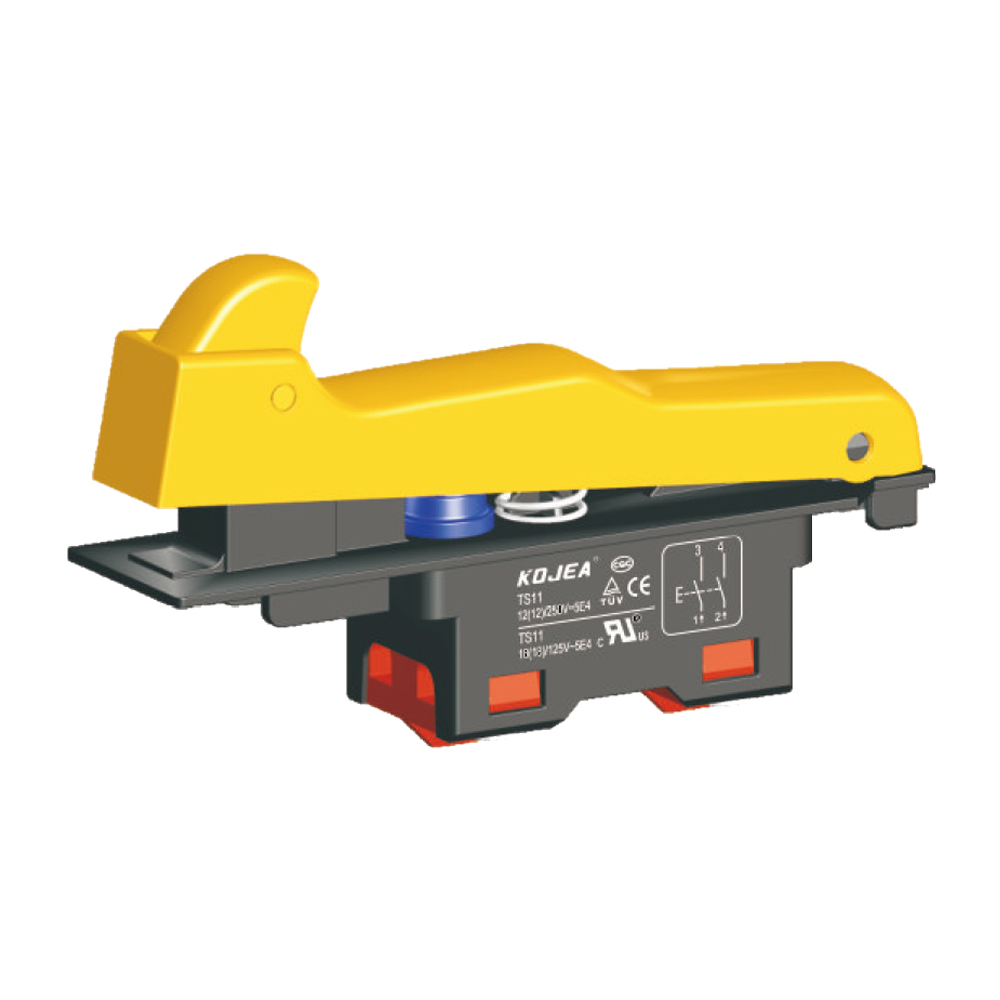

◆ TS11 series are one general type high rated trigger switch, integrated dustproof, withsnap-action structure, for used in high rated power-tools such as: Cut-off Machines, Miter Saws, 180mm and 230mm Angle Grinders, Heavy Rotary Hammers, Heavy Demolition Hammers, etc. The body and trigger accept customize according to customer's request.

Product Features

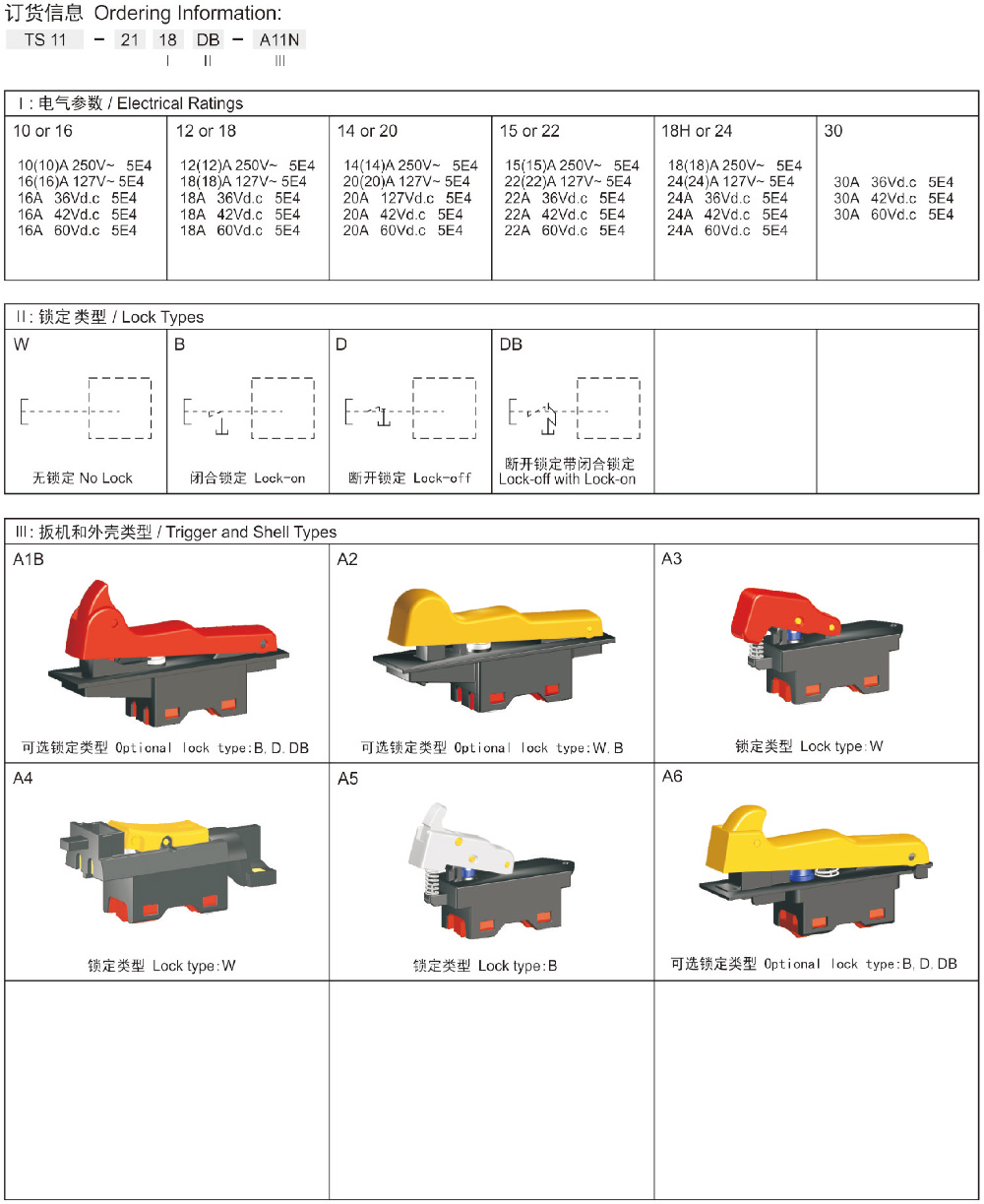

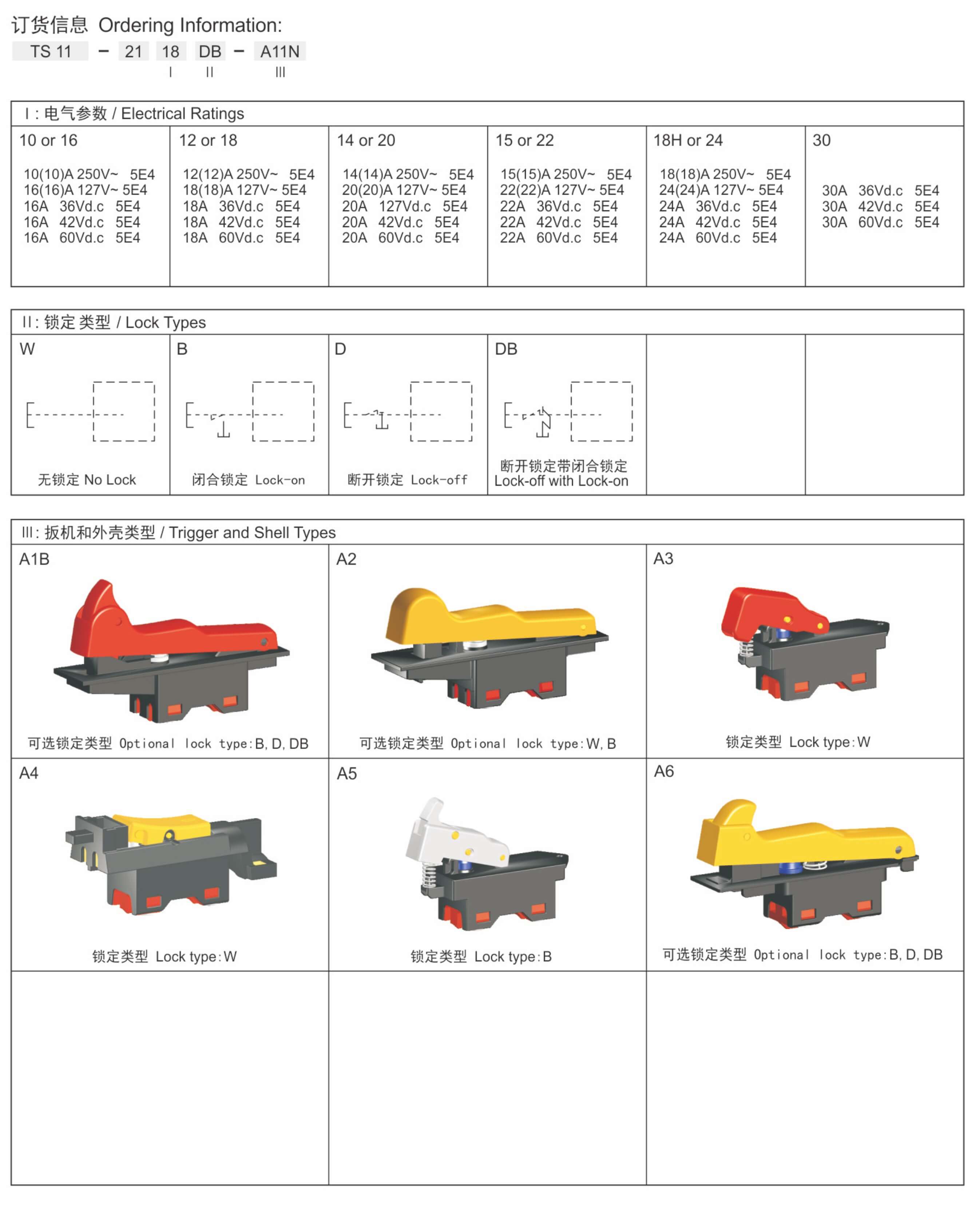

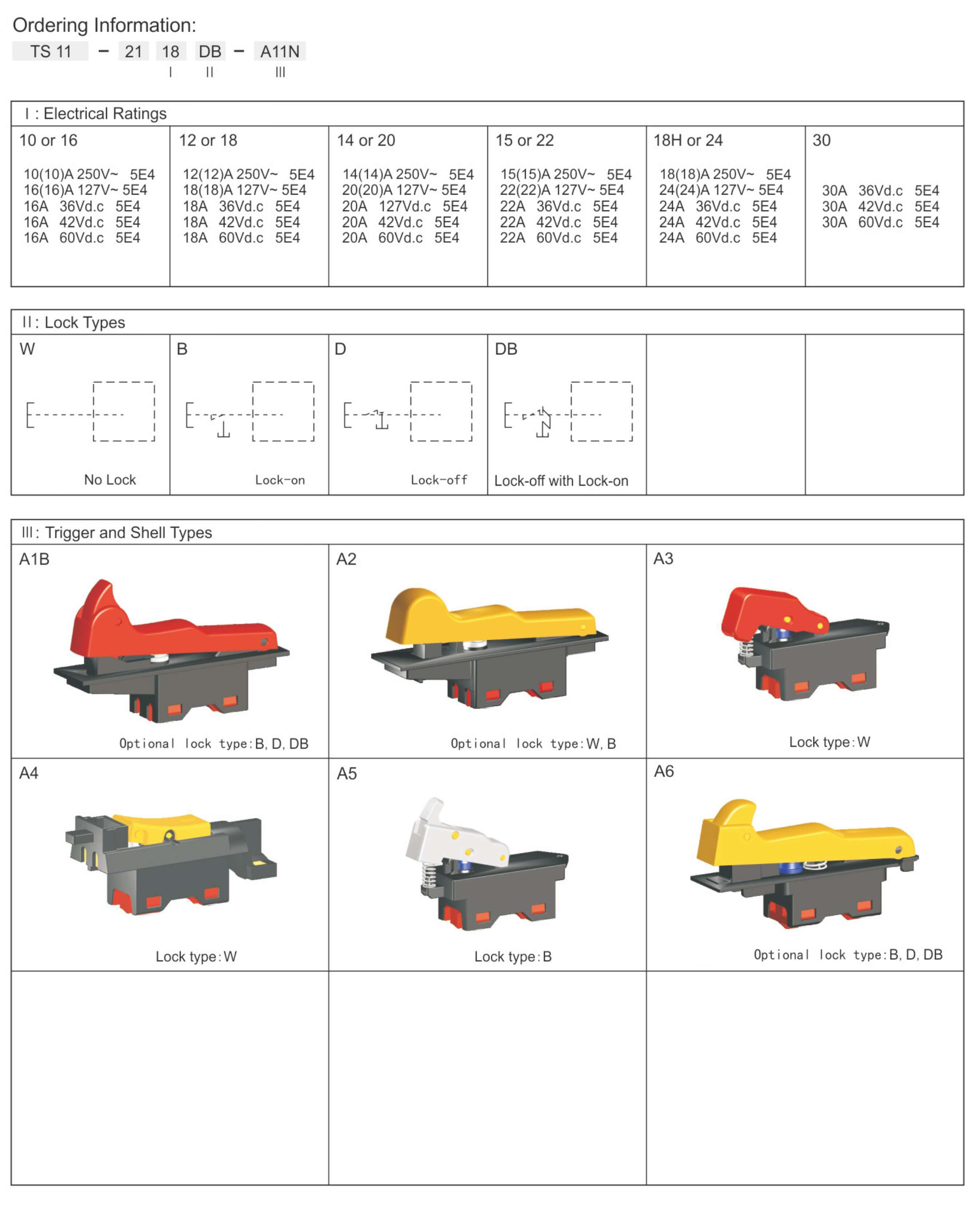

◆ Optional with Following lock types:

→ No Lock

→ Lock-on

→ Lock-off

→ Lock-off with Lock-on

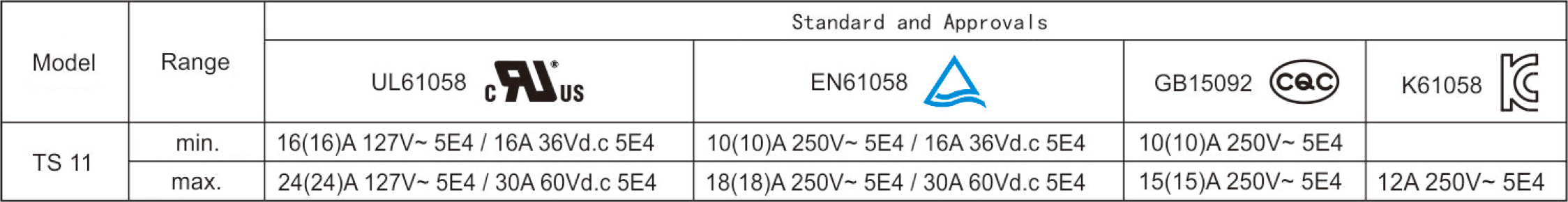

Technical Data

→ Mechanical life endurance	≥1E5
→ Electrical life endurance	≥5E4
→ Max. Inrush current at 250V	120A
→ Max. Inrush current at 127V	144A
→ Contact resistance	≤30m Ohm
→ Insulation resistance	≥7M Ohm
→ Dielectric strength of function	1500V
→ Dielectric strength of reinforced	3000V
→ Ambient temperature	0℃~55℃
→ Flammability	UL 94V-0
→ Protection type	IP40
→ Suitable for appliances of protection class II
