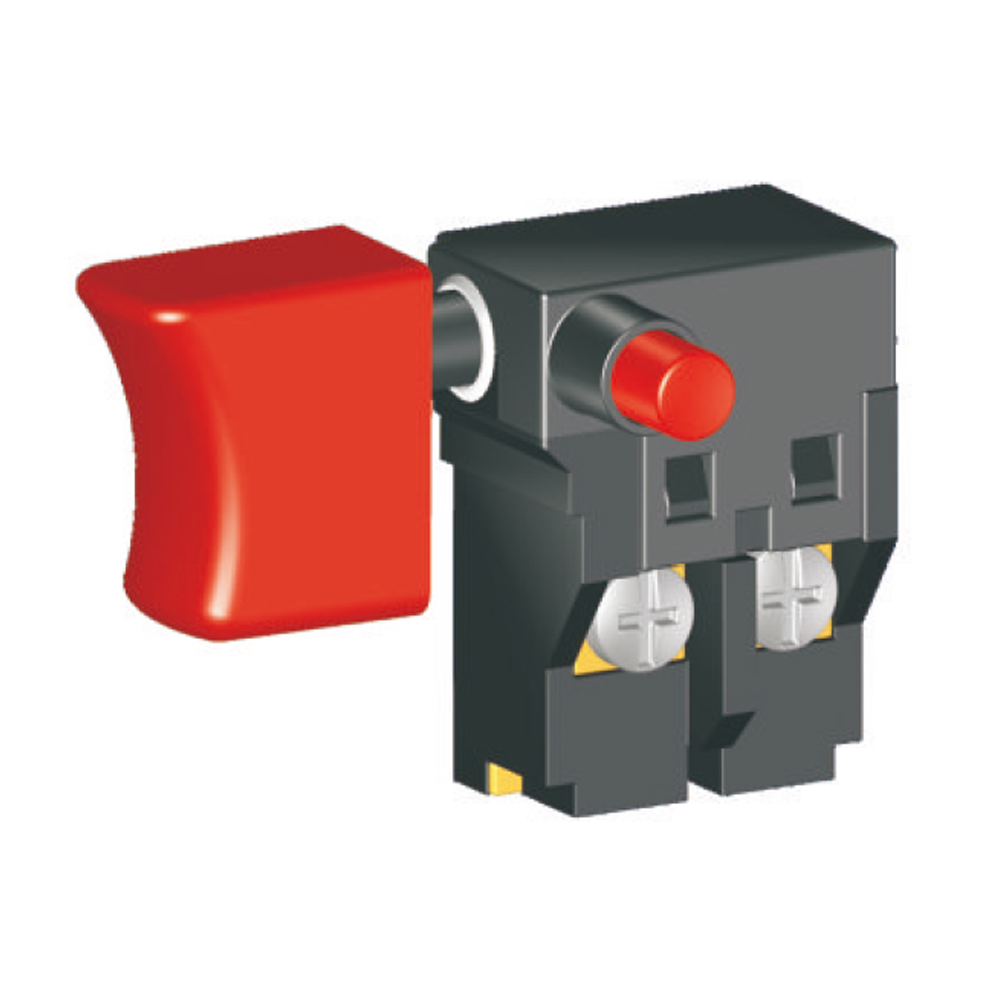

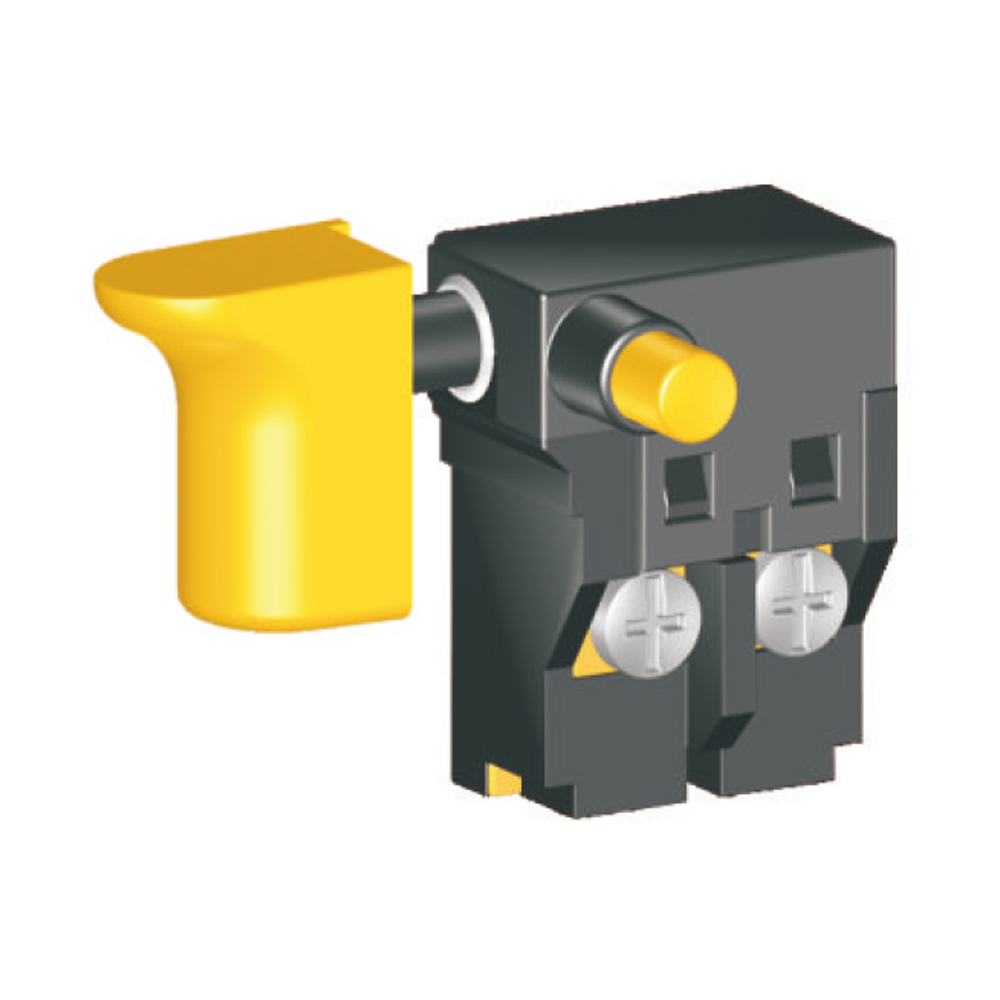

Product Description
◆ TS03 series are onegeneral type trigger switch, integrated dustproof, commonly for used in portable power tools such as: Electric Drills, Marble Cutters, Circular Saws, Electric Routers, Belt Sanders, Electric Planers, etc.
Product Features
◆ Optional with the function as follows:
→ SPNO (Single Pole Normally Open)
→ One Pole NO, the other Connected

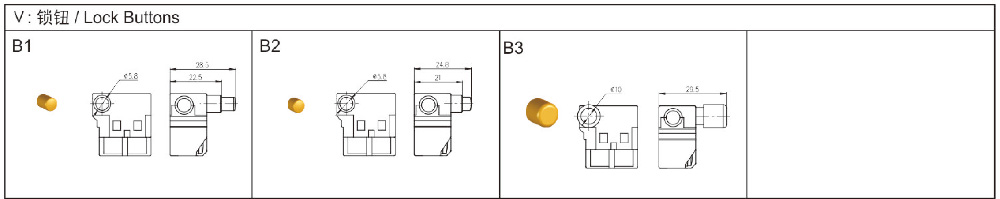

◆ Optional with Following lock types:
→ No Lock
→ Lock-on
→ Lock-off
Technical Data
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 60A |
| → Max. Inrush current at 125V | 96A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II |
Terminal Type
◆ Input side/Output side:
→ Screw terminals M3.5

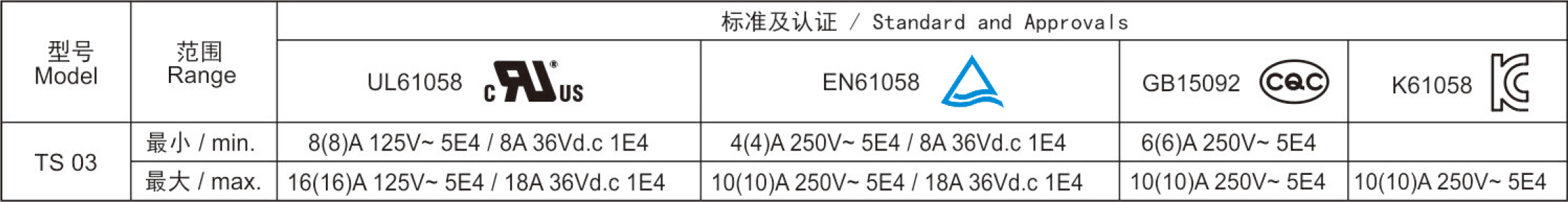

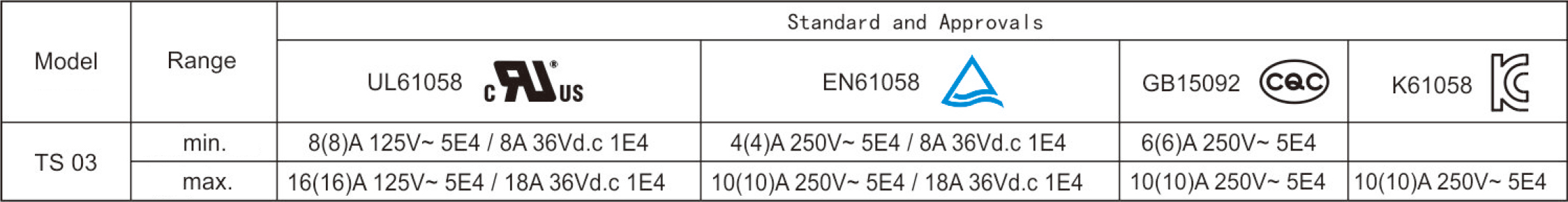

Electrical Parameters and Certifications

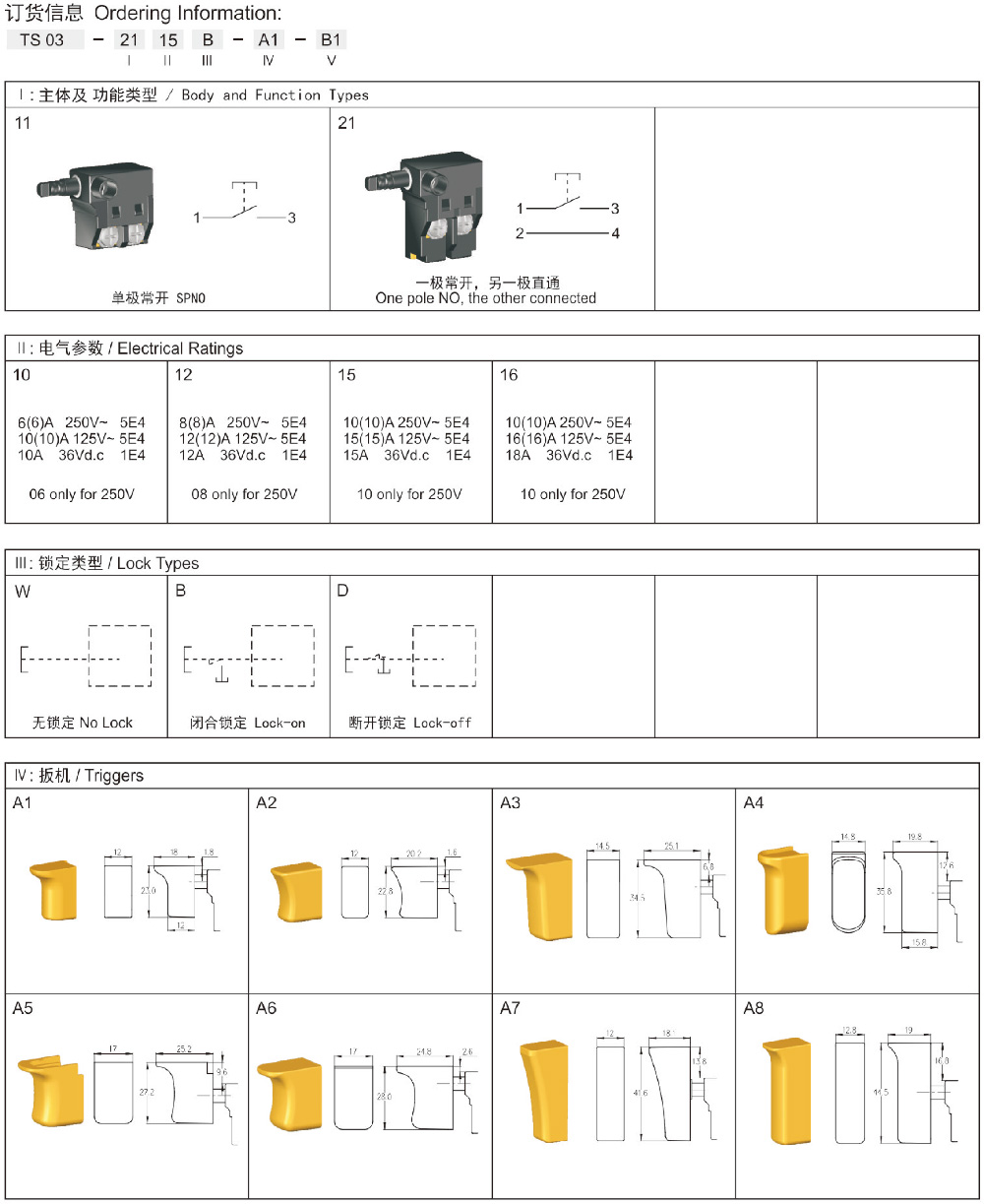

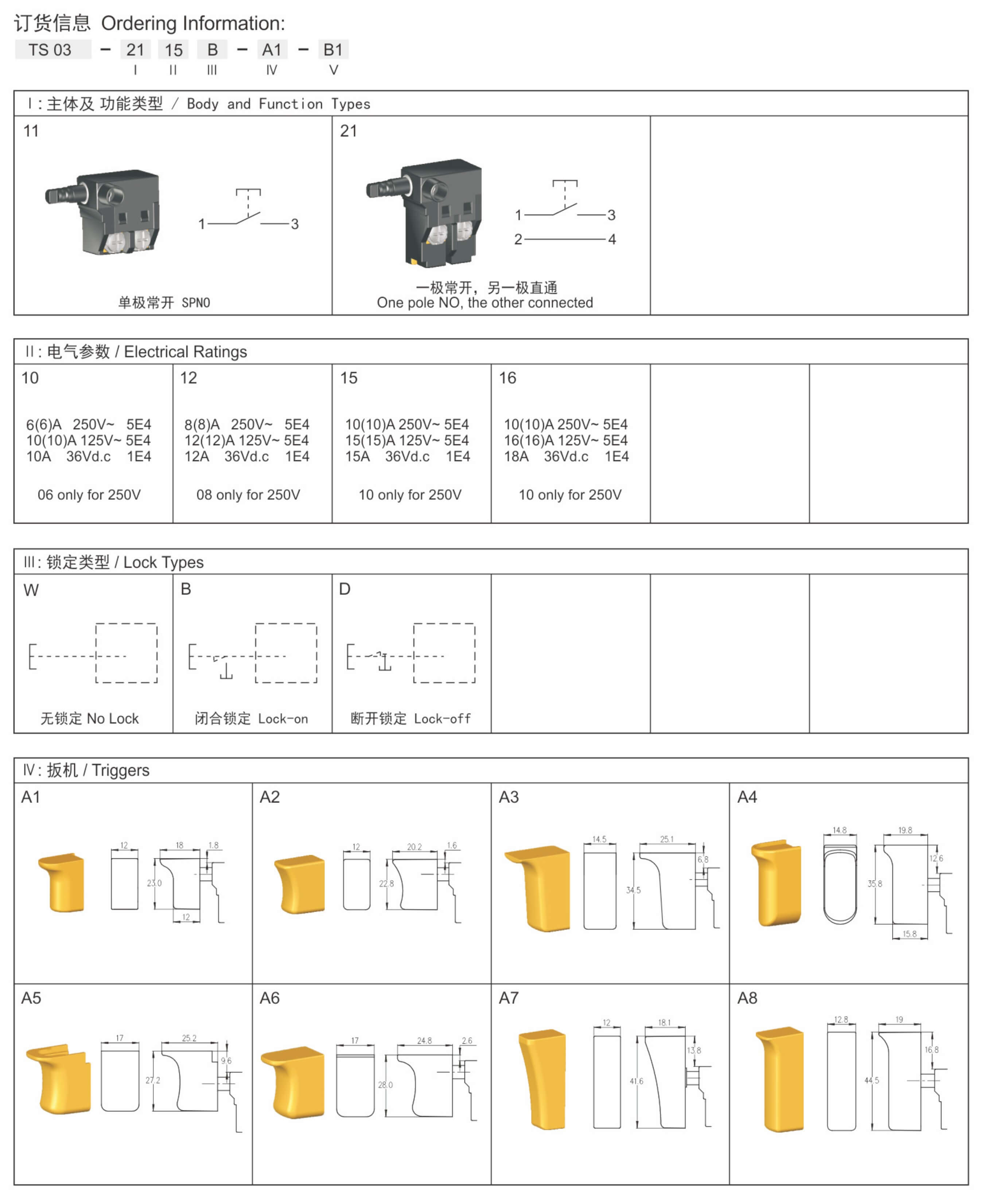

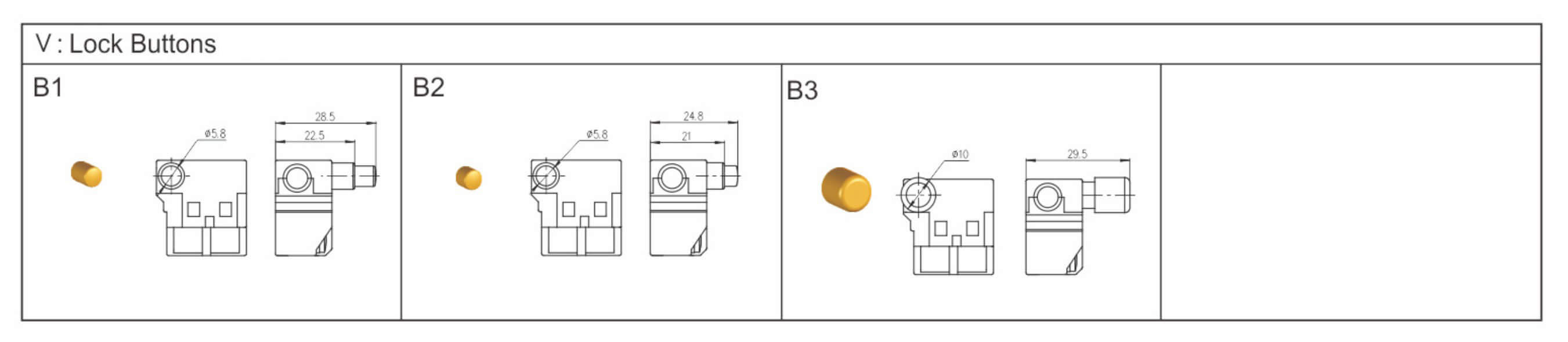

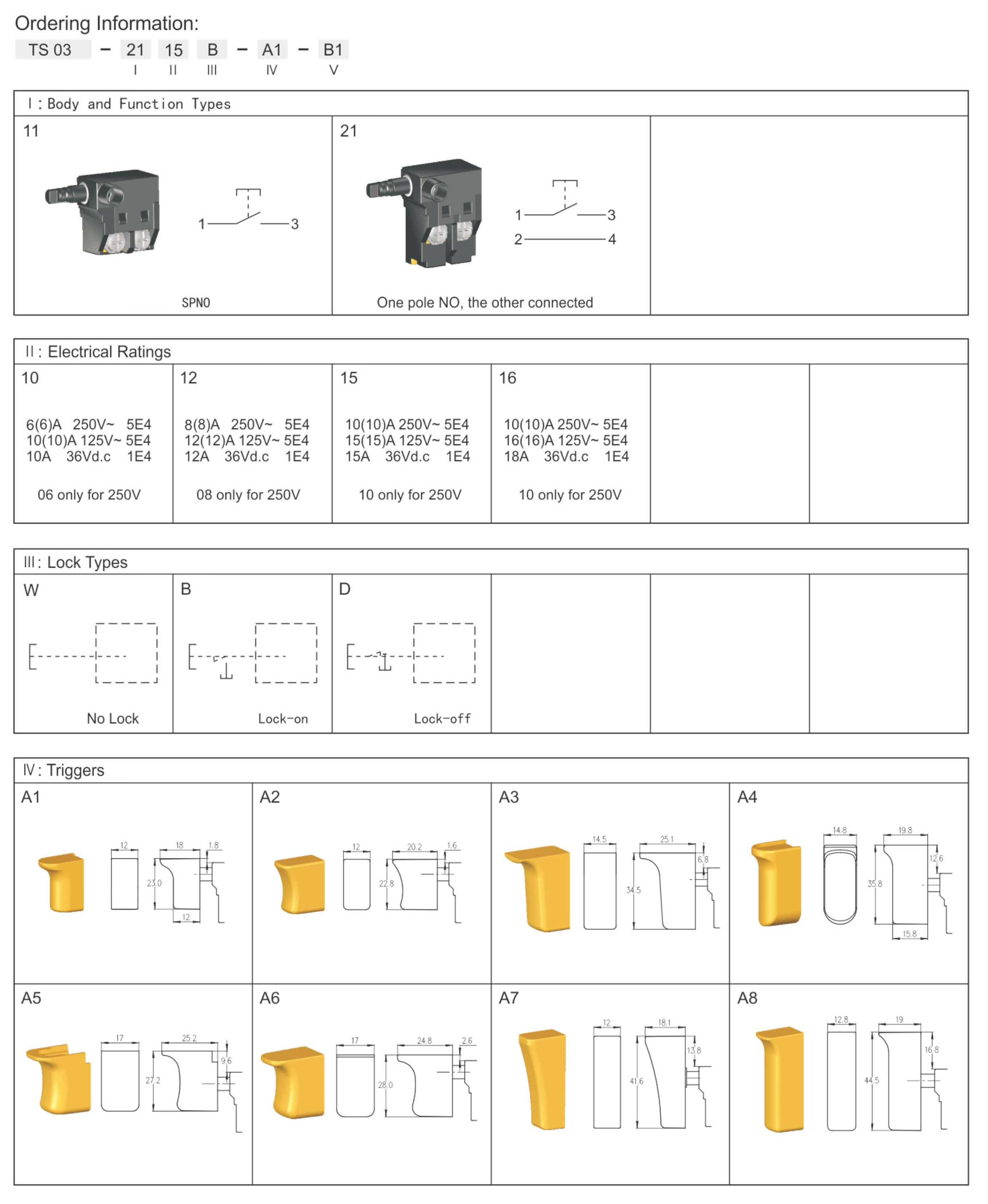

Ordering Information
