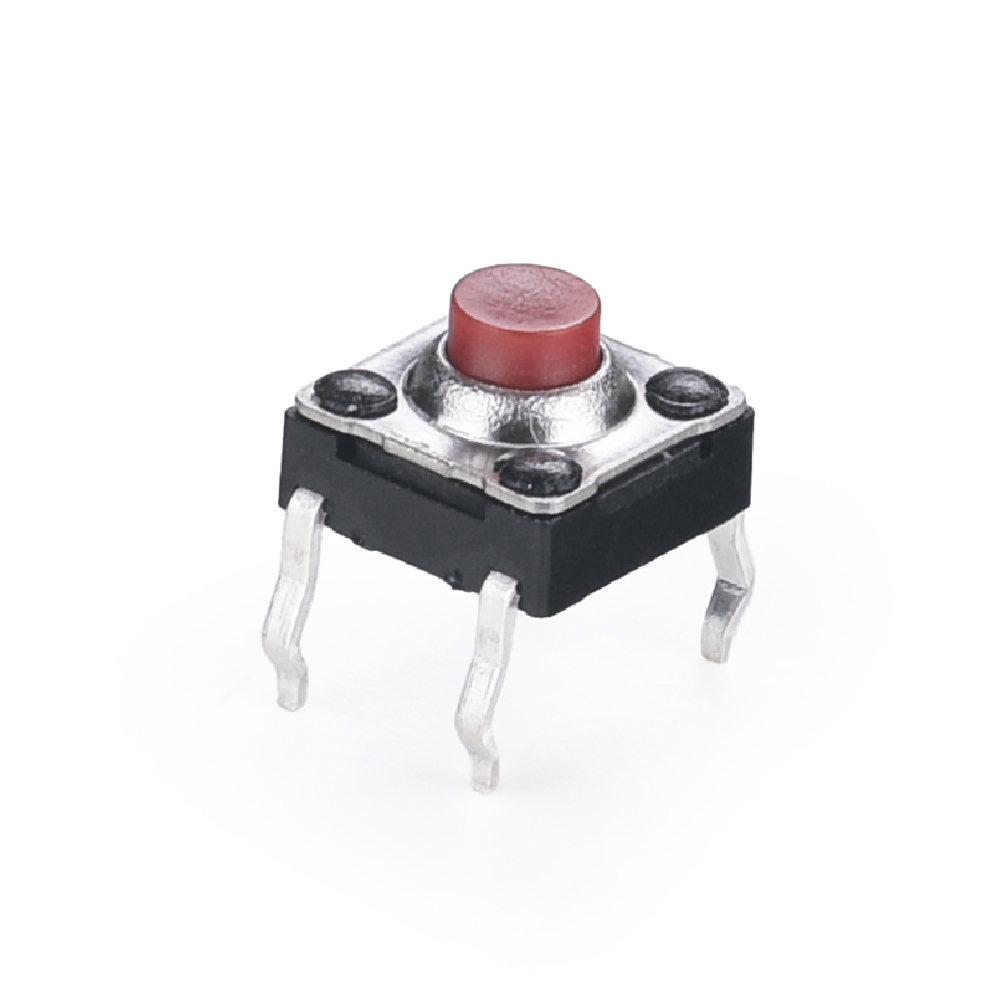

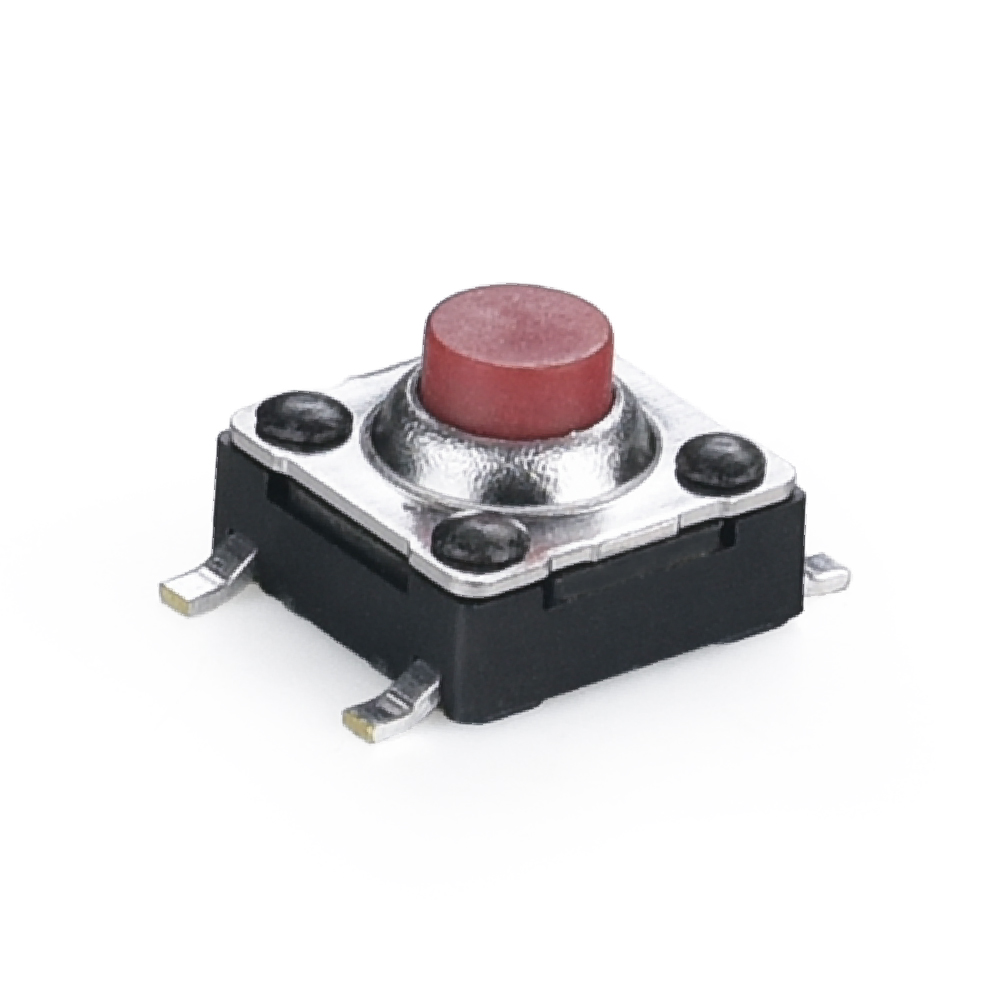

微型轻操作 (Microminiature, light operating)
手感良好且寿命长 (Good feeling and long life)

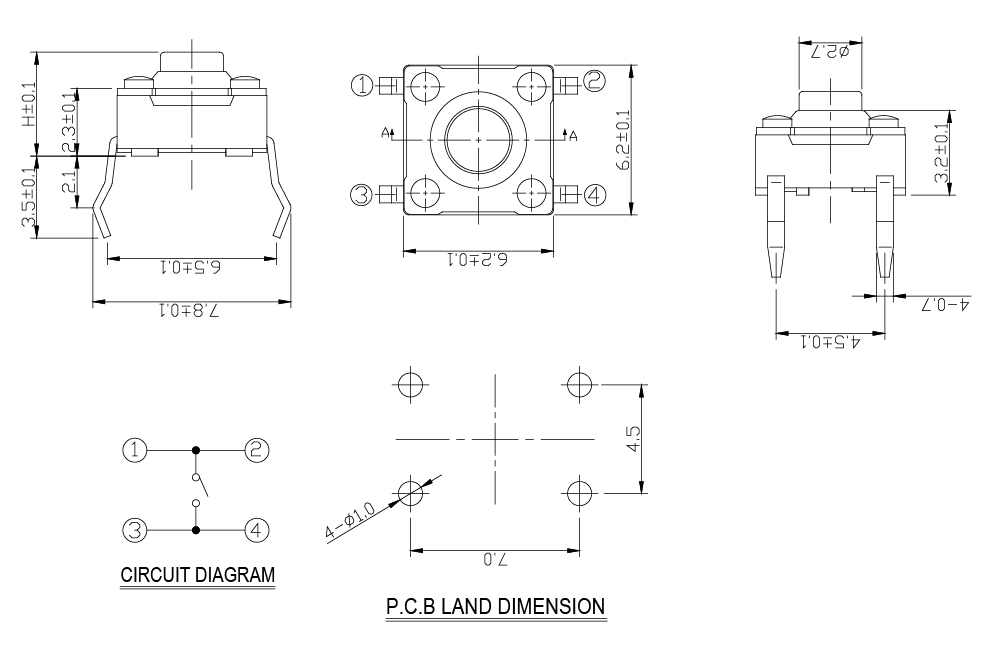

插入式设计，可直接安装在印刷电路板上，并具有良好的防静电性能 (Snap-in type, can be mounted directly on P.C. Board and good for electrostatic discharge)
拥有多种按钮形状和高度选择，适用于各种产品，安装方便 (It has a lot of choices for button shape and height and it is easily to install all kind of product)
可用于操作各种电子设备，例如电话、PDA、DVD、数码相机、音频设备、仪器仪表设备、自动化设备控制等。 (They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -20℃ to +70℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | DC 30V 100mA（最大） DC 1V 10mA（最小） |
| 绝缘电阻 Insulation resistance | 100MΩ min. @ DC 100V, 1 min | |
| 介电强度 Dielectric strength | AC 250V (50/60Hz) for 1 min., no breakdown | |
| 接触电阻 Contact resistance | 100mΩ max. @ 1kHz small-current | |
| 耐用性 Durability | 寿命 Lifetime | 100,000cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | 220±30gf |
| 行程 Travel | 0.25 ± 0.10 mm | |
