◆ AT01 系列是一款通用型扳机电子调速开关，集成防尘功能，广泛应用于各类手持式电动工具，如：电钻，冲击钻，电锤，曲线锯，往复锯，搅拌器，抛光机，砂光机等.开关有多种换向盒可以选择，扳机，锁钮和拨杆可根据客户要求进行定制.
◆ AT01 series are general type multi-speed trigger switches with by-passcontact, integrated dustproof, are popular for used in portable power-tools such as: Electric Drills, Impact Drills, Jig Saws, Electric Hammers, Reciprocating Saws, Grinder Polishers, Sanders, etc.

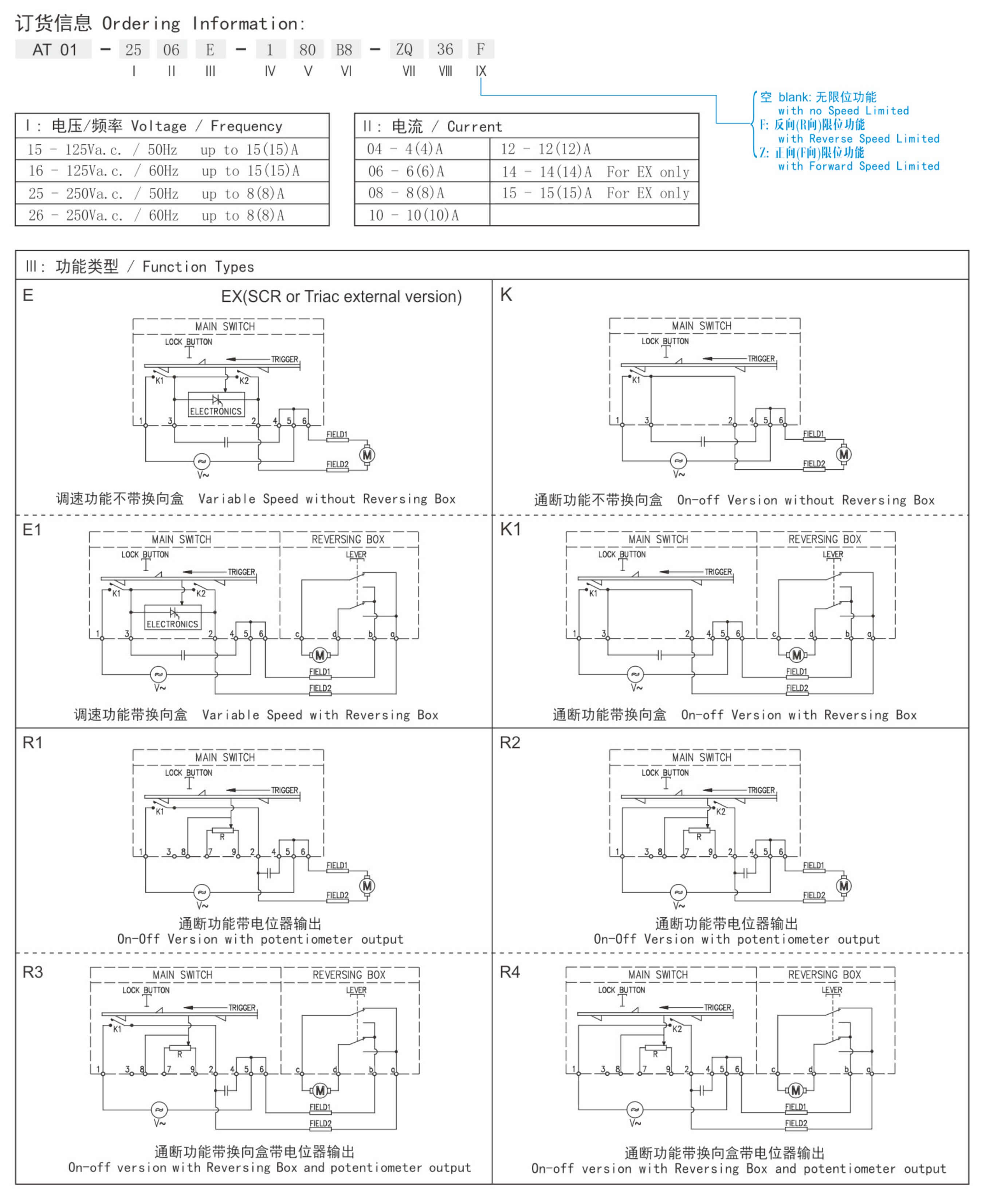

◆ 可选带以下功能： Optional with the function as follows:
→ 全波调速 Full-wave speed control
→ 半波调速 Half-wave speed control
→ 通断功能 On-Off version
→ 通断功能带电位器输出 On-Off with Passive linear potentiometer
→ 机械正转或反转限速 Speed limited in forward or reverse
→ 内部电子正转或反转限速 Electronics Speed limited internal in forward or reverse
◆ 可选带以下锁定类型： Optional with Following lock types:
→ 无锁 No Lock
→ 闭合锁定（自锁） Lock-on
→ 断开锁定（反自锁） Lock-off
→ 断开锁定带闭合锁定（反自锁带自锁） Lock-off with Lock-on
◆ 可选带以下附件： Optional with the accessor as follows:
→ 初始电压微调节旋钮 Knob for adjusting start voltage
→ 扳机旋钮 Dial wheel of Trigger
→ 包软胶扳机 Rubberized Trigger (overmolding)
→ 双向可控硅或晶闸管外置用导线连接，并附加散热片 Triac or SCR connected to PCB externally, optional with heat-sink
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端 Input side:
→ 接线柱端子 Pillar teminal Φ=3mm
◆ 输出端 Output side:
→ 插入式端子 可插入沾锡导线，带插片端子导线或铜包头导线 Push-in terminals for soldered strands, strands with end sleeves or strands with end claws
