Smaller size makes better heat convection during PC board wave soldering;
Top tape sealed to withstand wave soldering,board washing;
All plastics are UL 94V-0 grade fire retardant;
Gold plated contact to ensure low contact resistance and long mechanical life.
Hand-held electronic devices, such as PDA,MP3,radios;
Portable computer and electronic devices,such as notebook,computers;
Instrumentation and industrial control products,such as CDROM, coin changers
| Items | Standard | |
|---|---|---|
| Environmental | Operating temperature range | -20℃ to +70℃ |
| Storage Temperature Range | -40℃ to +85℃ | |
| Electrical performance | Electrical Life | 2,000 Operatios |
| Non-Switching Rating | 100mA, 50VDC | |
| Switching Rating | 25mA, 24VDC | |
| Mechanical performance | Operating force | 1,000gf max. |
| Travel | 2.0mm | |

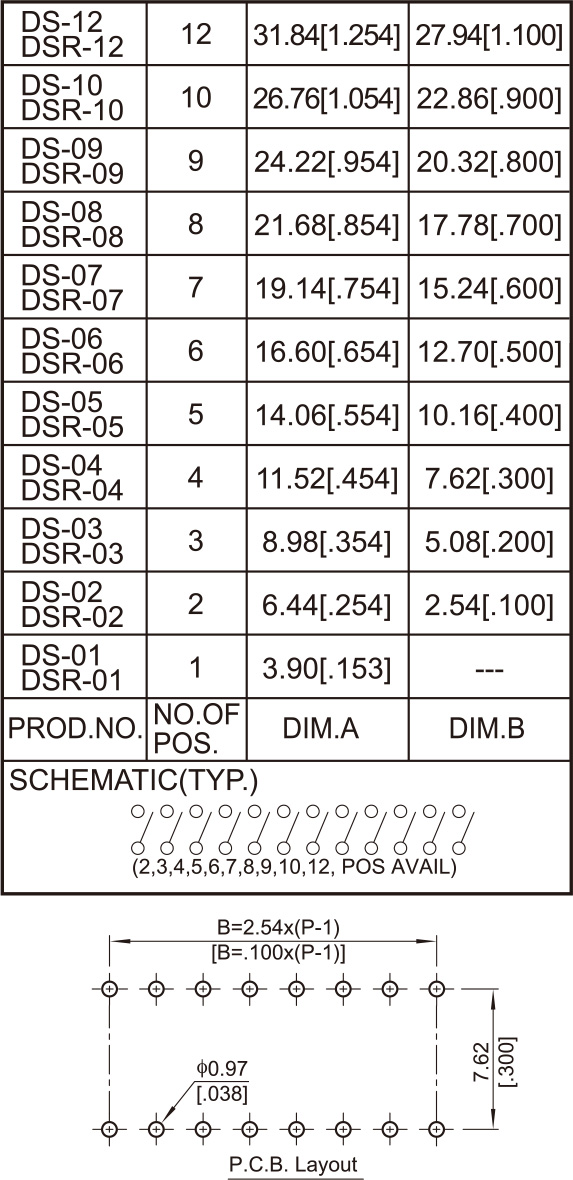

| Package | DS(R)-01:120pcs/tube DS(R)-02:72pcs/tube DS(R)-03:51pcs/tube DS(R)-04:40pcs/tube DS(R)-05:32pcs/tube DS(R)-06:27pcs/tube DS(R)-07:24pcs/tube DS(R)-08:21pcs/tube DS(R)-09:19pcs/tube DS(R)-10:17pcs/tube DS(R)-12:14pcs/tube | DS(R)-01-T:113pcs/tube DS(R)-02-T:70pcs/tube DS(R)-03-T:50pcs/tube DS(R)-04-T:39pcs/tube DS(R)-05-T:32pcs/tube DS(R)-06-T:27pcs/tube DS(R)-07-T:24pcs/tube DS(R)-08-T:21pcs/tube DS(R)-09-T:19pcs/tube DS(R)-10-T:17pcs/tube DS(R)-12-T:14pcs/tube |
