ReturnPS12305 12.3*11.0

PS12305

Product Features

The switch sounds silvery, feeling and rhythm are perfect;
Contact ways:SPDT & DPDT;
There are 2 operating modes:Self-Lock and Non-Lock;
The state of terminals and height of pushbutton can be designed according to customer's requirements;

Product Applications

The pushbutton switches can operate computer ancillary equipment, TV, audio equipment, all kinds of small autoimmunization equipment and instruments etc.

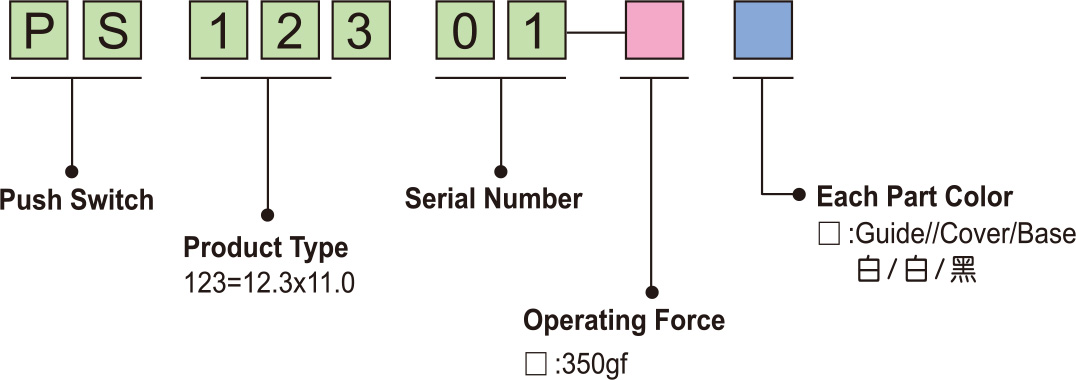

Ordering Information


Technical parameter

ItemsStandard
Operating temperature range-30℃ to +85℃
Electrical performanceRating10mA. 30V DC
Insulation resistance100MΩ min. 500V DC
Dielectric strength250V AC for 1 min.
Contact resistance100mΩ max.
DurabilityLifetime10,000 Cycles
Mechanical performanceOperating force350gf

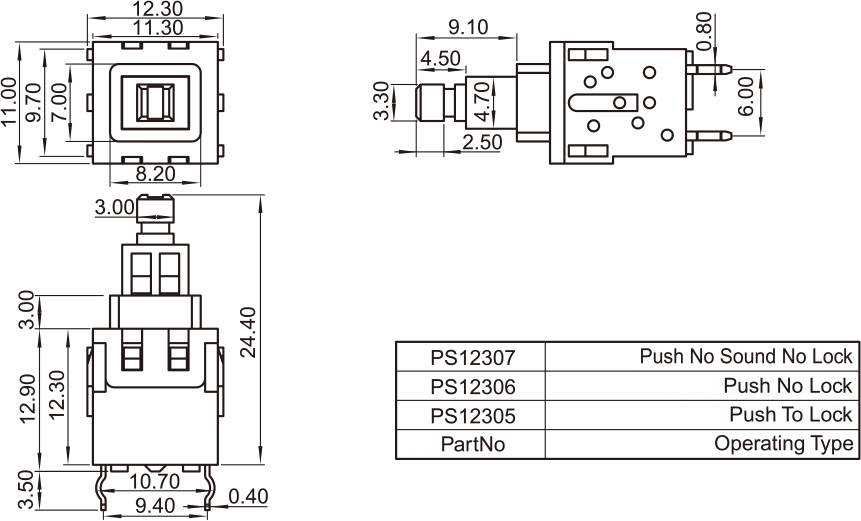

Specifications Diagram

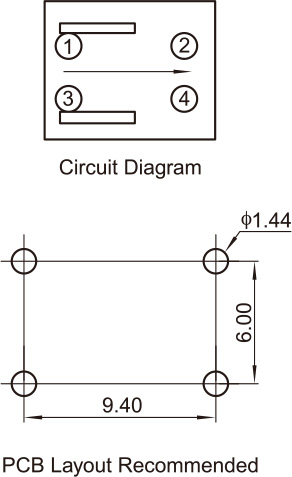

Circuit Diagram
