Sharp click feel with a positive tactile feedback;
Ultraminiature and light weight structure suitable for high density mounting, Economical but reliable;
lnsert molding in the contact with special treatment prevents flux build-up during soldering and permits auto-dipping.
Can be used to operate various multifunctional electronic devices, such as cameras, digital cameras, digital camcorders, and small portable devices etc.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to +85℃ | |
| Electrical performance | Rating | 10mA. 5V DC |
| Output voltage | 1V max. at 1mA 5V DC | |
| Contact resistance | 100mΩ max. | |
| Durability | Lifetime | 100,000 Cycles |

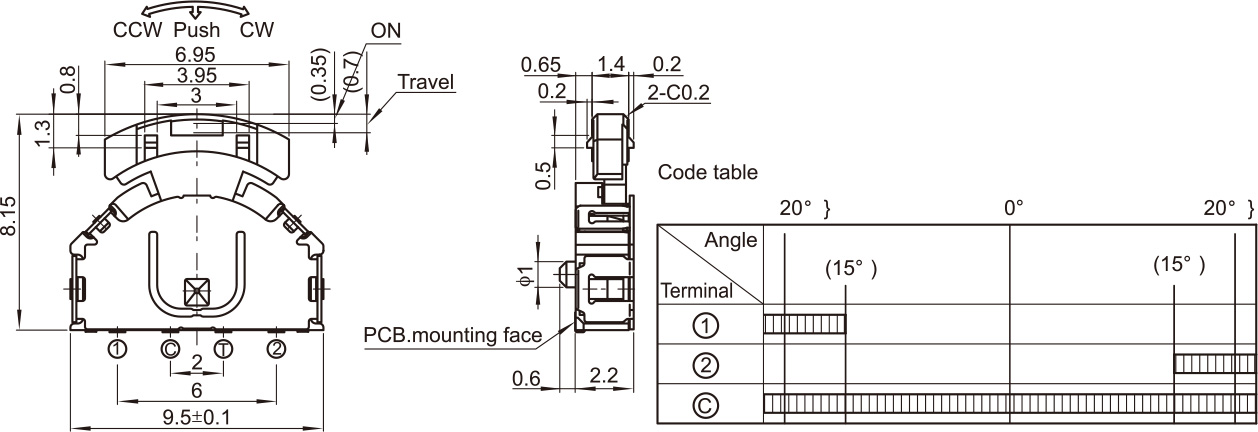

| Mechanical performance | Operating force | Lever portion:70 ± 40gf Push portion:250 ± 100gf |
| Travel | Lever portion:-20° | 0° | 20° Push portion:0.70 ± 0.1mm | |
