TMHF07_Multifunction Series_Yueqing Kejian Electronics Co., Ltd.

ReturnTMHF07 Multifunction Series

Product Features

Sharp click feel with a positive tactile feedback;
Ultraminiature and light weight structure suitable for high density mounting, Economical but reliable;
lnsert molding in the contact with special treatment prevents flux build-up during soldering and permits auto-dipping.

Product Applications

Can be used to operate various multifunctional electronic devices, such as cameras, digital cameras, digital camcorders, and small portable devices etc.

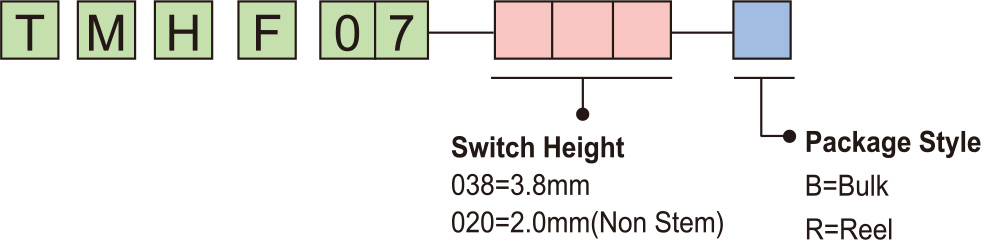

Ordering Information

Technical parameter

Items		Standard
Operating temperature range		-30℃ to +85℃
Electrical performance	Rating	50mA. 12V DC
	Insulation resistance	100MΩ min. 100V DC
	Dielectric strength	250V AC for 1 min.
	Contact resistance	100mΩ max.
Durability	Lifetime	10,000 Cycles
Mechanical performance	Operating force	1 st 100 ± 40gf 2 st 250 ± 80gf
Mechanical performance	Travel	1 st 0.3 ± 0.1mm 2 st 0.55 ± 0.1mm
