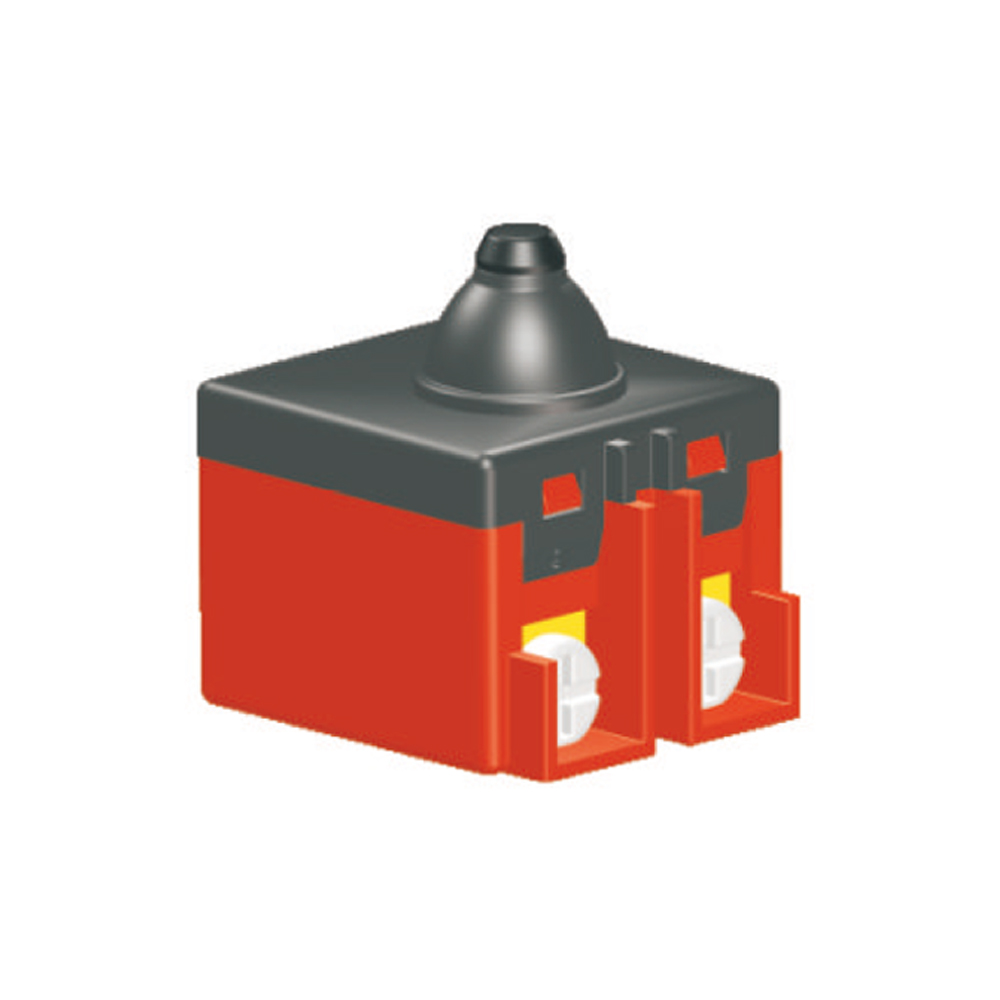

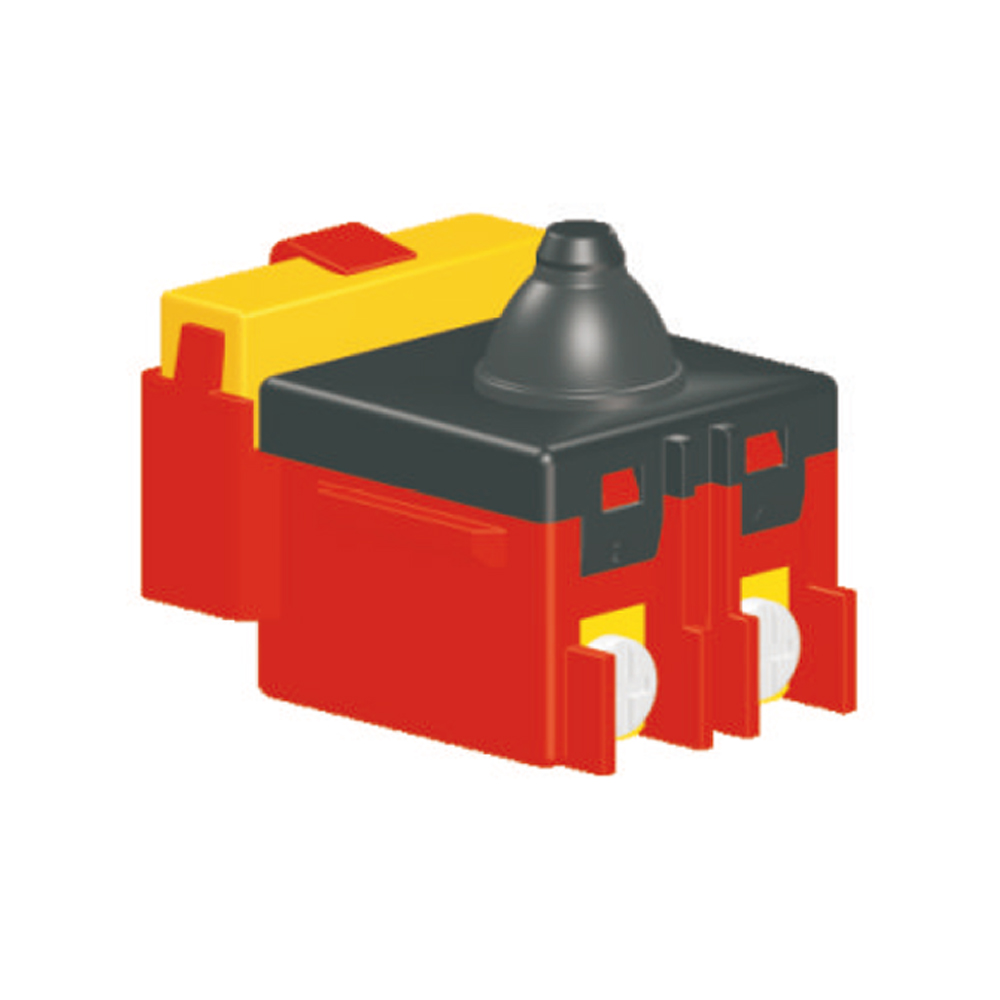

◆ PB01 series are general type push-button switch, integrated dustproof, commonly for used in portable heavy dust power-tools such as: 100mm, 125mm and 150mm Angle Grinders, Polisher Grinders, Die Grinders, Sanders, etc.

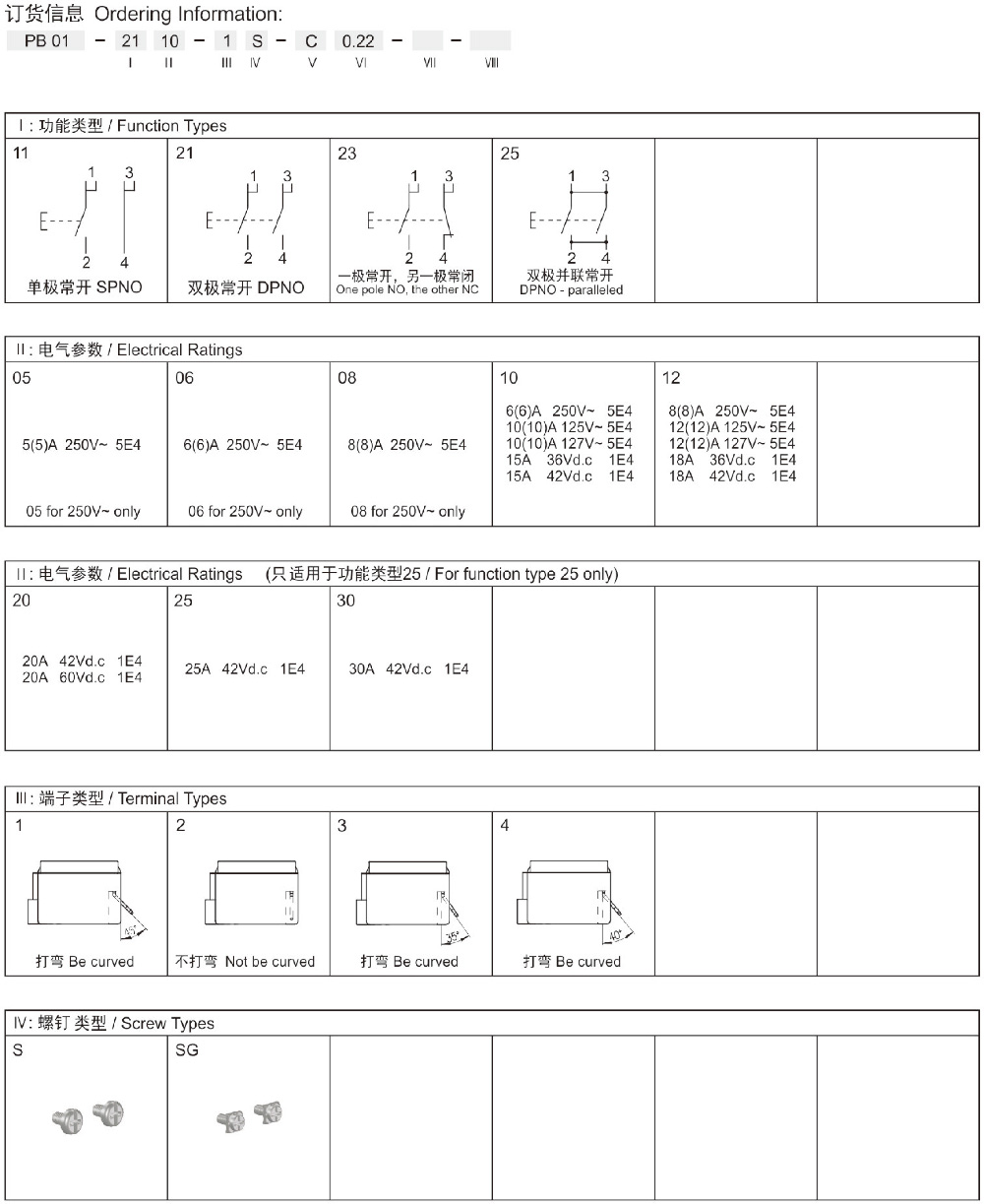

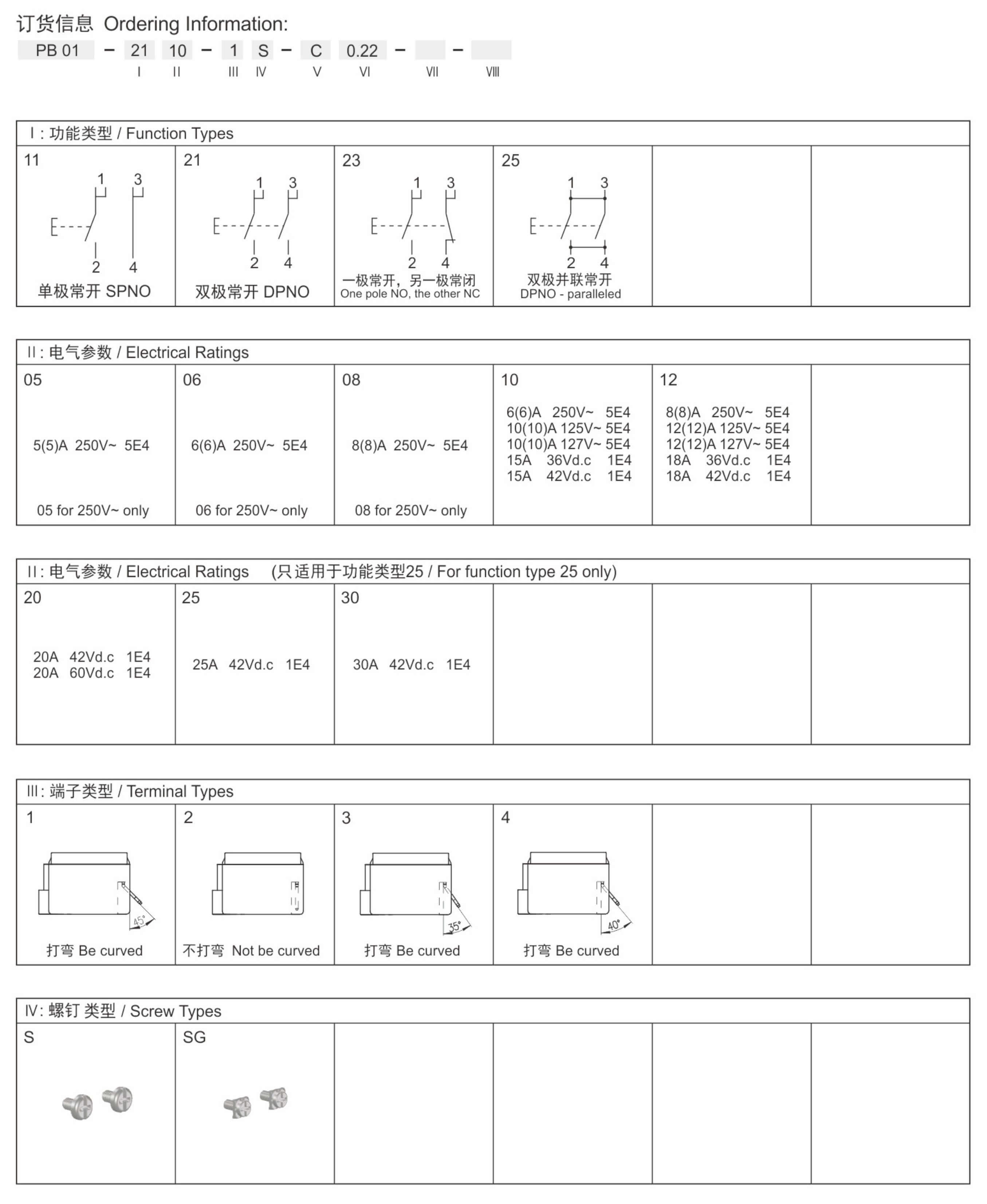

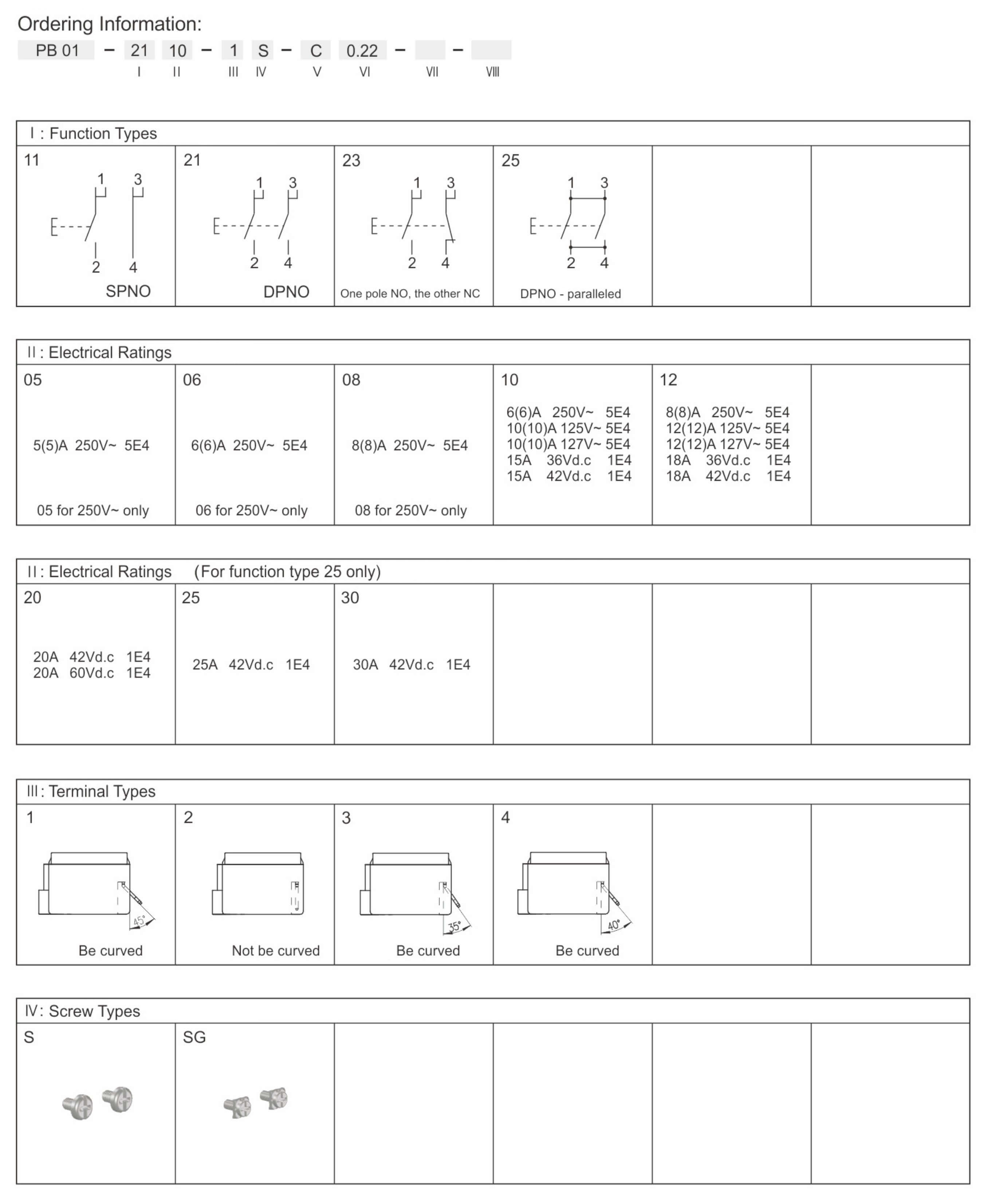

◆ Optional with the function as follows:
→ SPNO(Single Pole Normally Open)
→ DPNO(Double Pole Normally Open)
→ DPNOP(Double Pole Normally Open Paralleled)
→ One Pole Normally Open, the other Normally Close

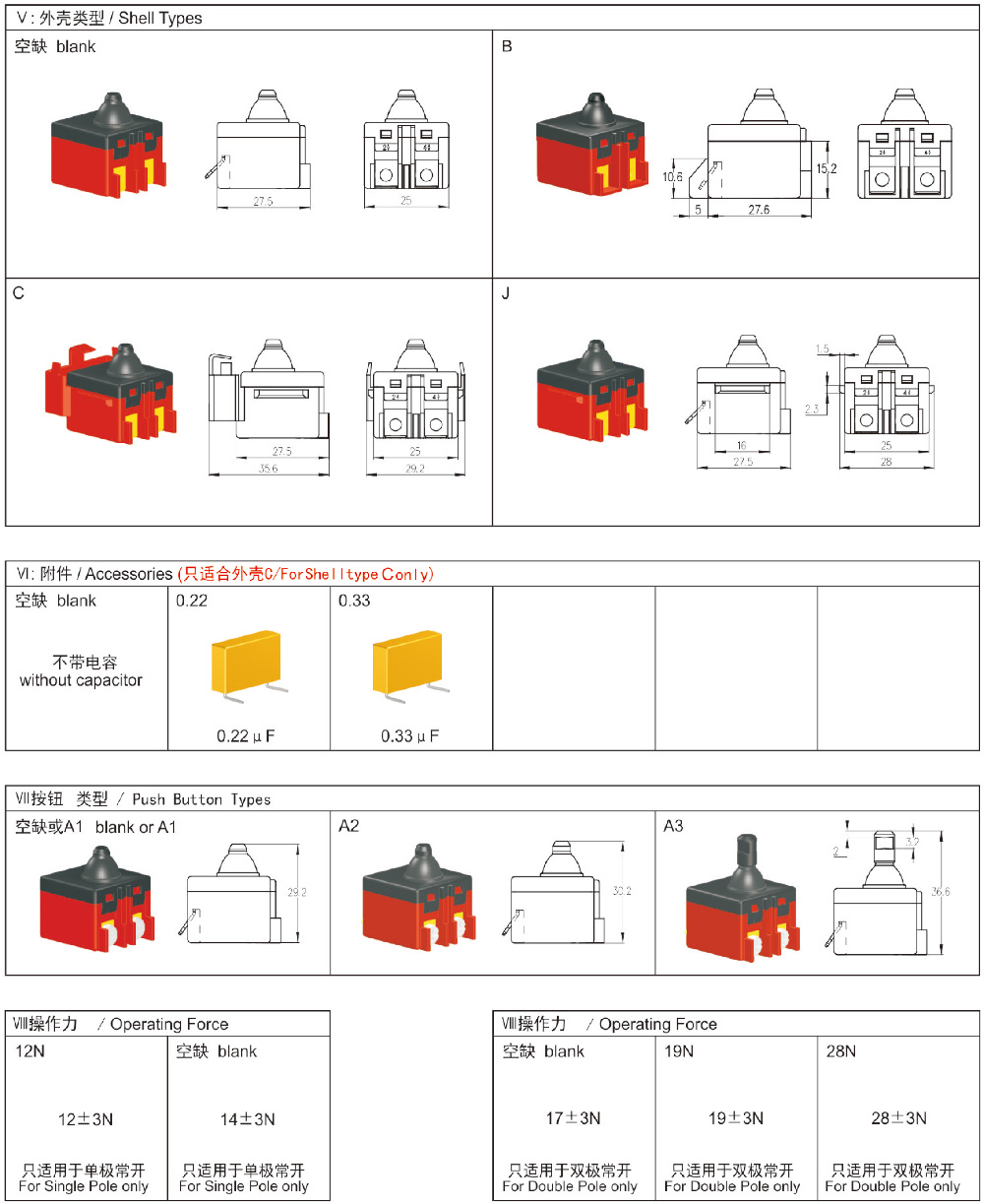

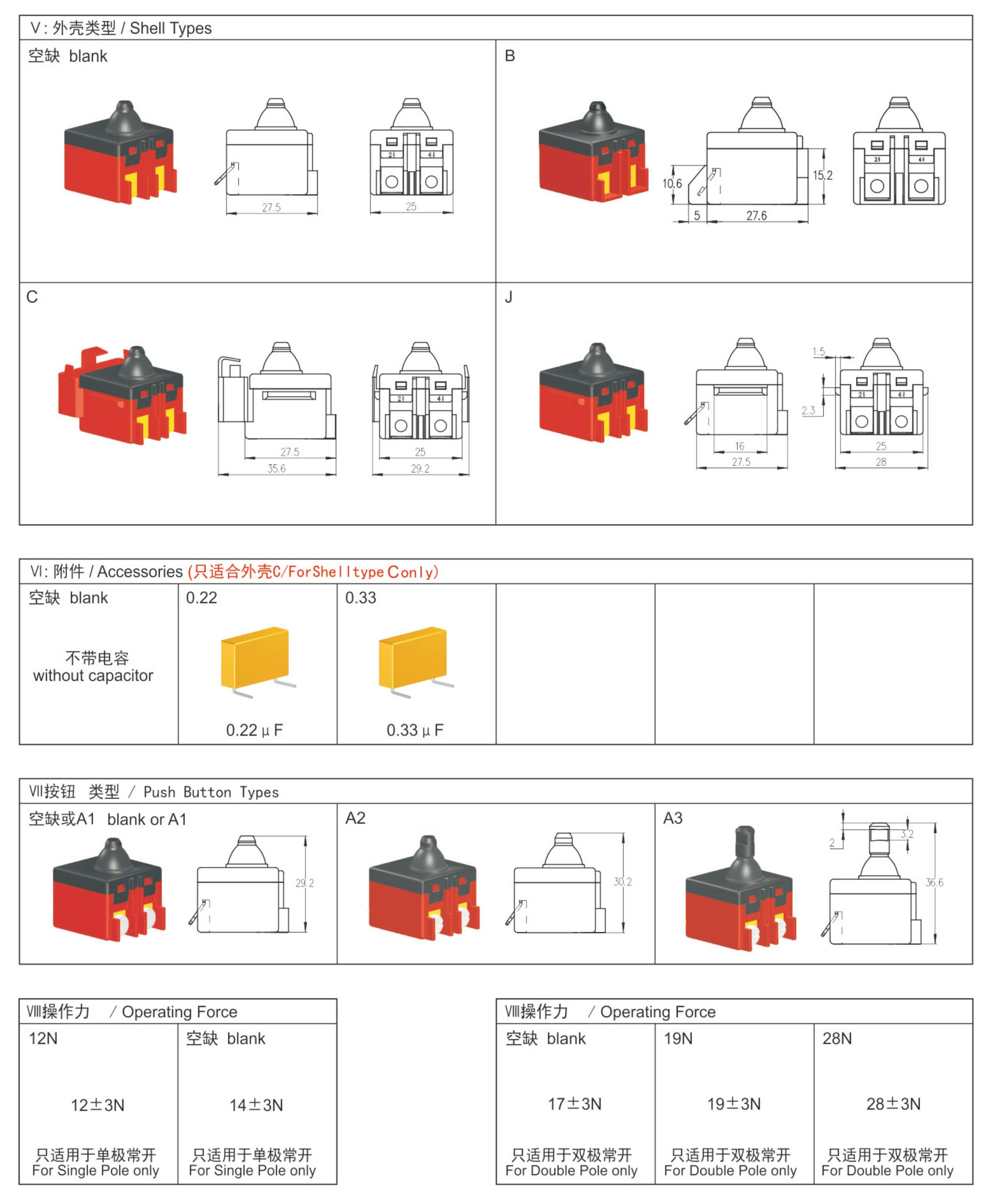

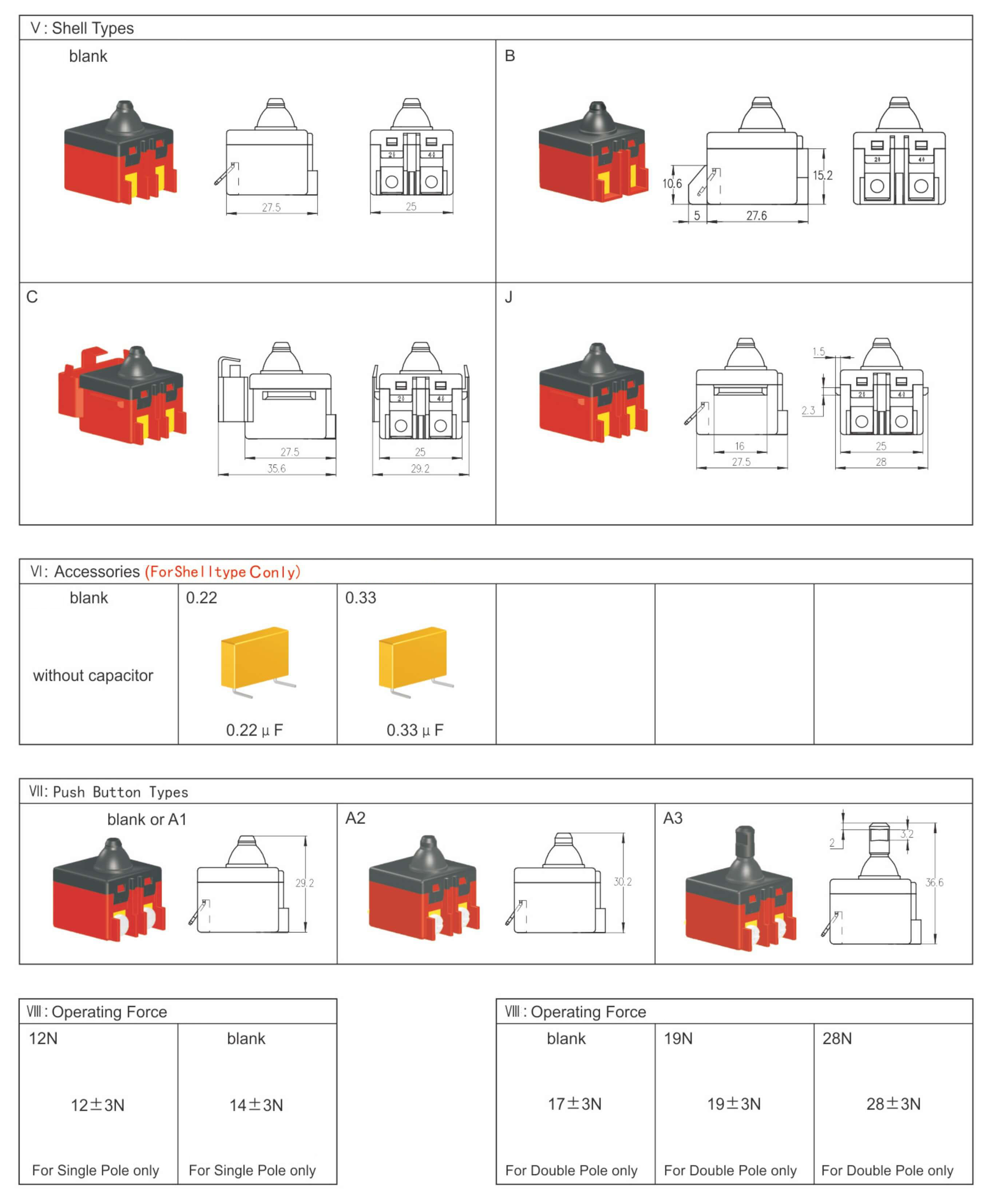

◆ Optional with the accessor as follows:
→ Suppression capacitor (commonly 0.22 or 0.33μF)

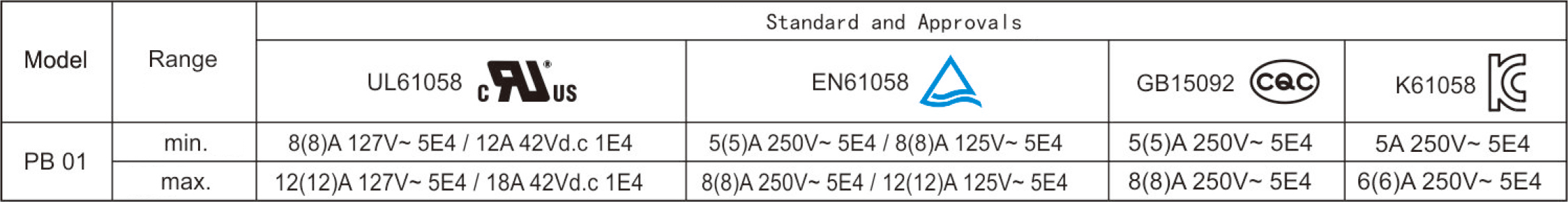

| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. Inrush current at 250V | 48A |
| → Max. Inrush current at 127V | 72A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
| → Suitable for appliances of protection class II | |
◆ Input side:
→ Screw terminals M3.5
◆ Output side:
→ Plug-in terminals 2.8×0.8mm
