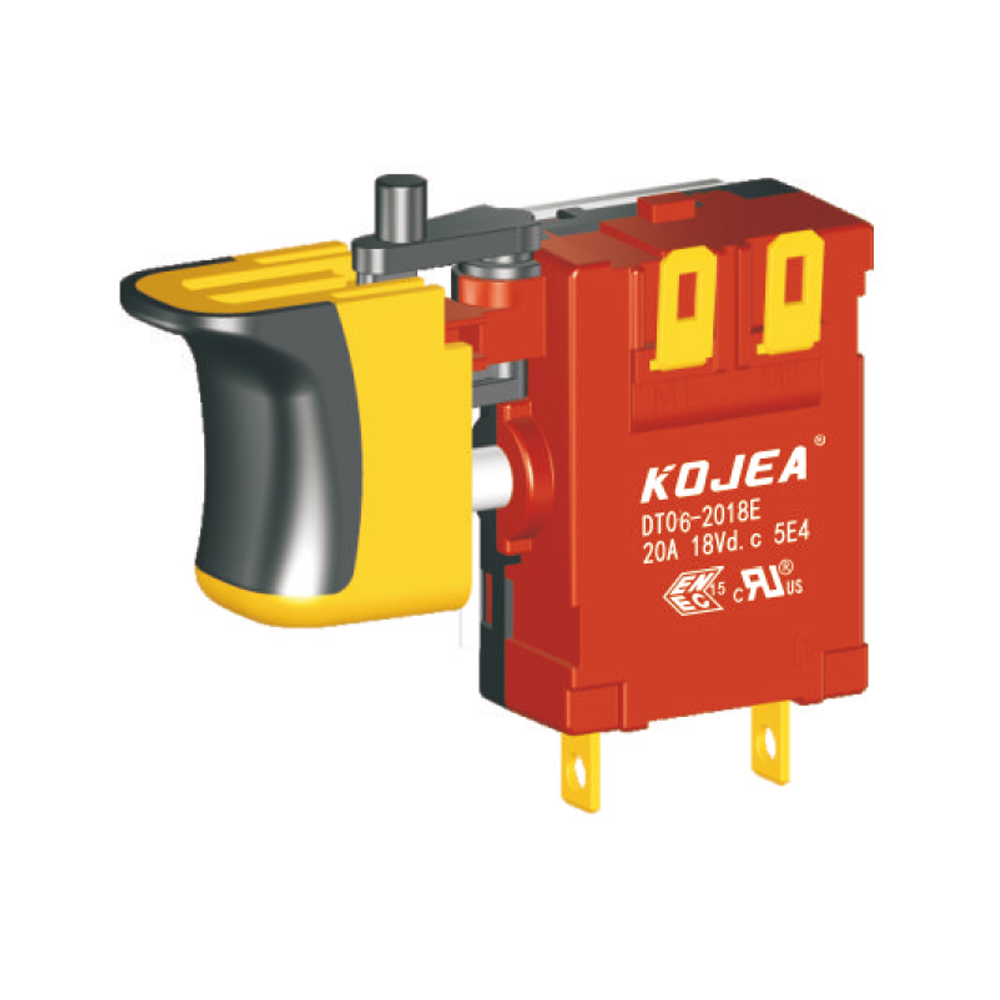

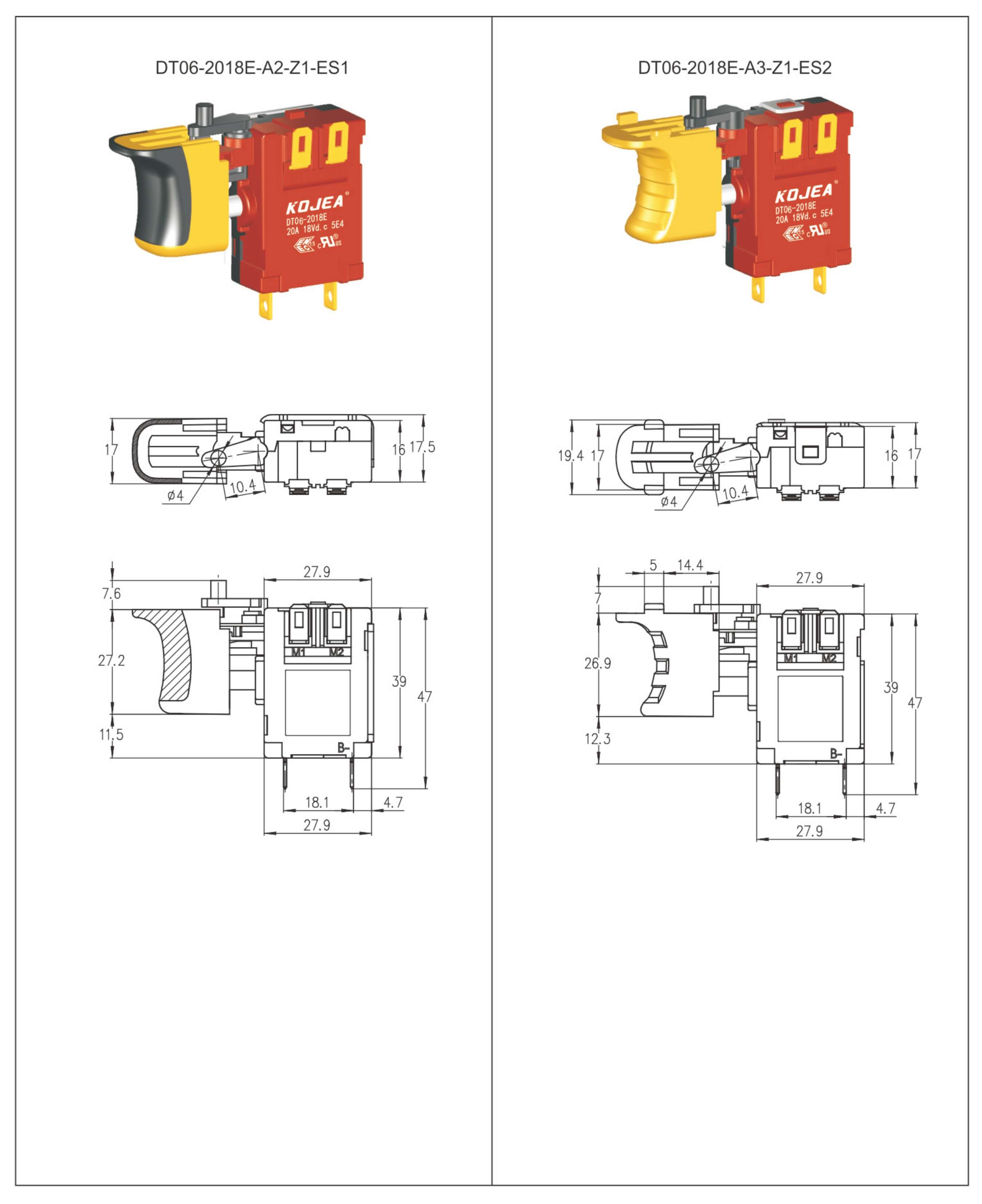

◆ DT06 series are general type DC trigger switches, integrated dustproof and mechnical brake contact and reversing box, commonly for used in DC cordless portable power-tools and gardening power-tools such as: Cordless Drills, Cordless Screw Drivers, etc.
◆ The switches combine compact size with high performance, a wide scope of heat sink for MOSFET and further options provide easy to mount solutions. They employ SPST-NO with by-pass contact, integrated PWM (Pulse Width Modulated) electronics in various dimensions.
◆ Average duty cycle of motor voltage 8-50% to 8-99%, then by- pass to battery voltage (according to customer's demand).

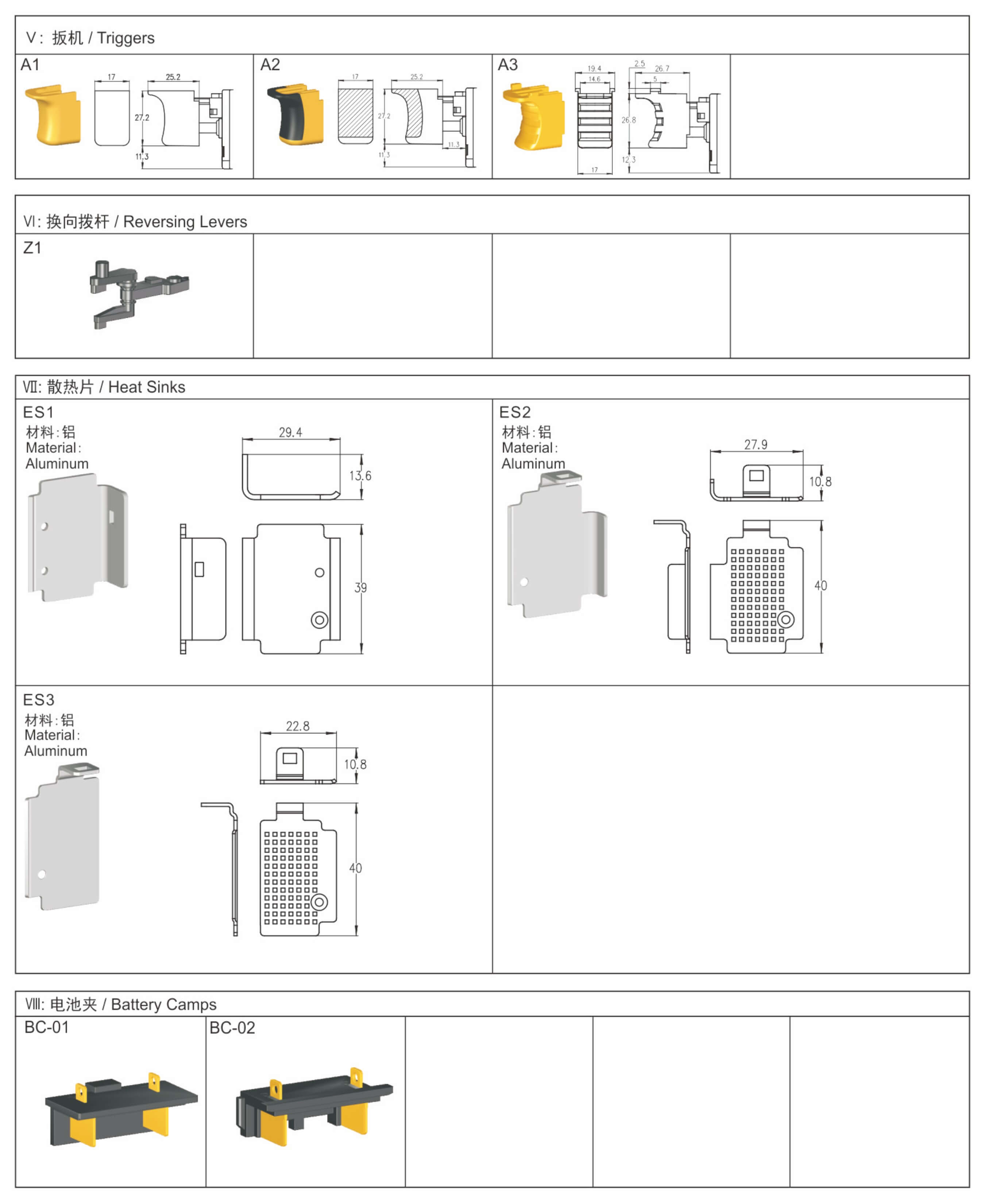

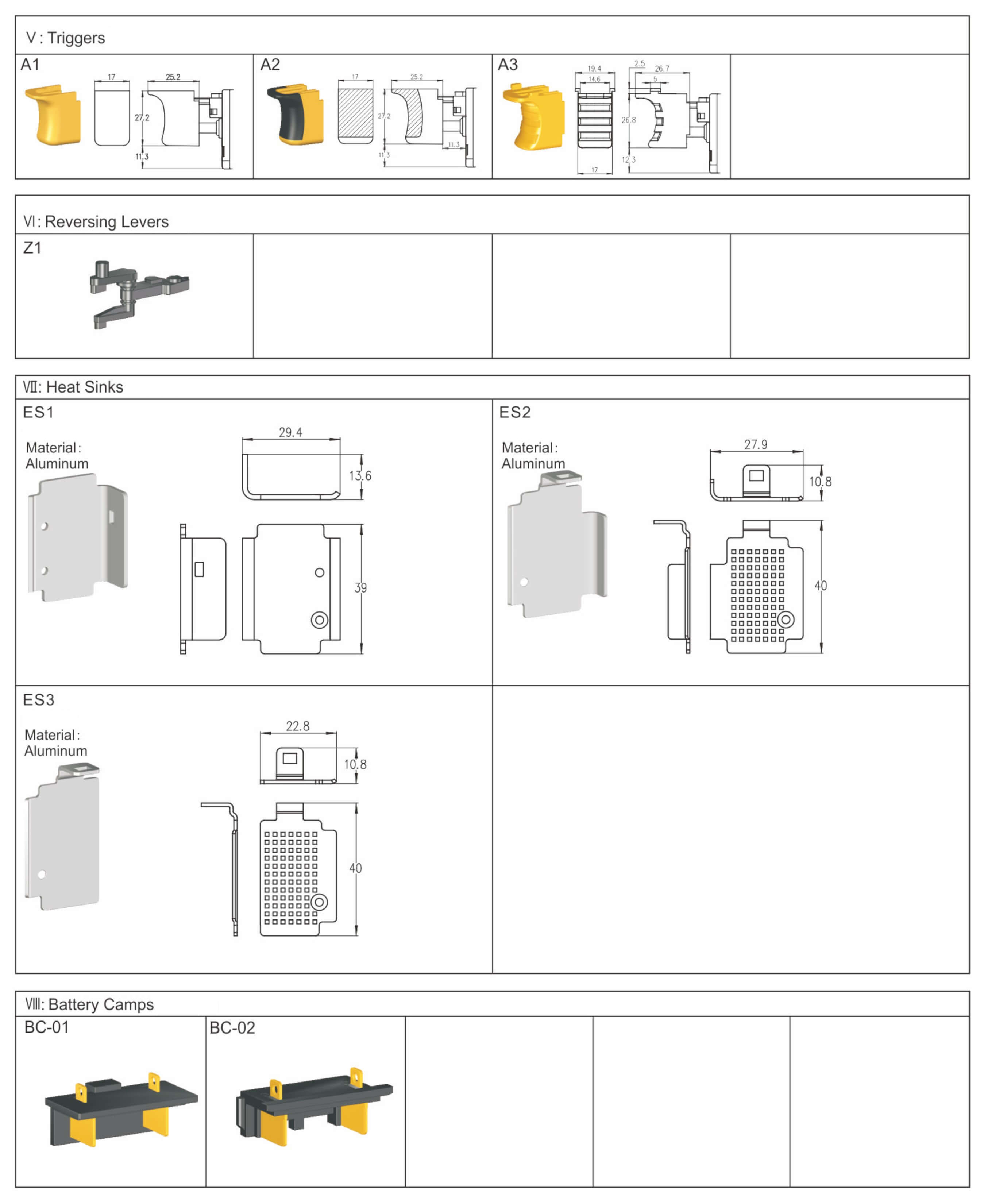

◆ Optional with the function or accessor as follows:
→ External MOSFET version
→ Auxiliary LED and wires
→ Trigger coverde with rubber (overmolding)
→ Auxiliary Wire for temperature test
→ Multi-function, optional soft start, under-voltage protection, over current protection, battery temperature protection

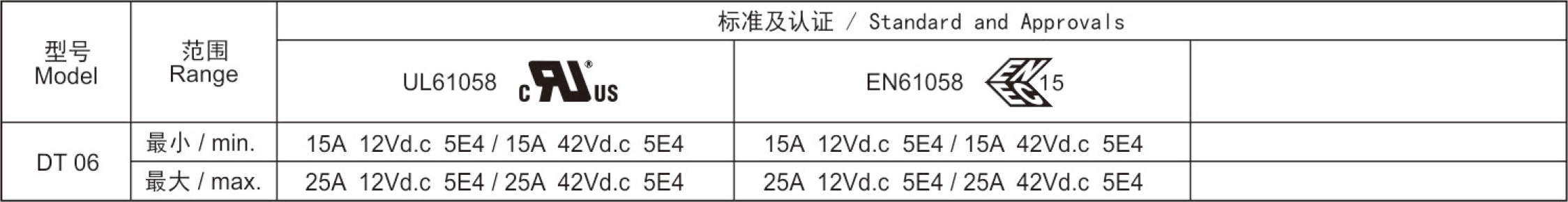

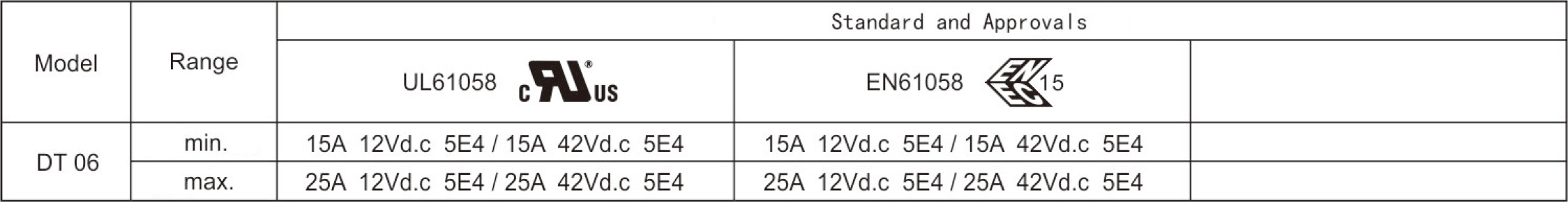

| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. current at 42Vd.c | 25A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 500V |
| → Dielectric strength of reinforced | 500V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

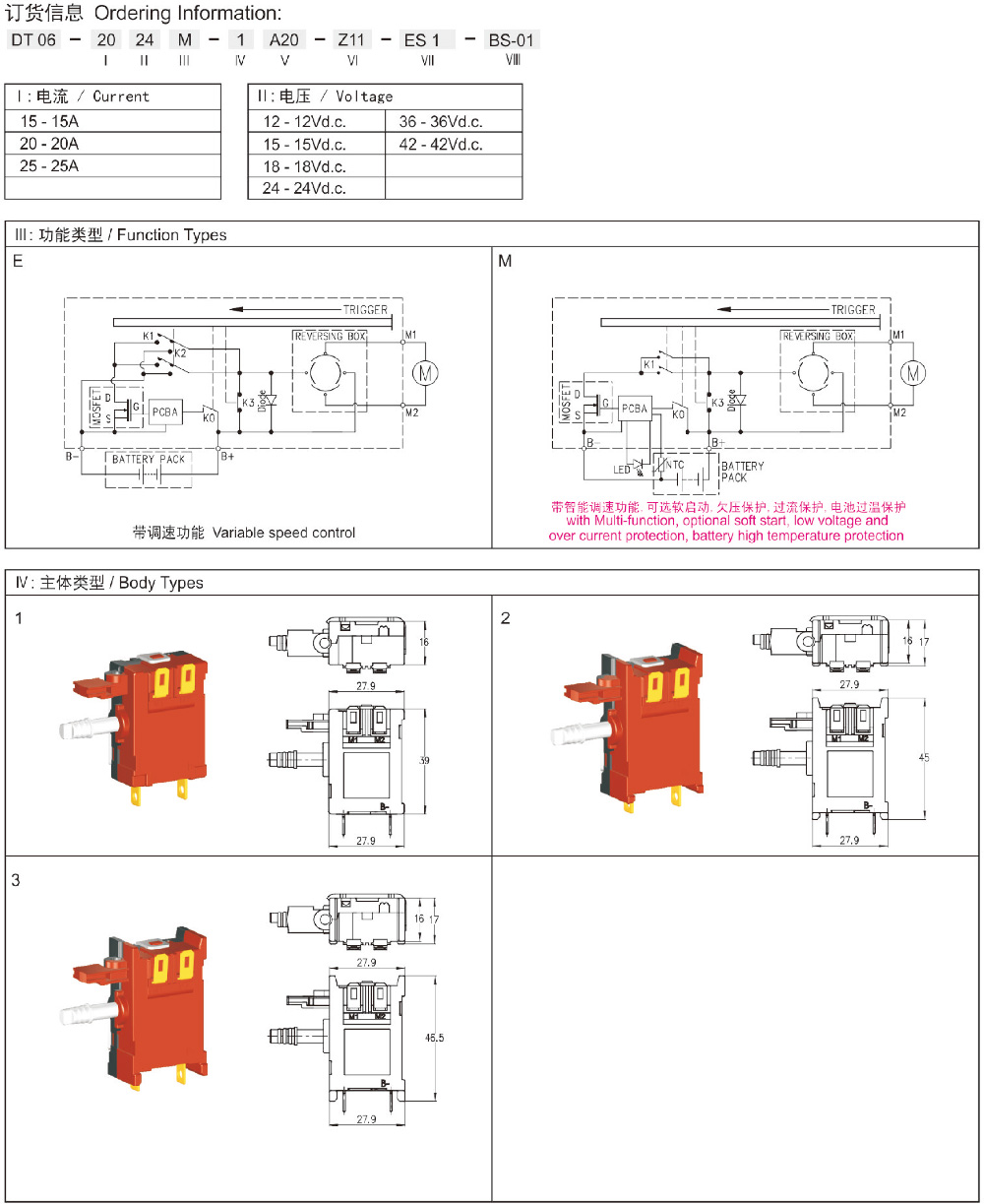

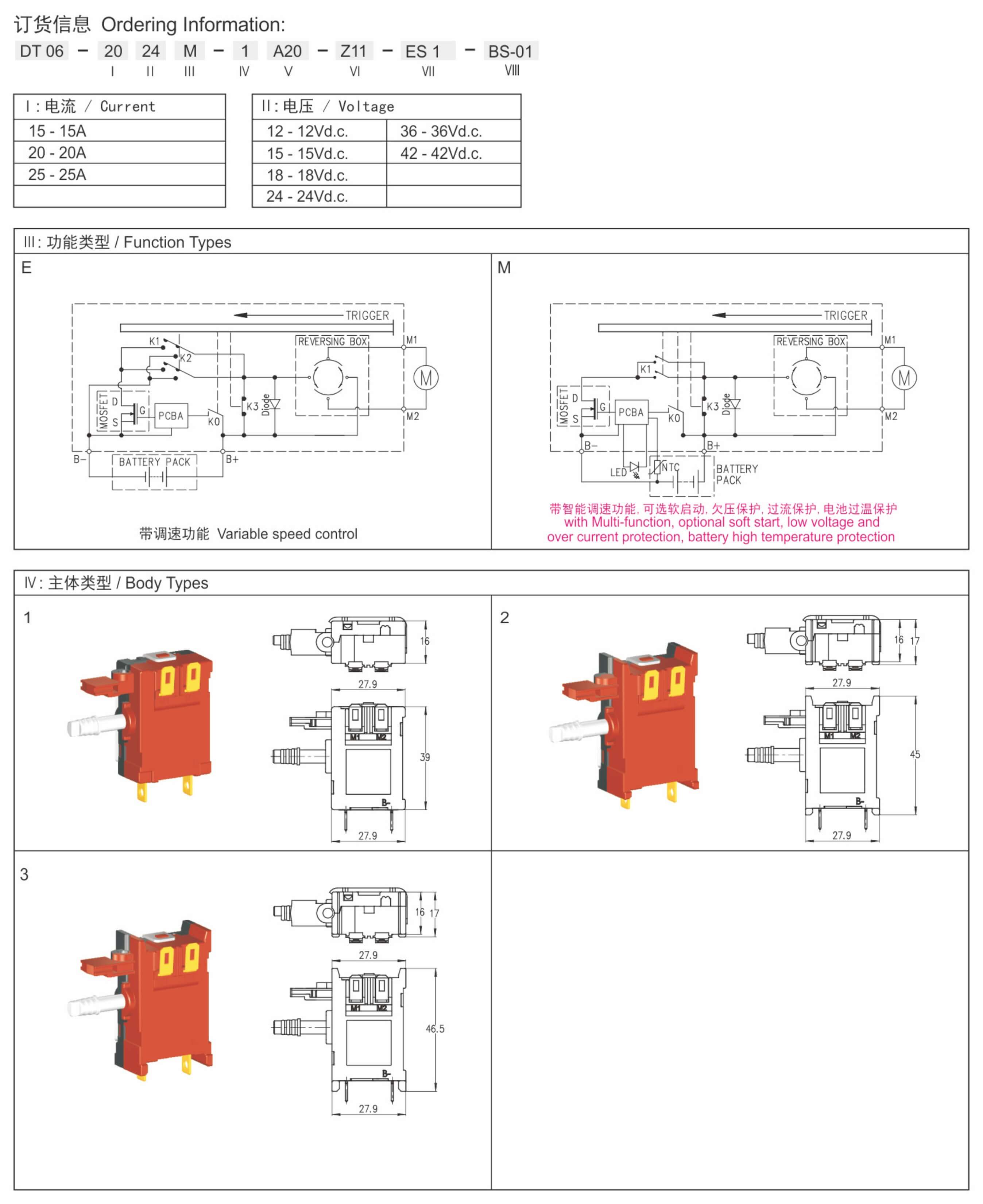

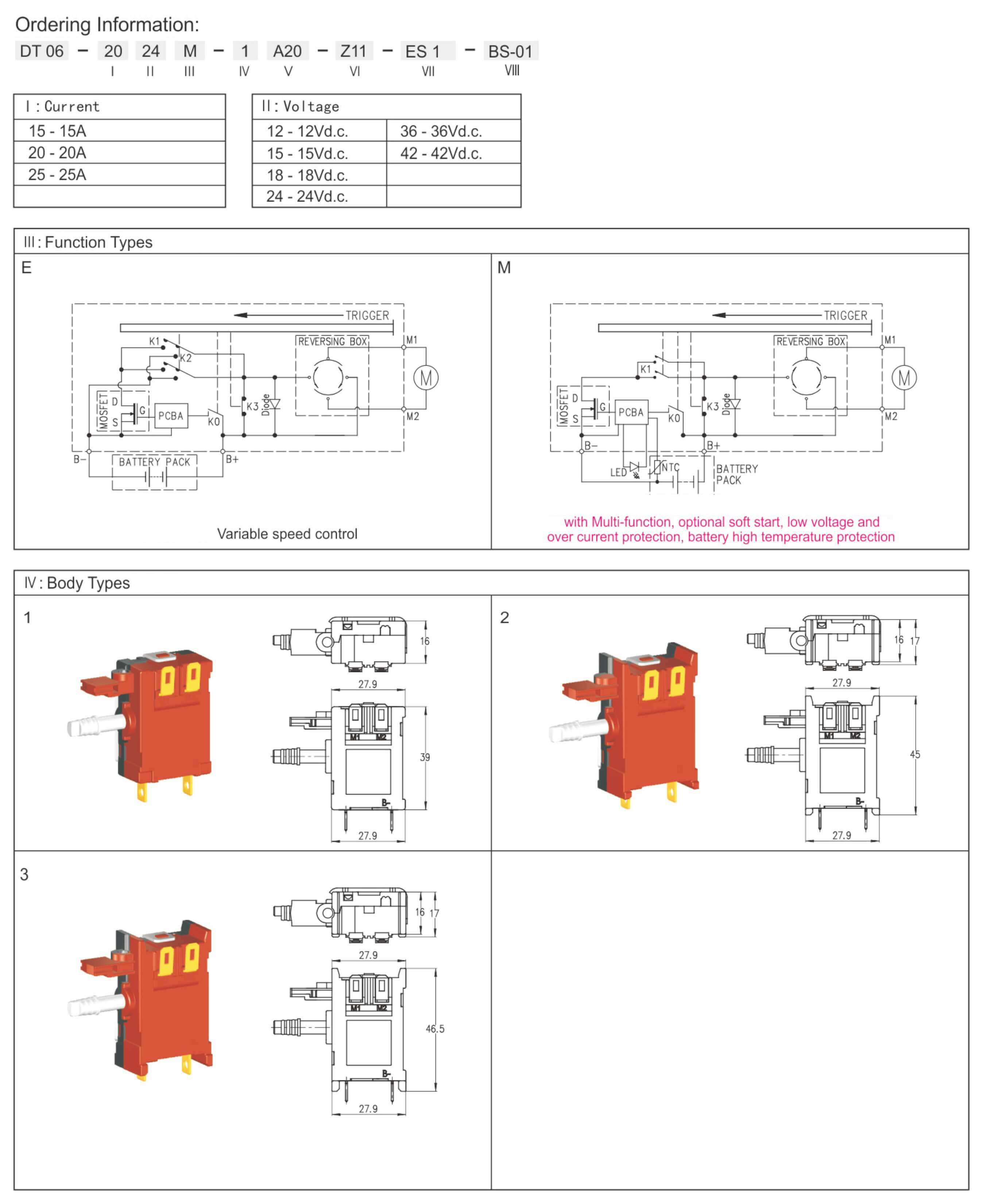

◆ Input side/Output side:
→ Solder teminal
