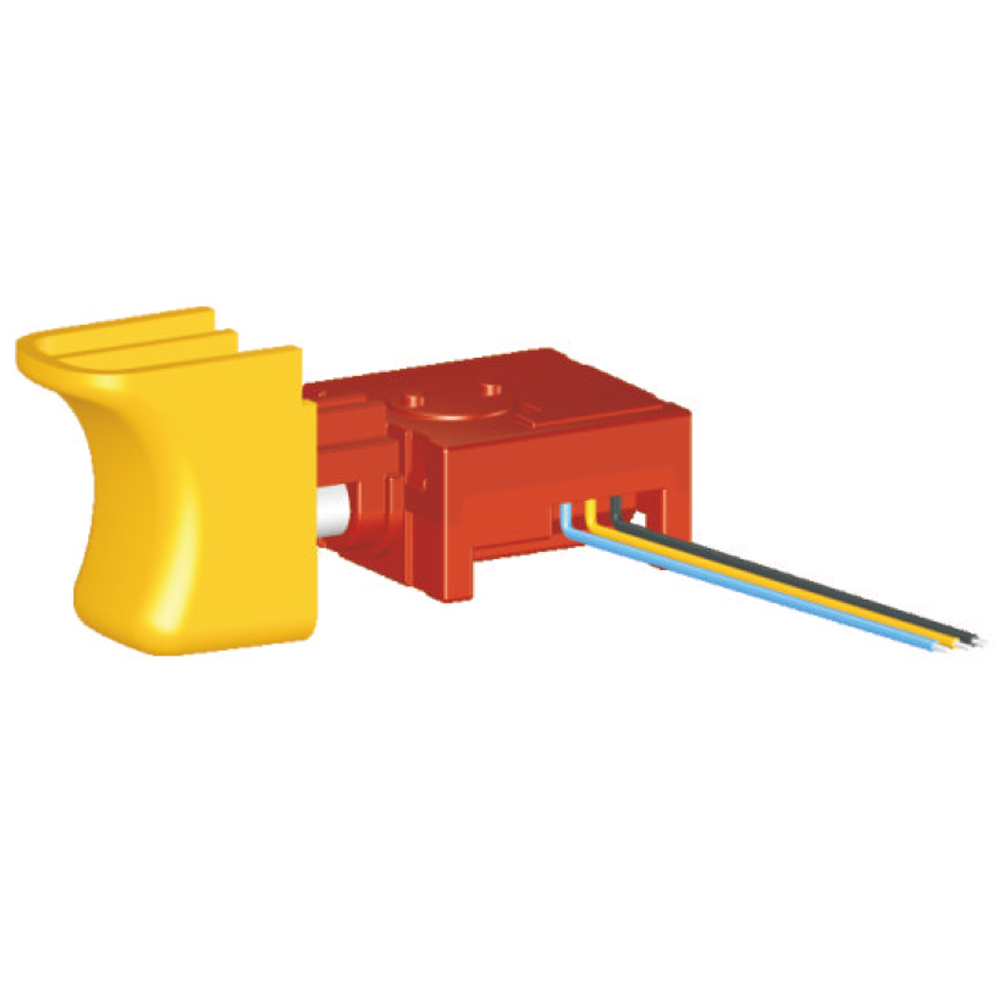

◆ DT05 series are general type DC trigger switches, integrated dustproof and mechnical brake contact, commonly for used in DC cordless portable power-tools and gardening power-tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Blowers, Cordless Grass Trimmer,etc.

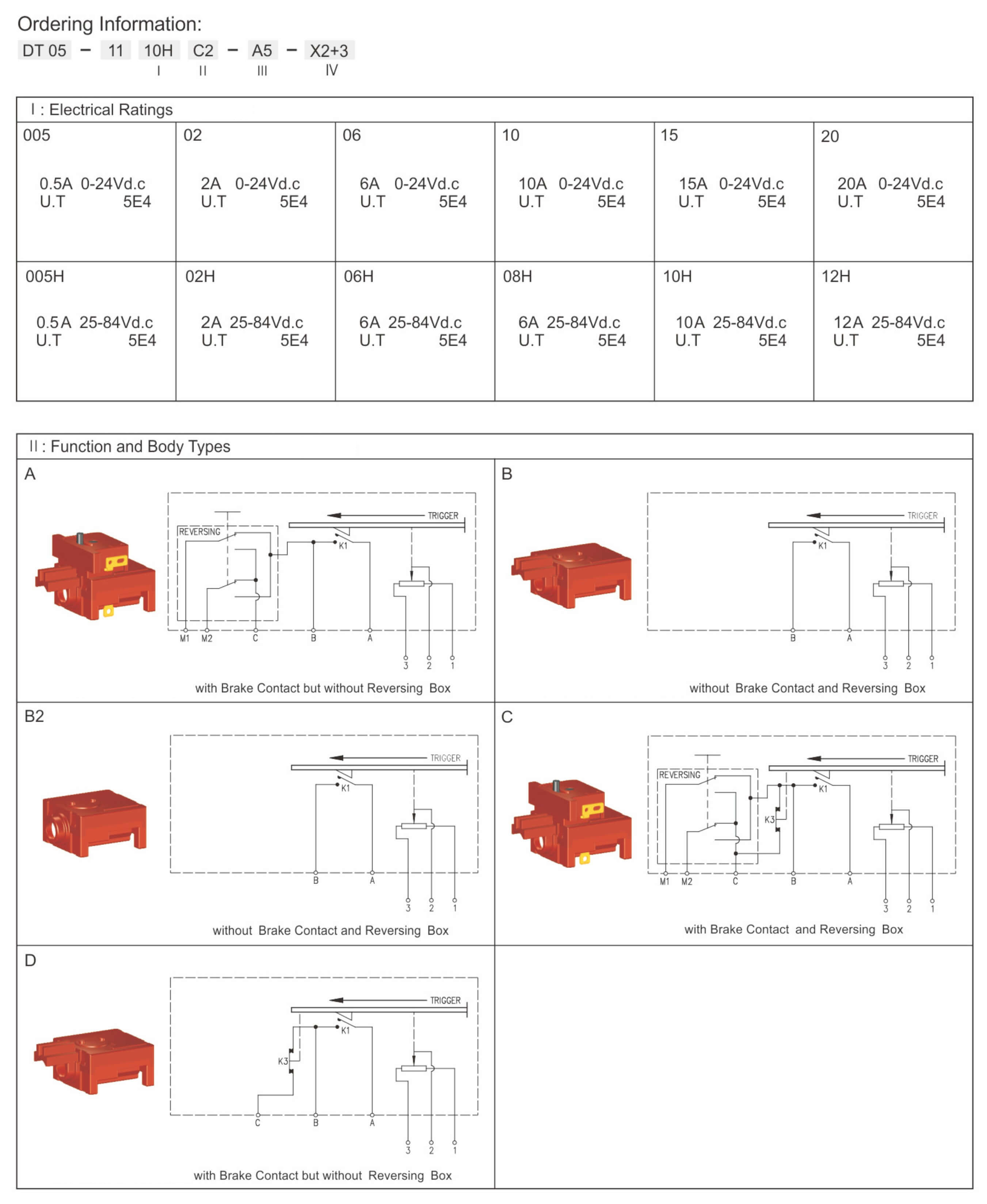

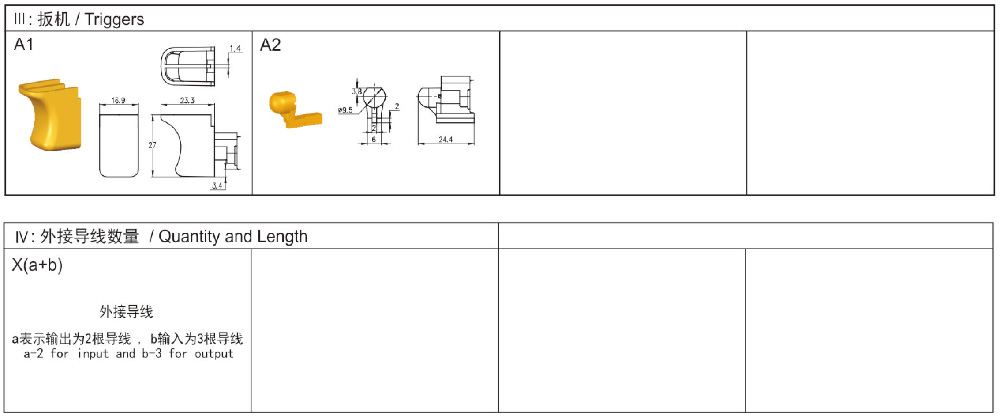

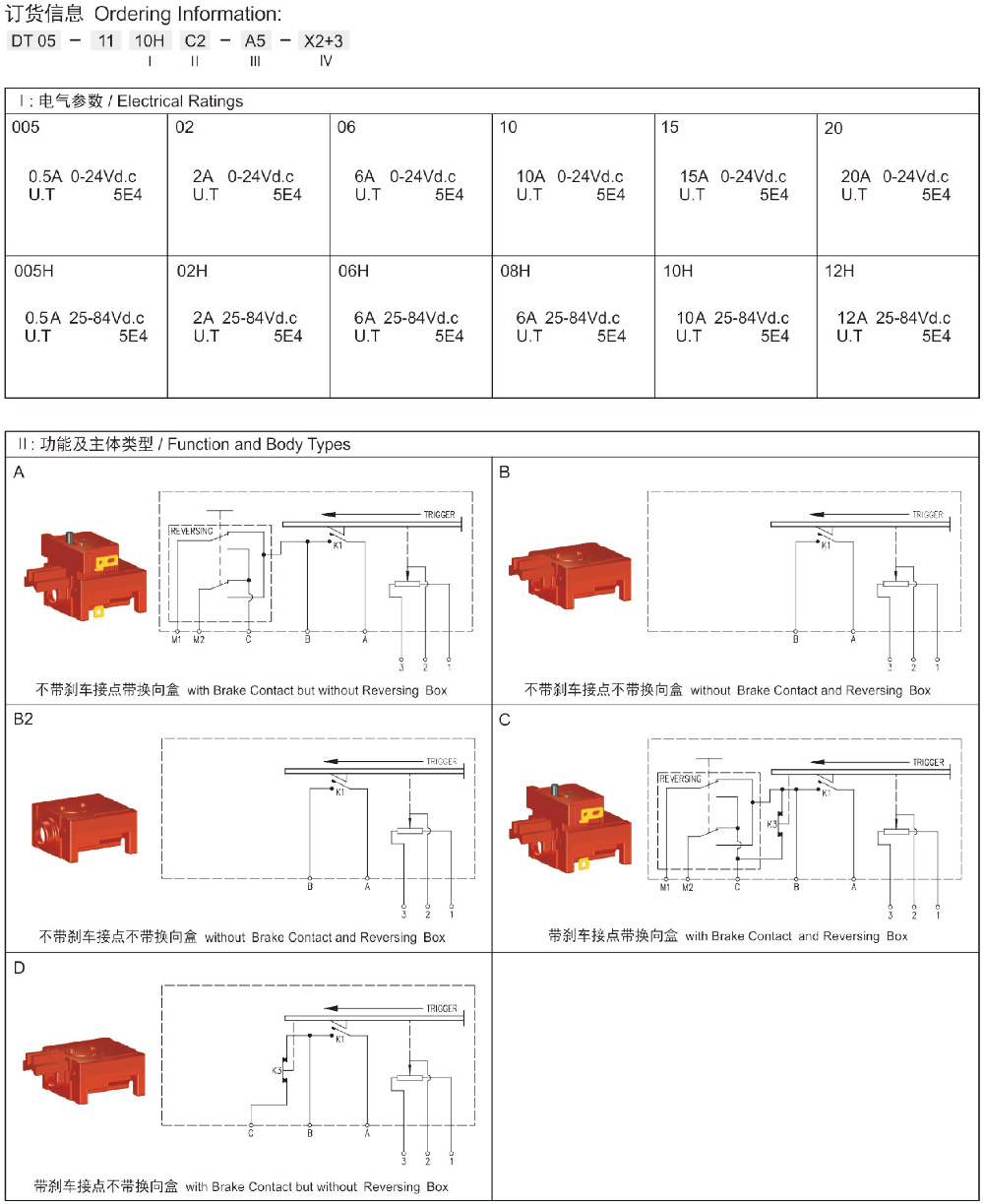

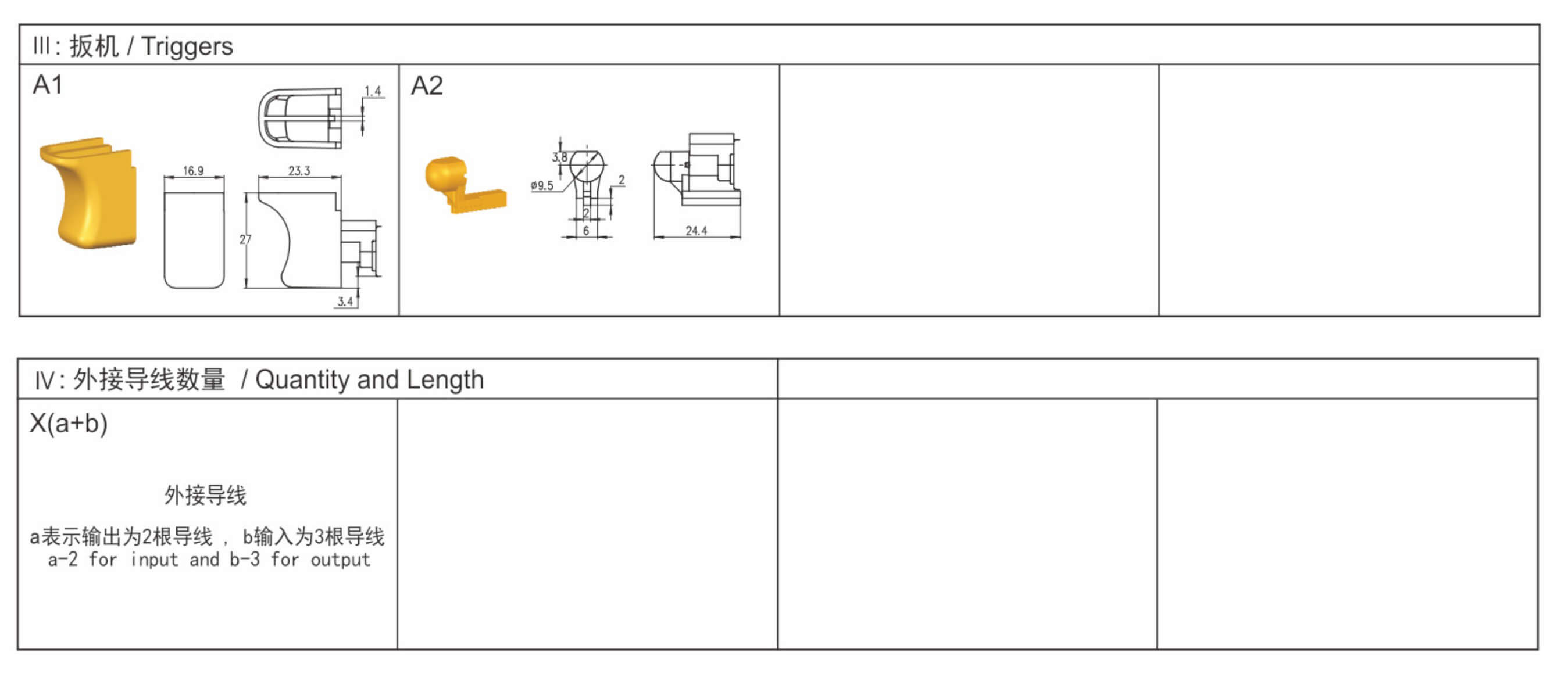

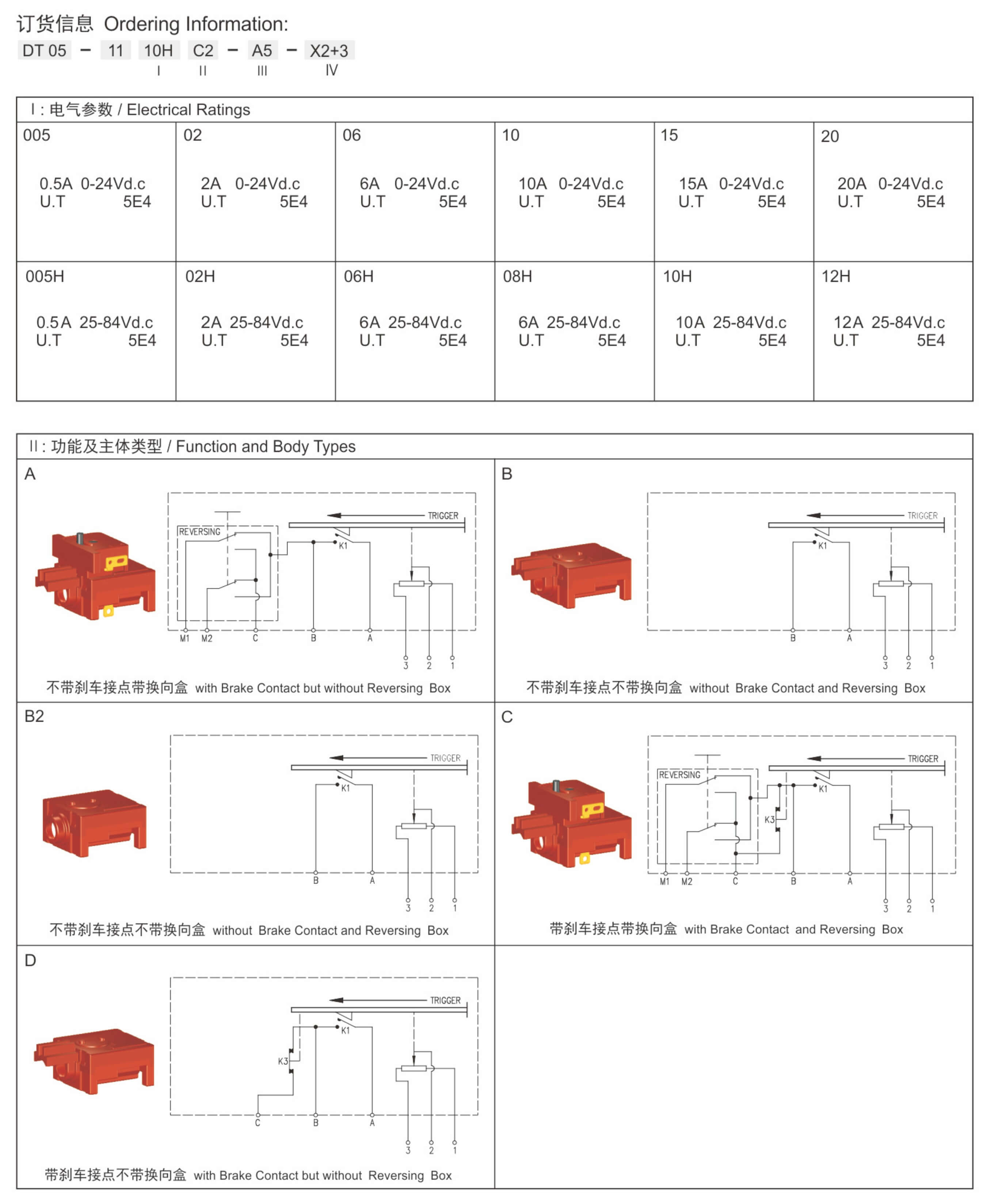

◆ Optional with the accessor as follows:
→ Rversing box
→ Auxiliary wire output
→ Trigger coverde with rubber (overmolding)
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. current at 24Vd.c | 20A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1300V |
| → Dielectric strength of reinforced | 2600V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |

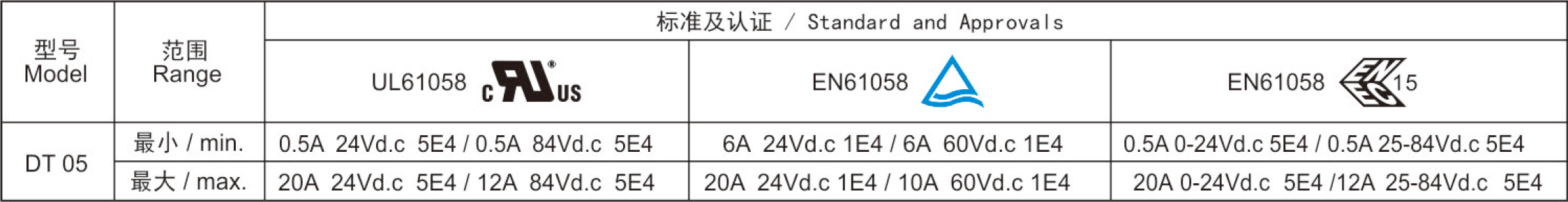

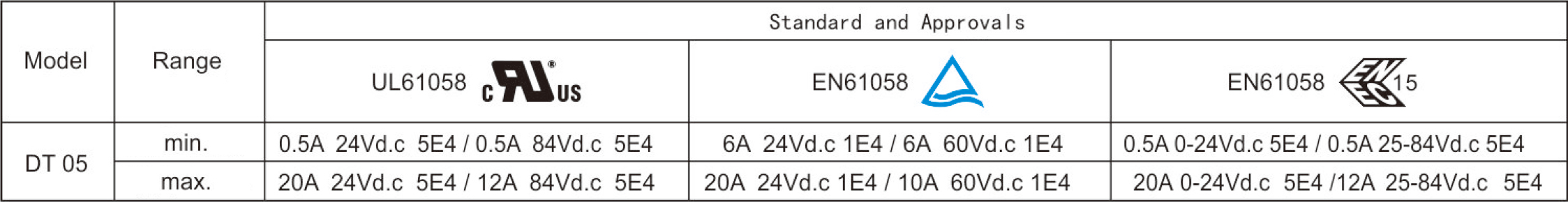

◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

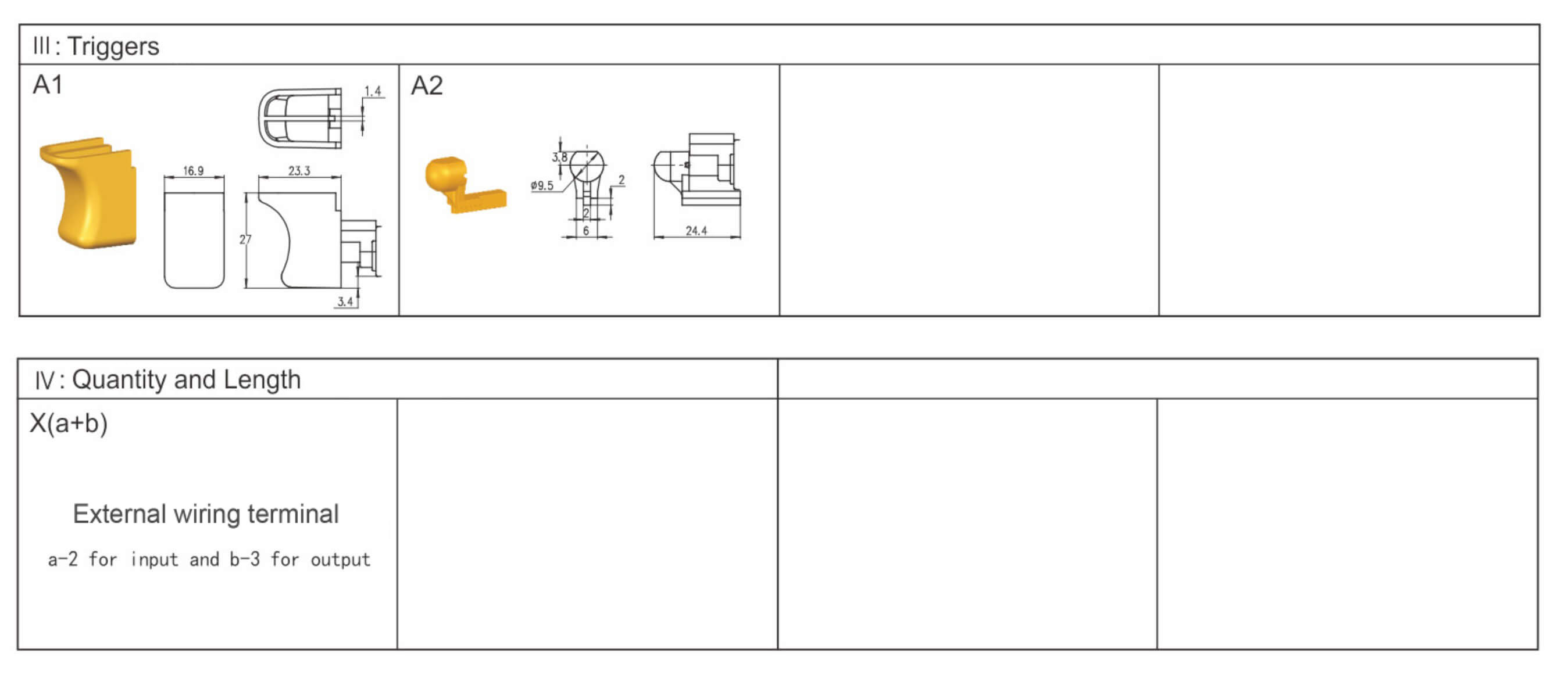

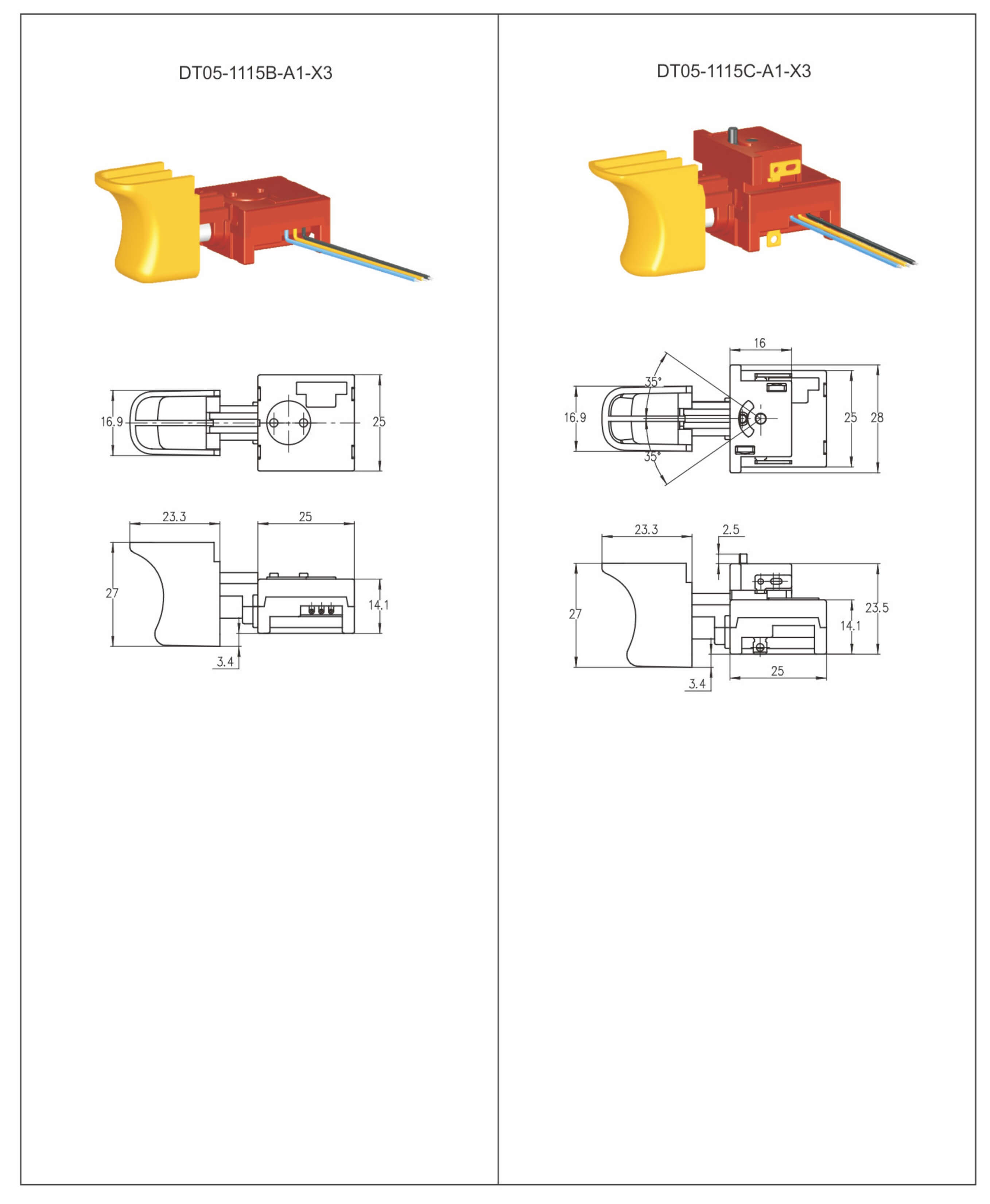

◆ Input side/Output side:
→ Solder teminal
→ Wire with tin conductor

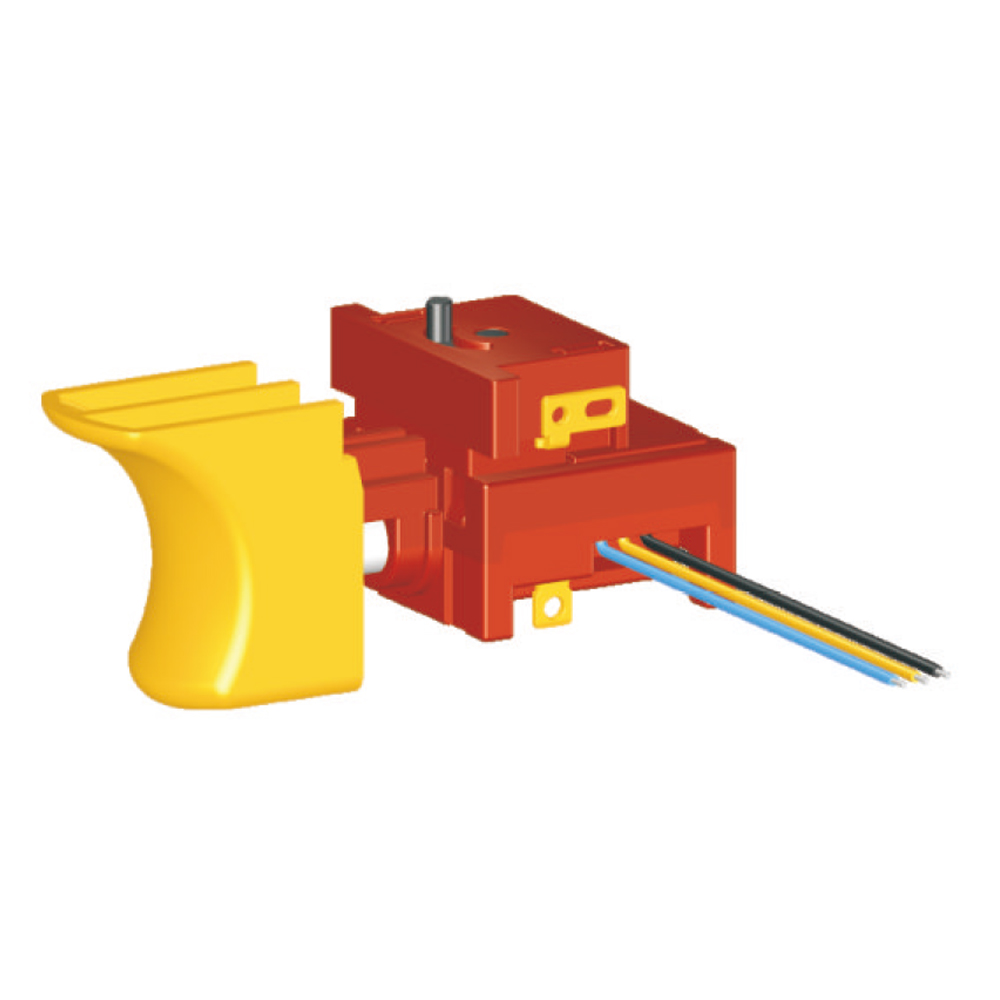

◆ Reversing Box:
→ Solder teminal
→ Wire with tin conductor
◆ Potentiometer Output:
→ Wire with tin conductor
→ Wire terminal with Plug
