◆ DT04 series are general type DC signal trigger switches, integrated dustproof and reversing box, specially for used in DC cordless brushless portable power-tools and gardening tools such as: Cordless brushless Drills, Cordless brushless ScrewDrivers, Cordless brushless Rotary Hammers, Cordless brushless Impact Wrenches, Cordless brushless grass trimmer, Cordless brushless blowers, etc.
◆ Optional with the function or accessor as follows:
→ On-off with linear poteniometer ouput
→ On-off with Reversing signal indication and linear potentiometer ouput
→ On-off with Reversing hall signal and linear potentiometer ouput
→ Hall signal On-off with Reversing hall signal and hall linear potentiometer ouput

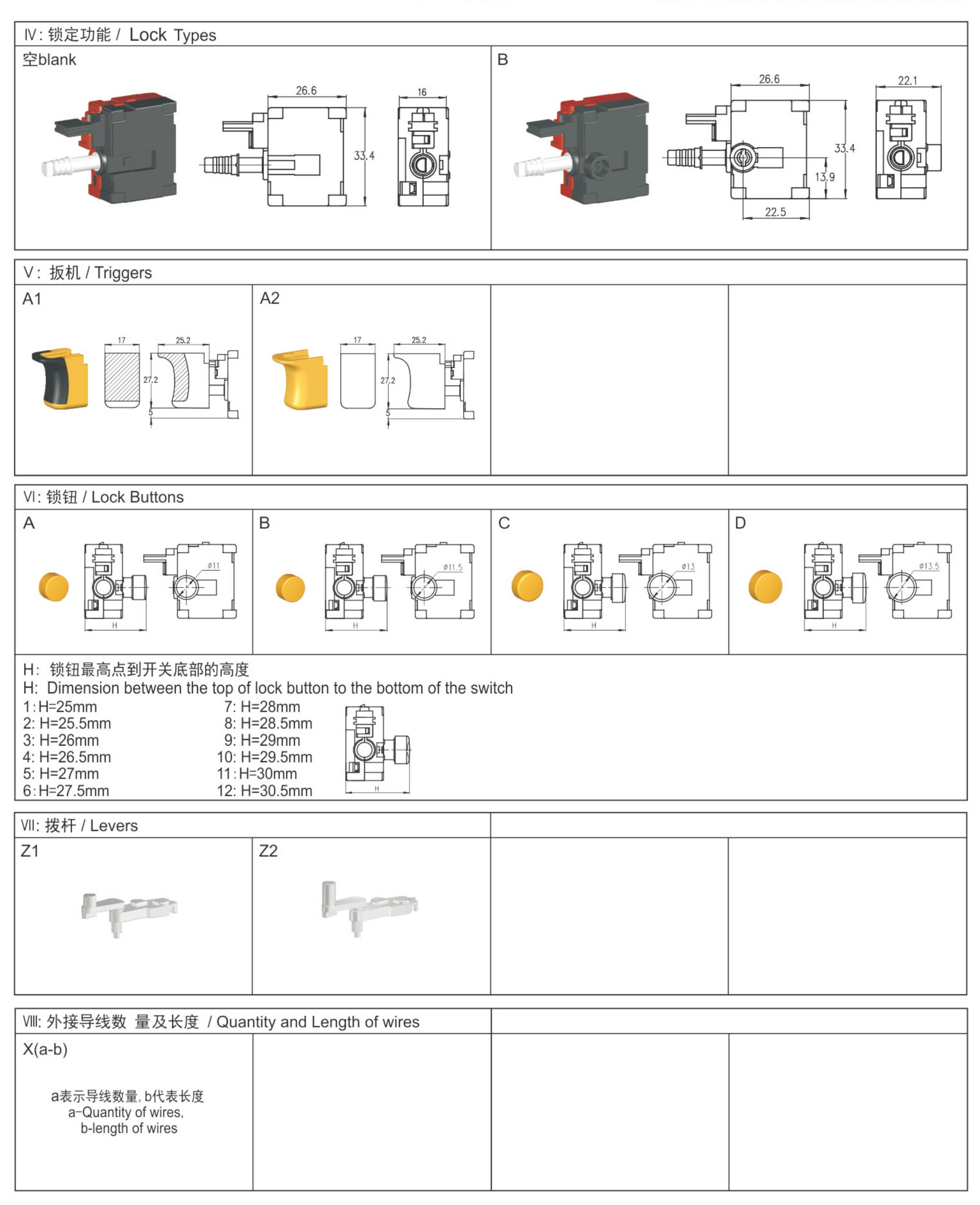

→ Optional with Lock-on button
→ Trigger coverde with rubber (overmolding)
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |
| → Max. current | 0.1A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side/Output side:
→ Wire Terminal with Plug
