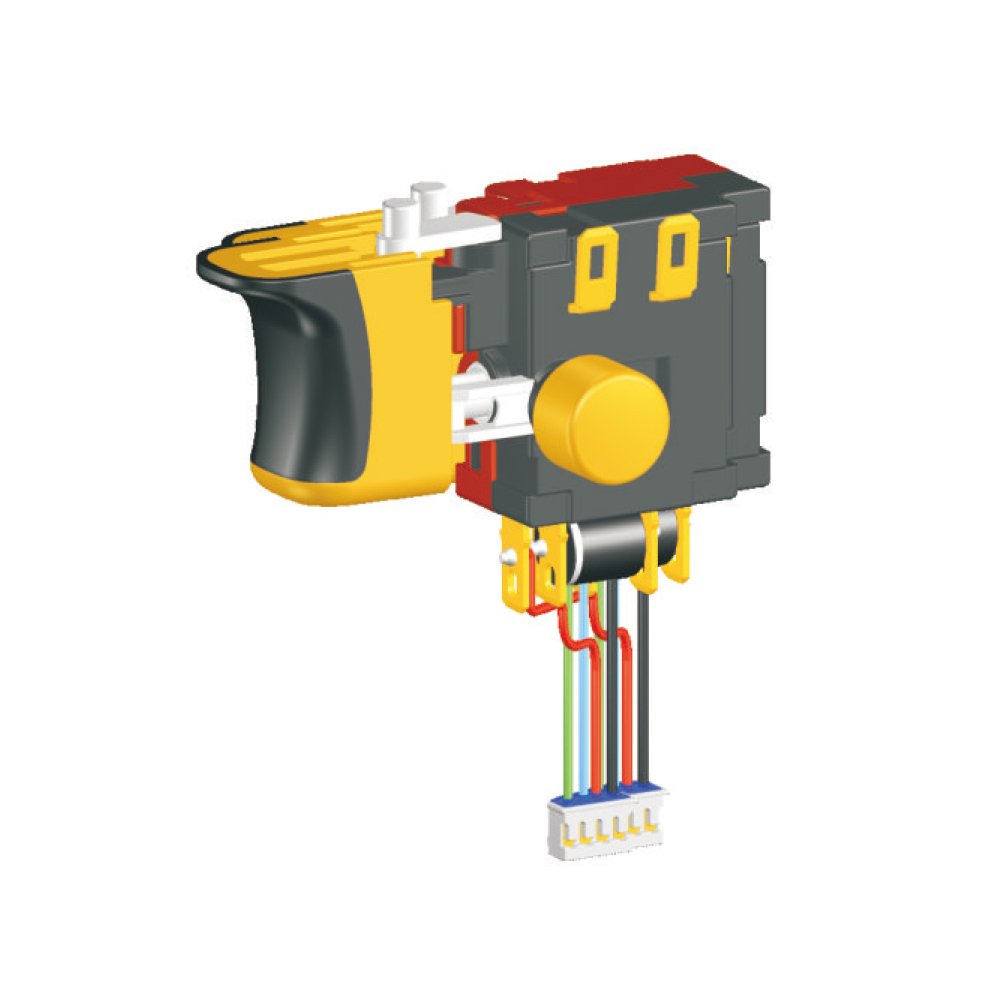

◆ DT03 series areone special type DC trigger switches integrated dustproof and mechanical brake contact, and reversing box, commonly for used in DC cordless portable power-tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Rotary Hammers, Cordless Impact Wrenches, etc. Besides, they also suitable for brushless DC tools.
◆ Optional with the function or accessor as follows:

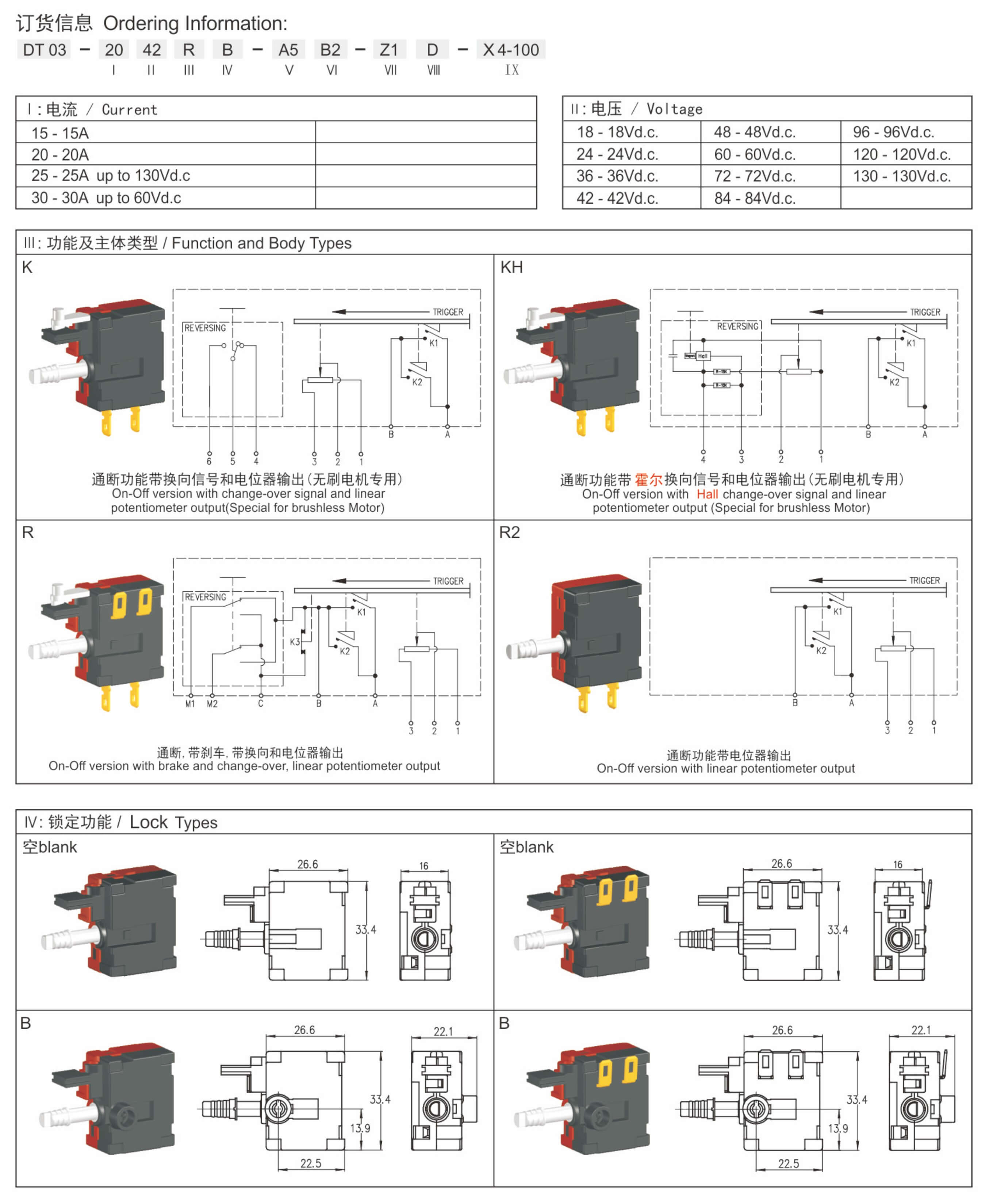

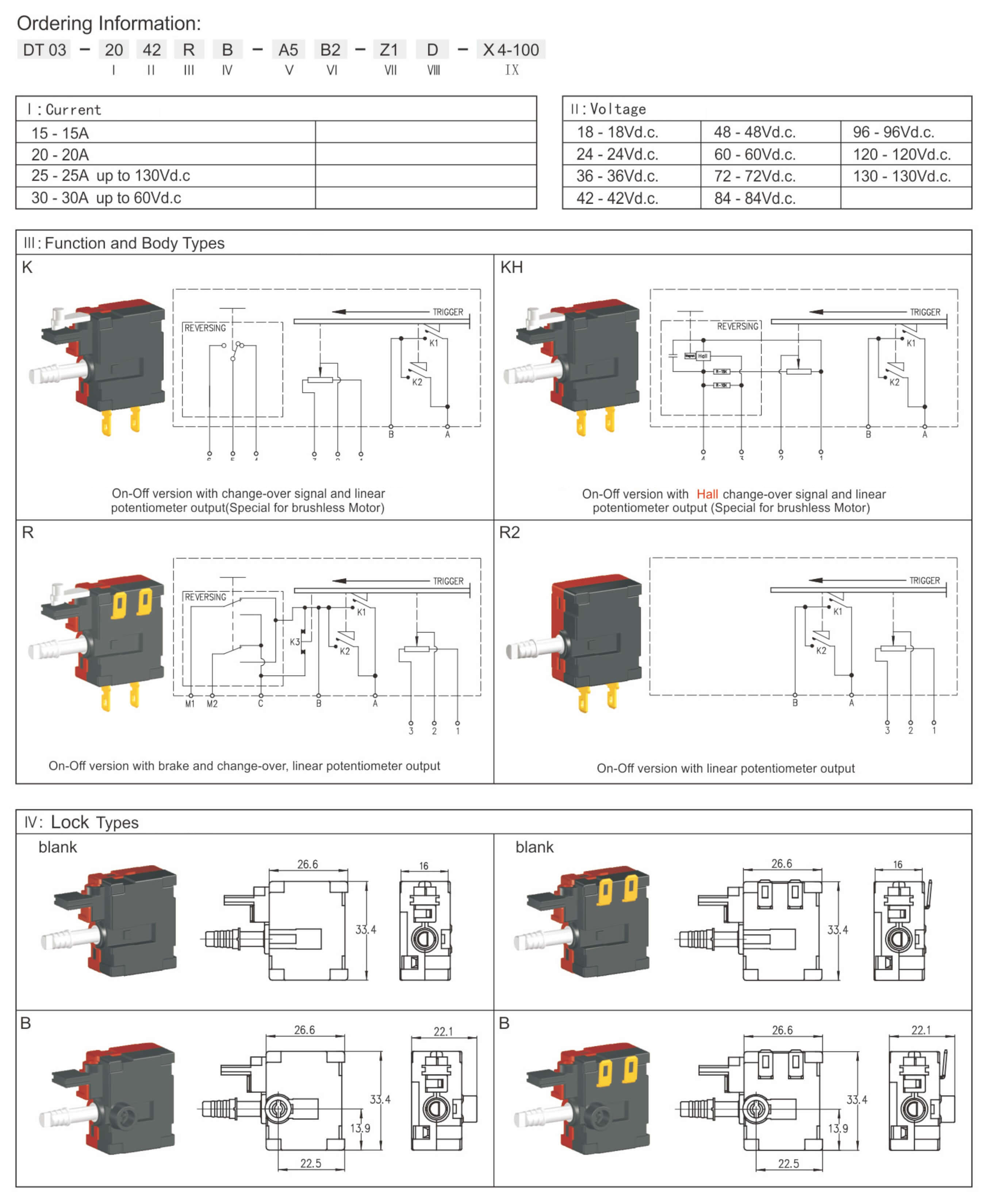

→ On-off with linear potentiometer ouput
→ On-off with Reversing signal indication and linear potentiometer ouput (Special for DC brushless applications)
→ On-off with Reversing hall signal and linear potentiometer ouput (Special for DC brushless applications)

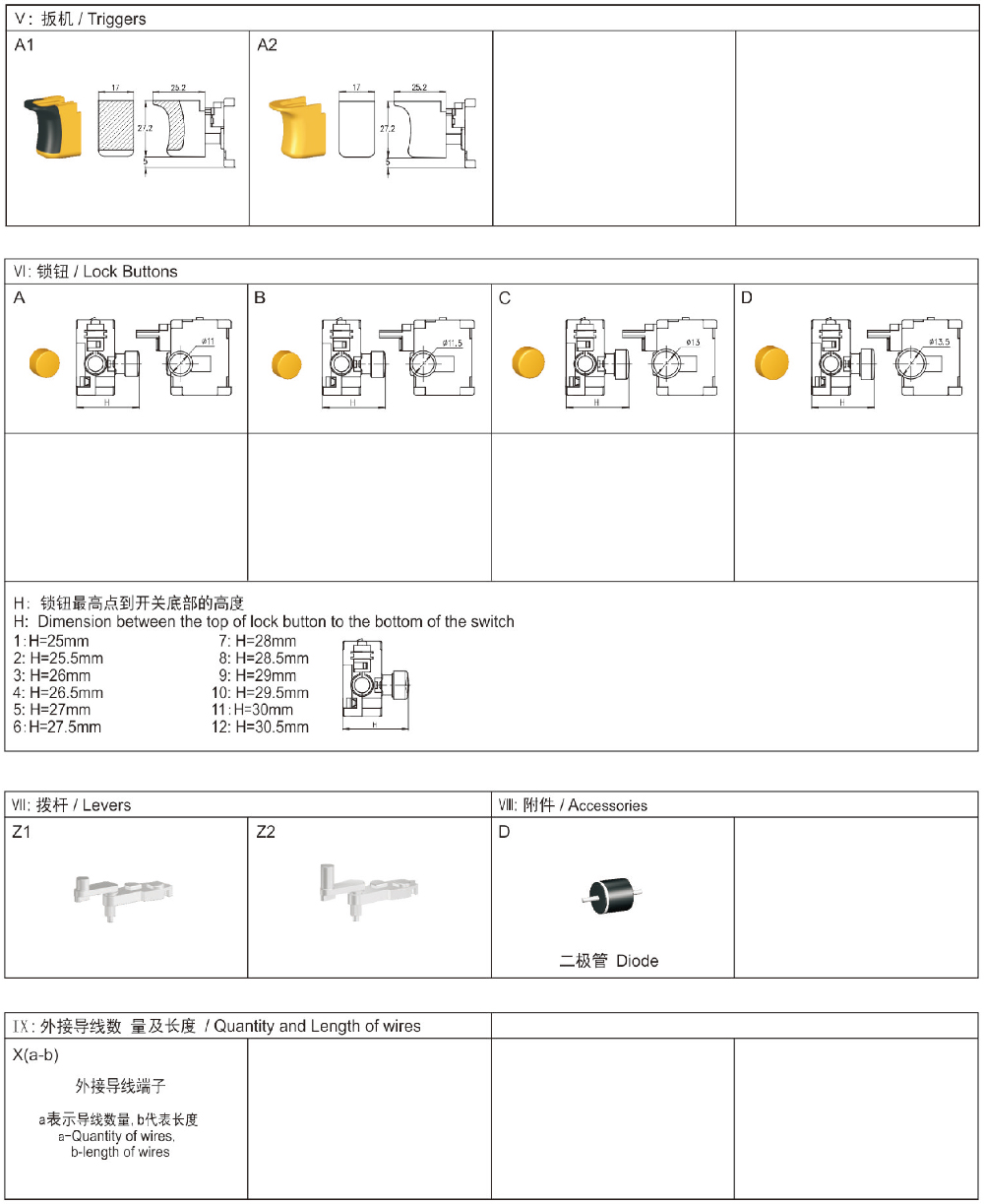

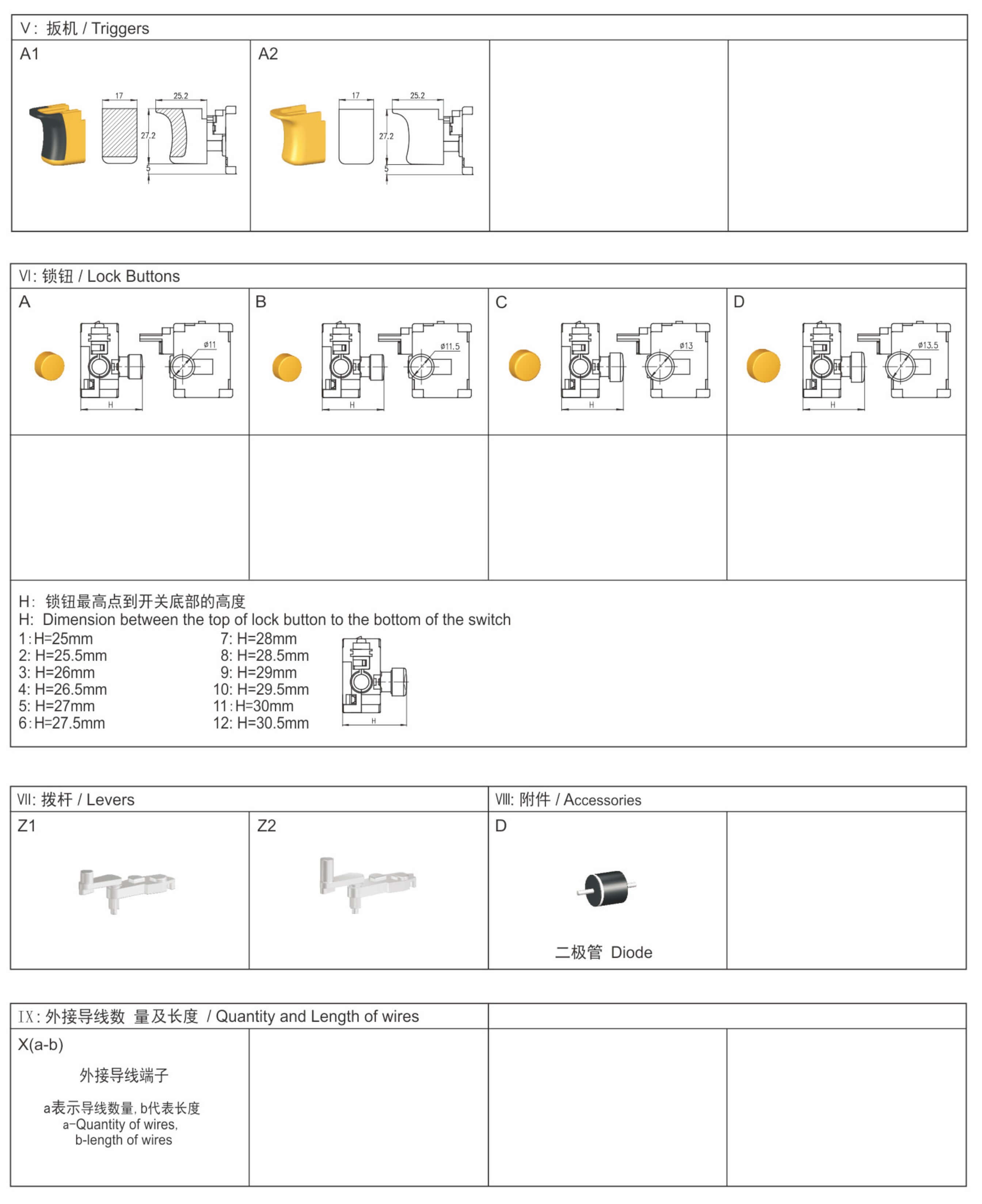

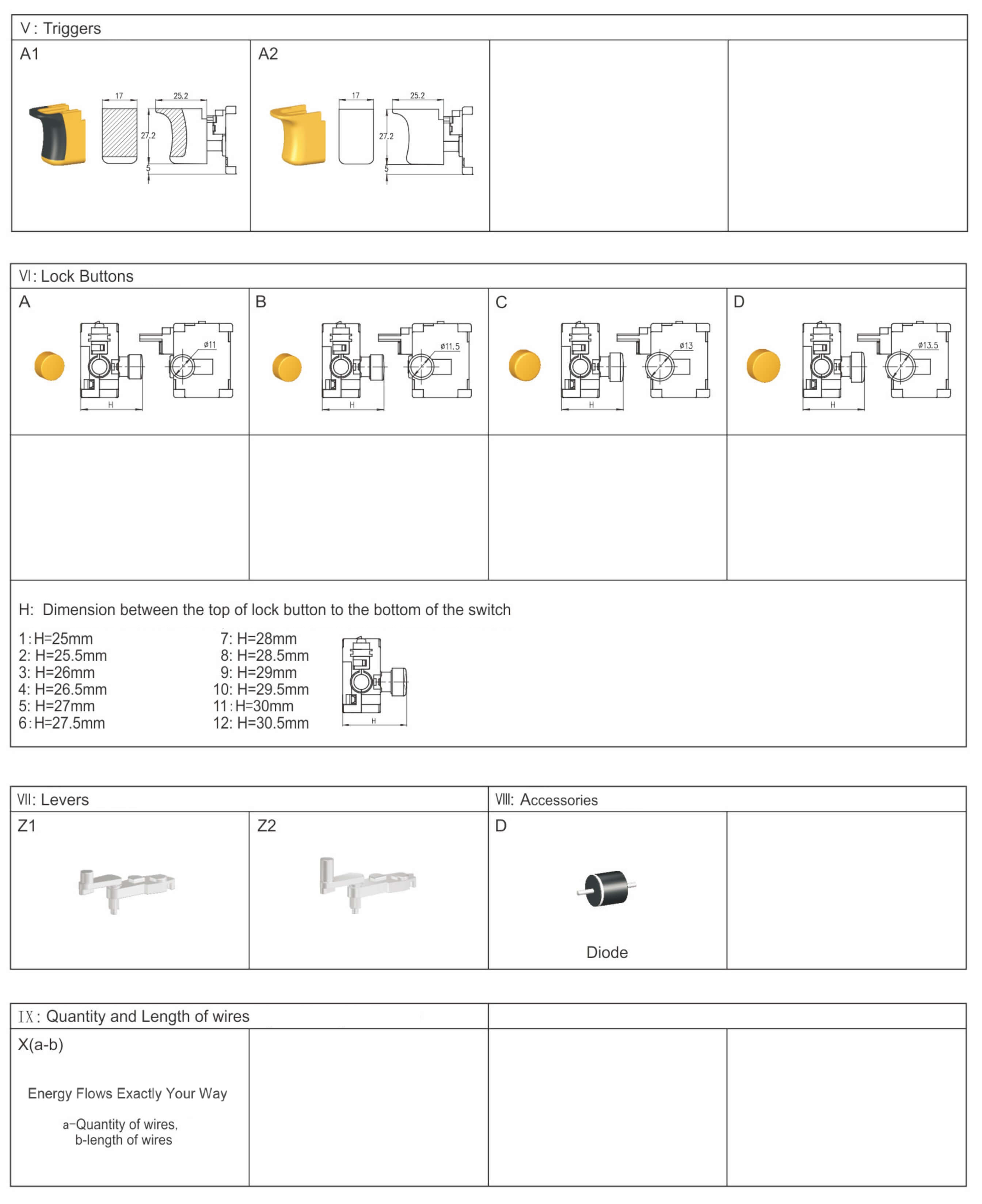

→ Optional with Lock-on button
→ Trigger coverde with rubber (overmolding)
| → Mechanical life endurance | ≥1E5 |
| → Electrical life endurance | ≥5E4 |

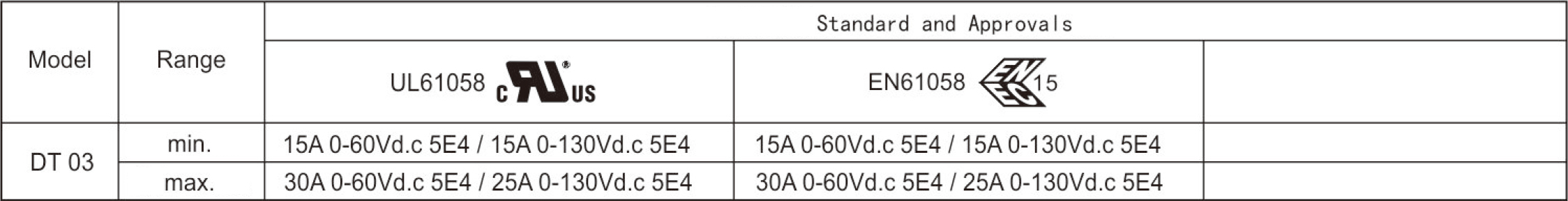

| → Max. current at 60Vd.c | 30A |
| → Max. current at 130Vd.c | 25A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1500V |
| → Dielectric strength of reinforced | 3000V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side/Output side:
→ Solder terminal 4.7×0.8mm
→ Wire with tin conductor
◆ Potentiometer Output :
→ Wire with tin conductor
→ Wire Terminal with Plug
