◆ DT02 series areone special type DC trigger switches integrated dustproof and mechanical brake contact, optional with inner reversing structure, commonly for used in DC cordless portable power-tools and power gardening tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Rotary Hammers, Cordless Impact Wrenches, Cordless Grass Trimmers, Cordless Blowers etc. Besides, they also suitable for brushless DC tools.

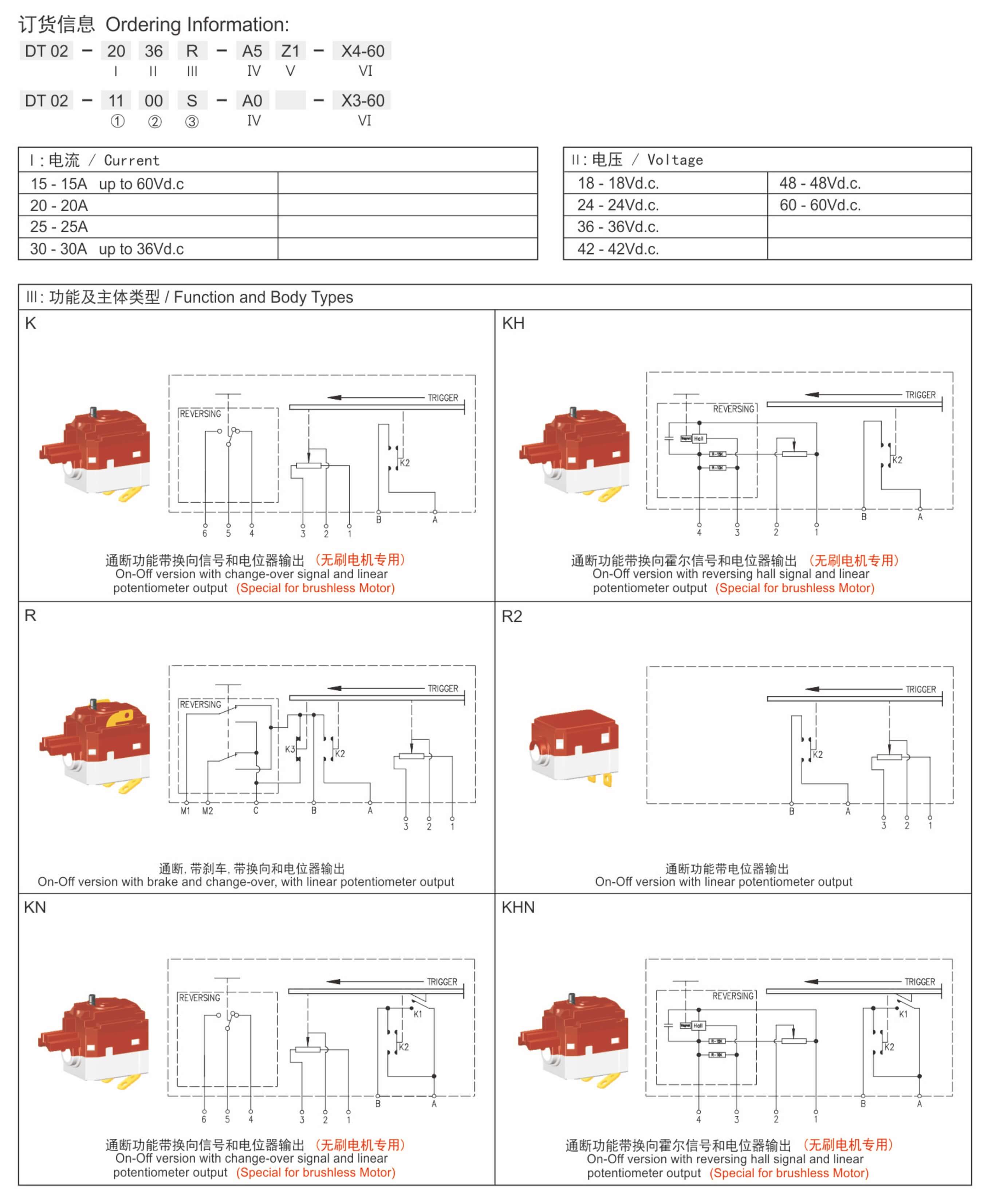

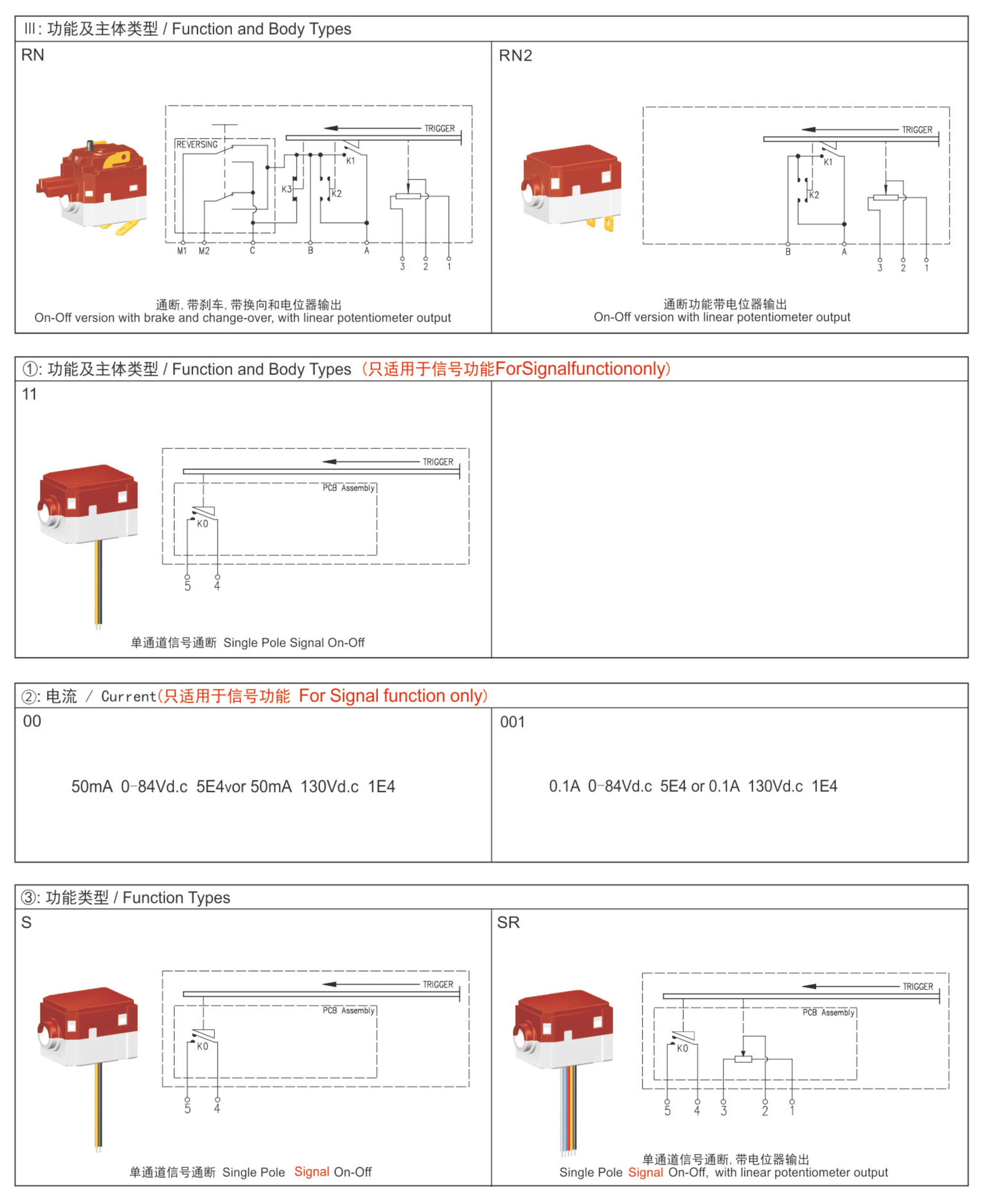

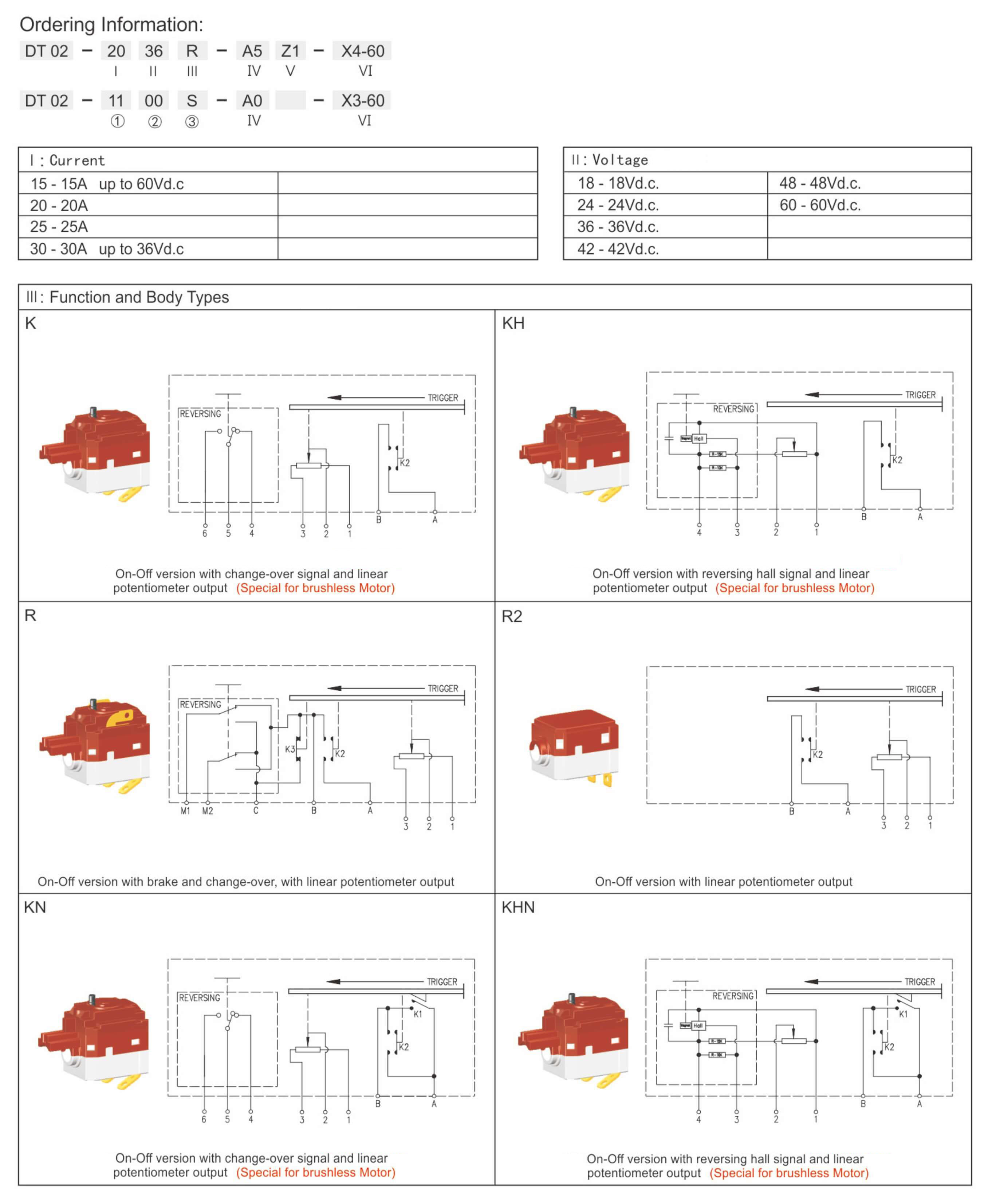

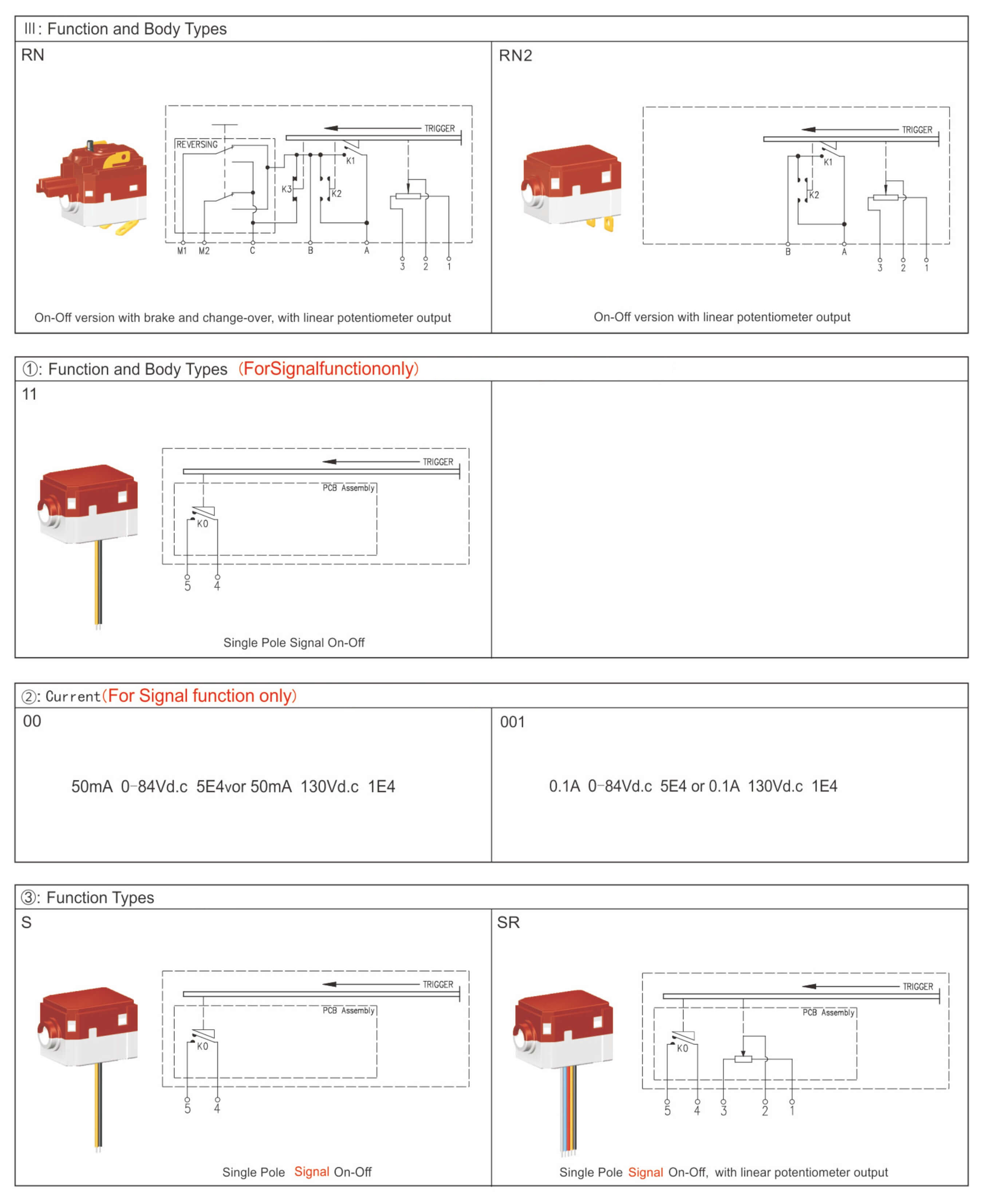

◆ The switches combine compact size, Optional with the function or accessor as follows:
→ On-off with linear potentiometer ouput
→ On-off with mechanical reversing and linear poteniometer ouput
→ On-off with reversing signal indication and linear potentiometer ouput (Special for DC brushless applications)
→ On-off with teversing hall signal and linear potentiometer ouput (Special for DC brushless applications)
→ Auxiliary wire or battery clamp

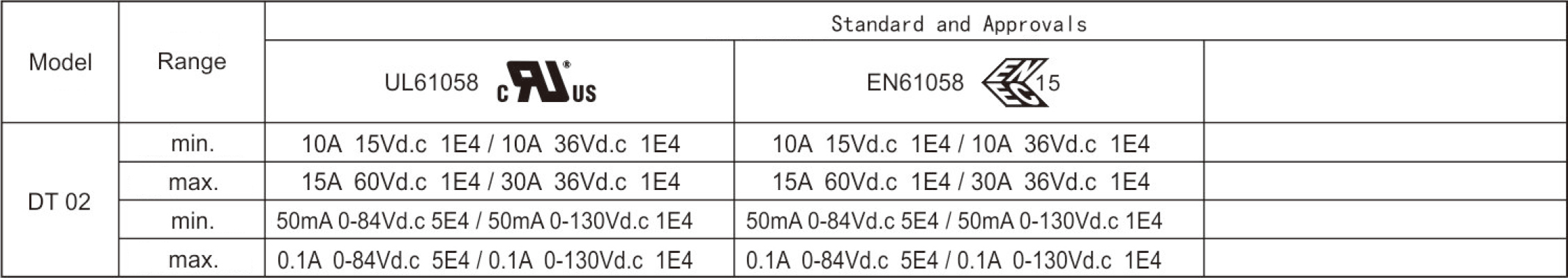

| → Mechanical life endurance | ≥5E4/1E5 |
| → Electrical life endurance | ≥1E4/5E4 |
| → Max. current at 36Vd.c | 30A |
| → Contact resistance | ≤30m Ohm |
| → Insulation resistance | ≥7M Ohm |
| → Dielectric strength of function | 1300V |
| → Dielectric strength of reinforced | 2600V |
| → Ambient temperature | 0℃~55℃ |
| → Flammability | UL 94V-0 |
| → Protection type | IP40 |
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ Input side:
→ Solder terminal 4.2×0.8mm
◆ Output side:
→ Solder terminal 4.6×0.5mm
