◆ RS03 系列是一款标准型的跷板开关，也通称船型开关，波形开关等.用途极广，广泛应用于各类家用电器及办公设备，如：电扇，饮水机，取暖器等
◆ RS03 series are standard type rocker switches, commonly for use in small Home appliances and office equipments, such as: Electric Fans, Drinking Machines, Electric Heaters, etc.

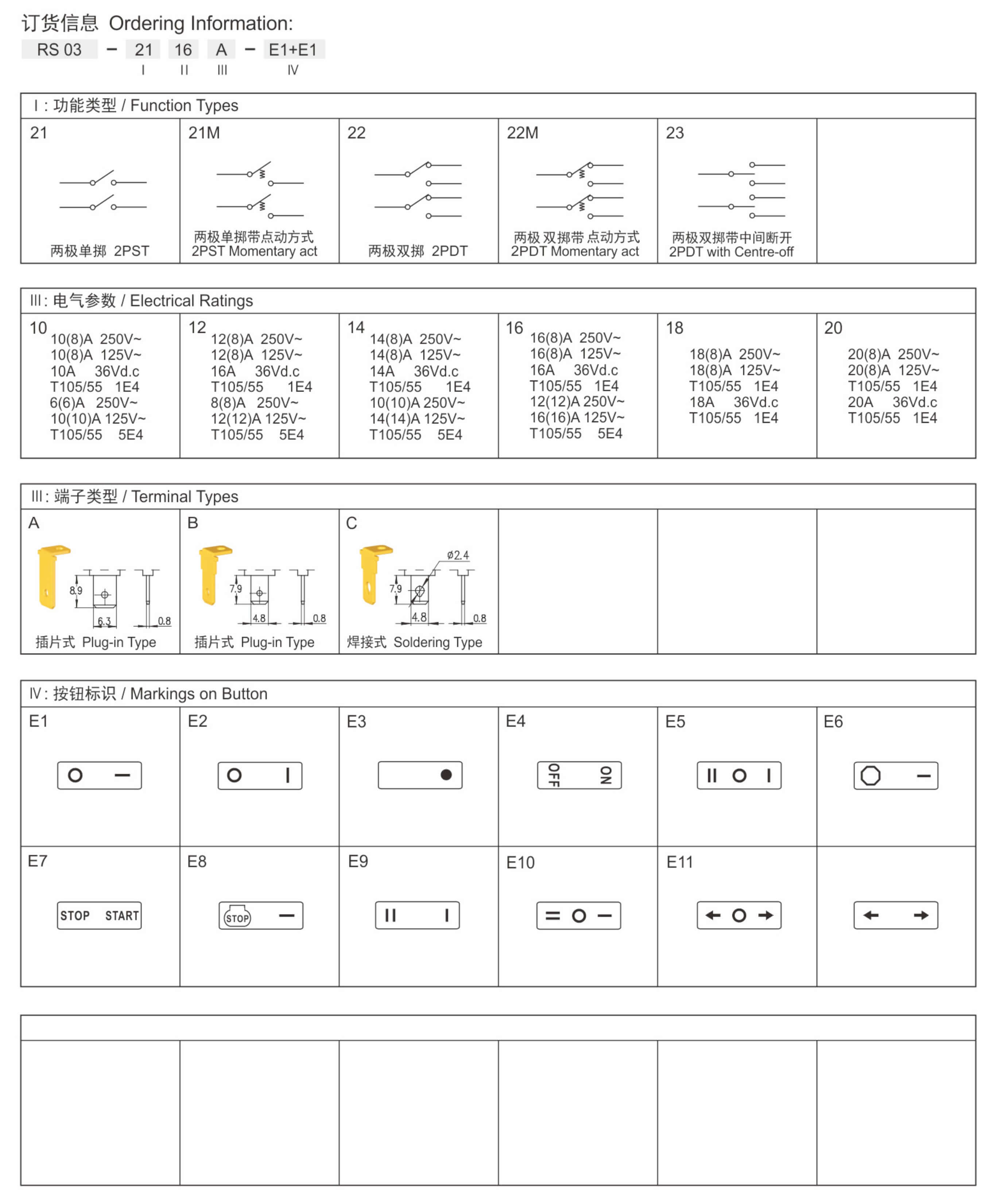

◆ 可选带以下功能： Optional with the function as follows:
→ 两极单掷 2PST (2 Pole Single Throw)
→ 两极双掷 2PDT (2 Pole Double Throw)
→ 两极双掷带中间断开 2PDT with center off
→ 点动功能 Momentary act
| → 机械耐久寿命 Mechanical life endurance | ≥5E4/1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥1E4/5E4 |
| → 最大冲击电流 Max. Inrush current at 250V | 48A/72A |
| → 最大冲击电流 Max. Inrush current at 127V | 48A/96A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~105℃ |
| → 操动件温度 Actuator temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
| → 适用于II类防护器具 Suitable for appliances of protection class II | |
◆ 输入端/输出端 Input side/Output side:
→ 插片端子 Plug-in terminals 6.3×0.8mm
→ 插片端子 Plug-in terminals 4.8×0.8mm
→ 焊接端子 Soldering terminals
