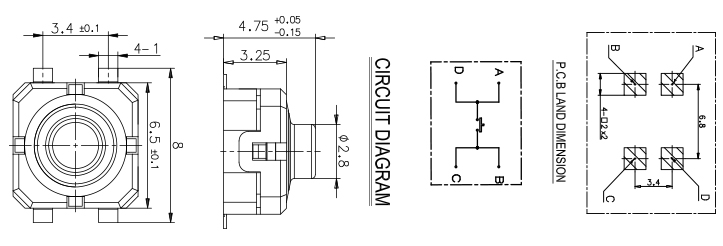

标准12 x 12mm整体尺寸结构 (Construction with standard dimension 12 x 12mm overall size)
提供SMT和THT两种端子设计 (SMT and THT termination design both available)
独特的点击感和密封的触点系统 (Unique click and a sealed contact system)
汽车（方向盘、中控台、车窗升降器） (Automotive (steering wheel, mid-console, window lifter))
监控系统 (Monitoring system)
一次性医疗设备 (Disposable medical devices)
扫描系统 (Scan system)
病人监护设备 (Patient monitoring equipments)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -40℃ to +90℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 50mA. 12V DC |
| 绝缘电阻 Insulation resistance | 10MΩ min. DC 500V | |
| 介电强度 Dielectric strength | AC 500V for 1 min | |
| 接触电阻 Contact resistance | 100mΩ max | |
| 耐用性 Durability | 寿命 Lifetime | 2×10⁴ cycles |
| 机械性能 Mechanical performance | 操作力 Operating force | 300+80-20gf |
| 行程 Travel | 0.7±0.15mm | |
