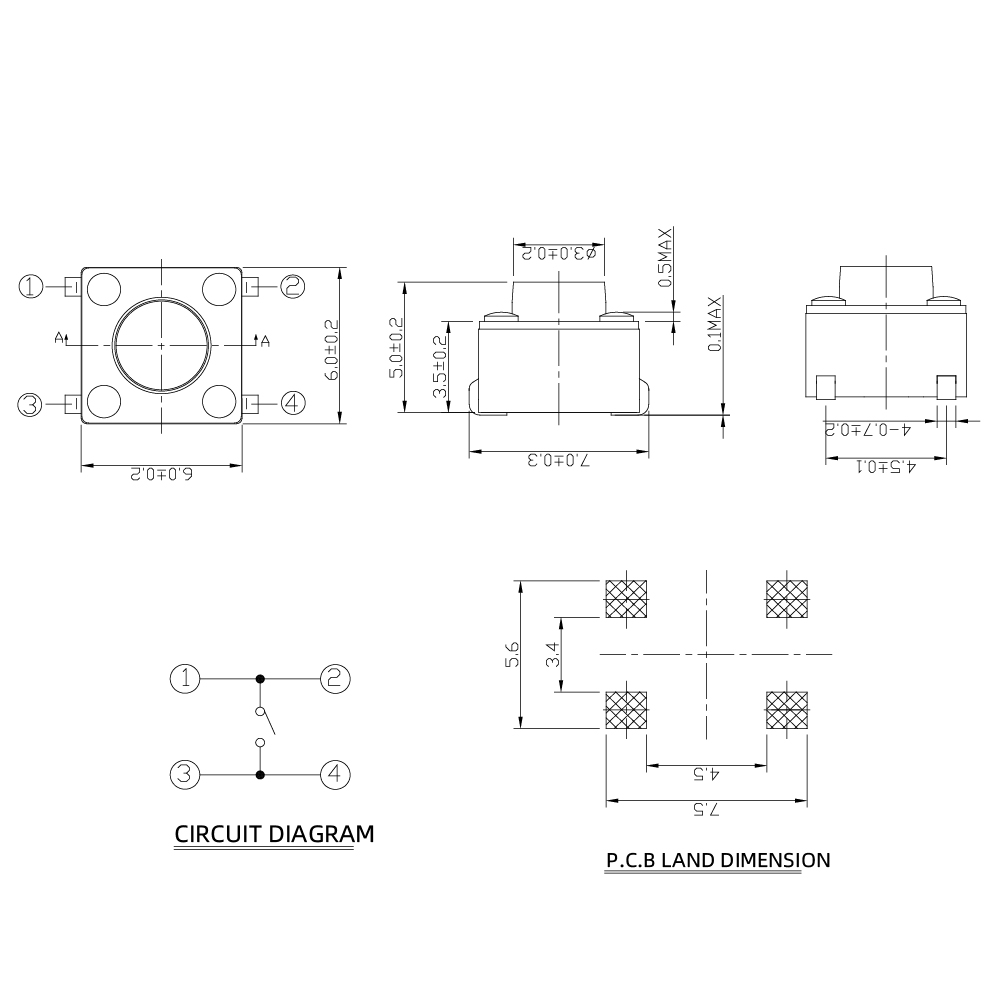

J 型弯脚可大幅节省 PCB的焊接区域 (J-type bent pins can greatly save PCB soldering area)
能源/工业: 工业设备 (Industrial Equipment)
医疗健康: 健康器具, 分析检查器具 (Health Appliances, Analysis and Inspection Equipment)
家用: 办公设备 (Office Equipment)
音视频/电视: 画面, 音响, 专业音响 (Video, Audio, Professional Audio)
| 项目 Items | 参数 Standard | |
|---|---|---|
| 工作温度范围 Operating temperature range | -40℃ to +85℃ | |
| 电气性能 Electrical performance | 额定电流 Rating | 50mA 12V DC |
| 绝缘电阻 Insulation resistance | 100MΩ min. 100V DC for 1 min | |
| 介电强度 Dielectric strength | 250V AC for 1 min. | |
| 接触电阻 Contact resistance | 100mΩ max. | |
| 耐用性 Durability | 寿命 Lifetime | 100.000 cycles |
| 机械性能 Mechanical performance | 动作力 Operating force | J:160gf C:250gf |
| 行程 Travel | 0.25±0.1mm | |
