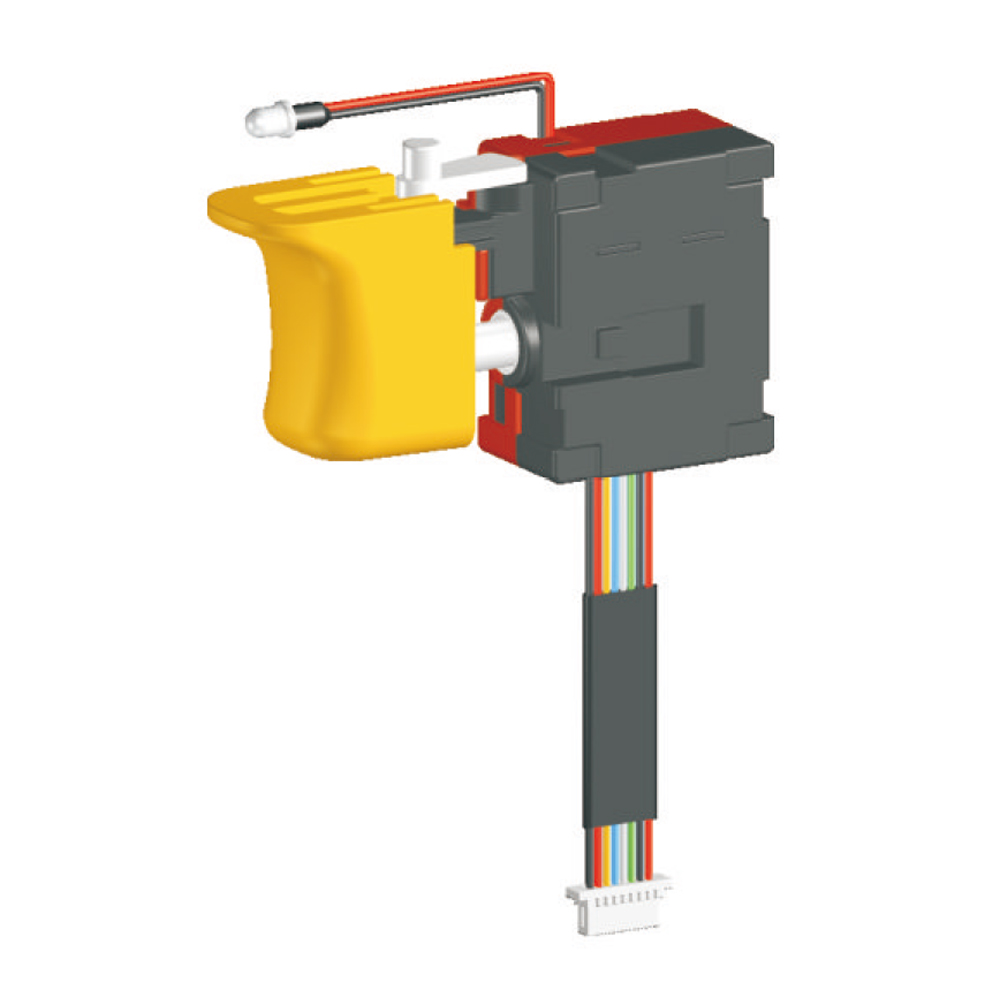

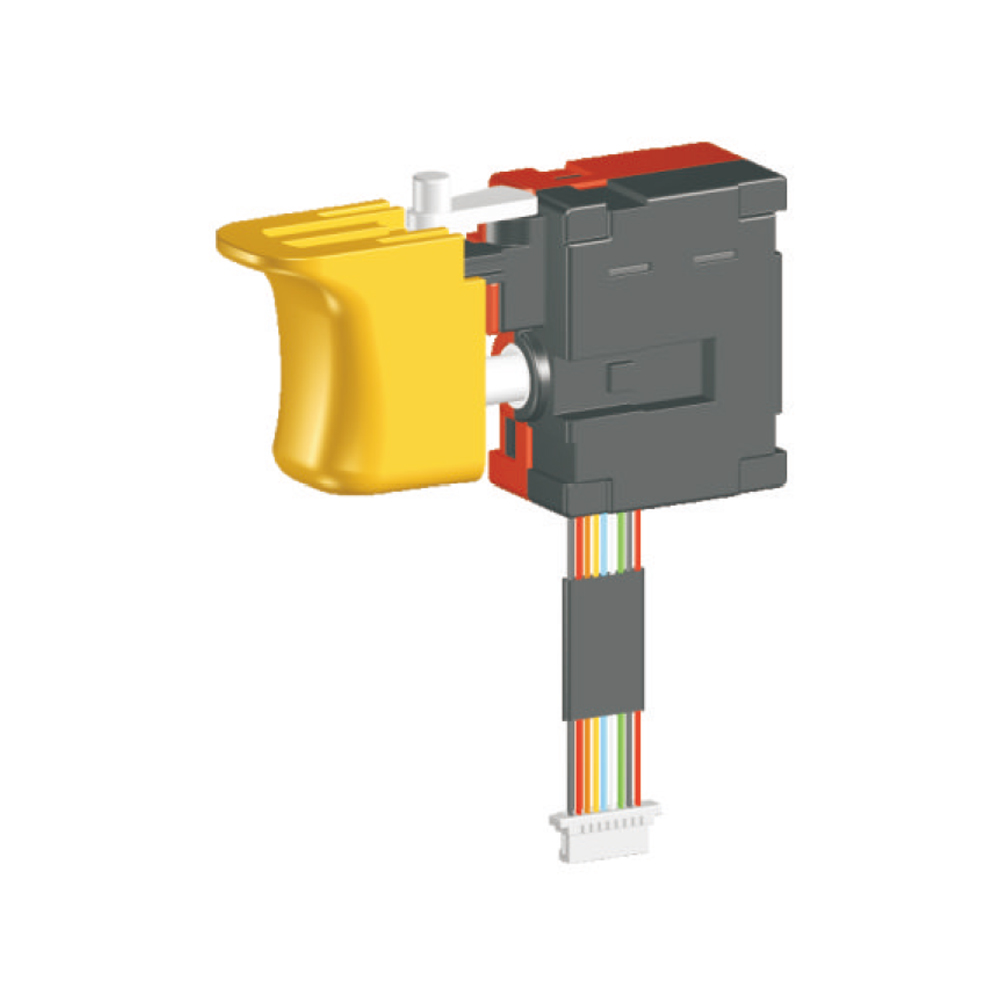

◆ DT04 系列是一款通用型的直流信号扳机开关，集成防尘功能，内部带换向结构，特别应用于各类直流无刷充电式手持电动工具和园林工具，如：无刷充电式电钻，无刷充电式电锤，无刷充电式螺丝起子，无刷充电式冲击扳手，无刷充电式打草机，无刷充电式吹风机等.
◆ DT04 series are general type DC signal trigger switches, integrated dustproof and reversing box, specially for used in DC cordless brushless portable power-tools and gardening tools such as: Cordless brushless Drills, Cordless brushless ScrewDrivers, Cordless brushless Rotary Hammers, Cordless brushless Impact Wrenches, Cordless brushless grass trimmer, Cordless brushless blowers, etc.

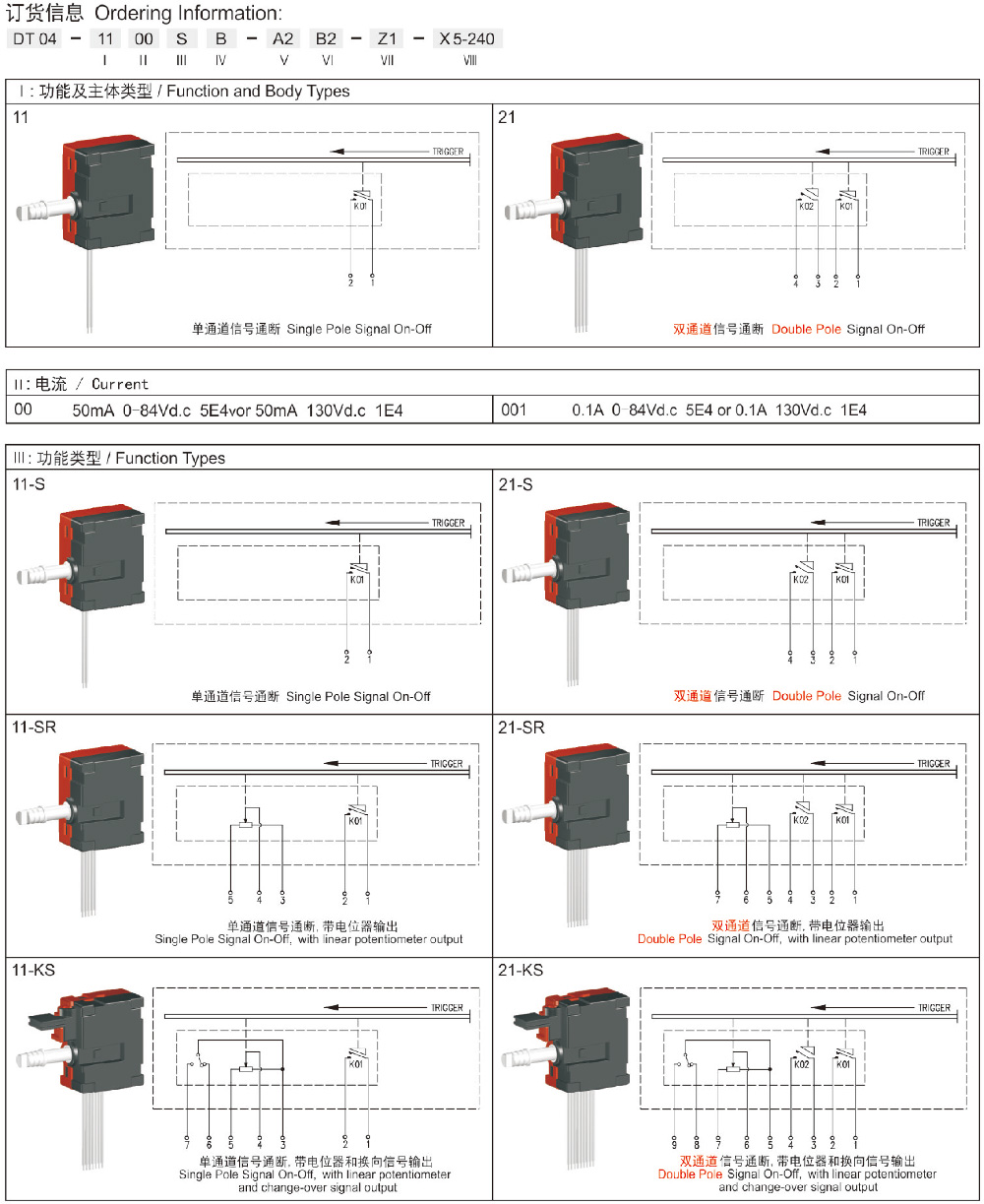

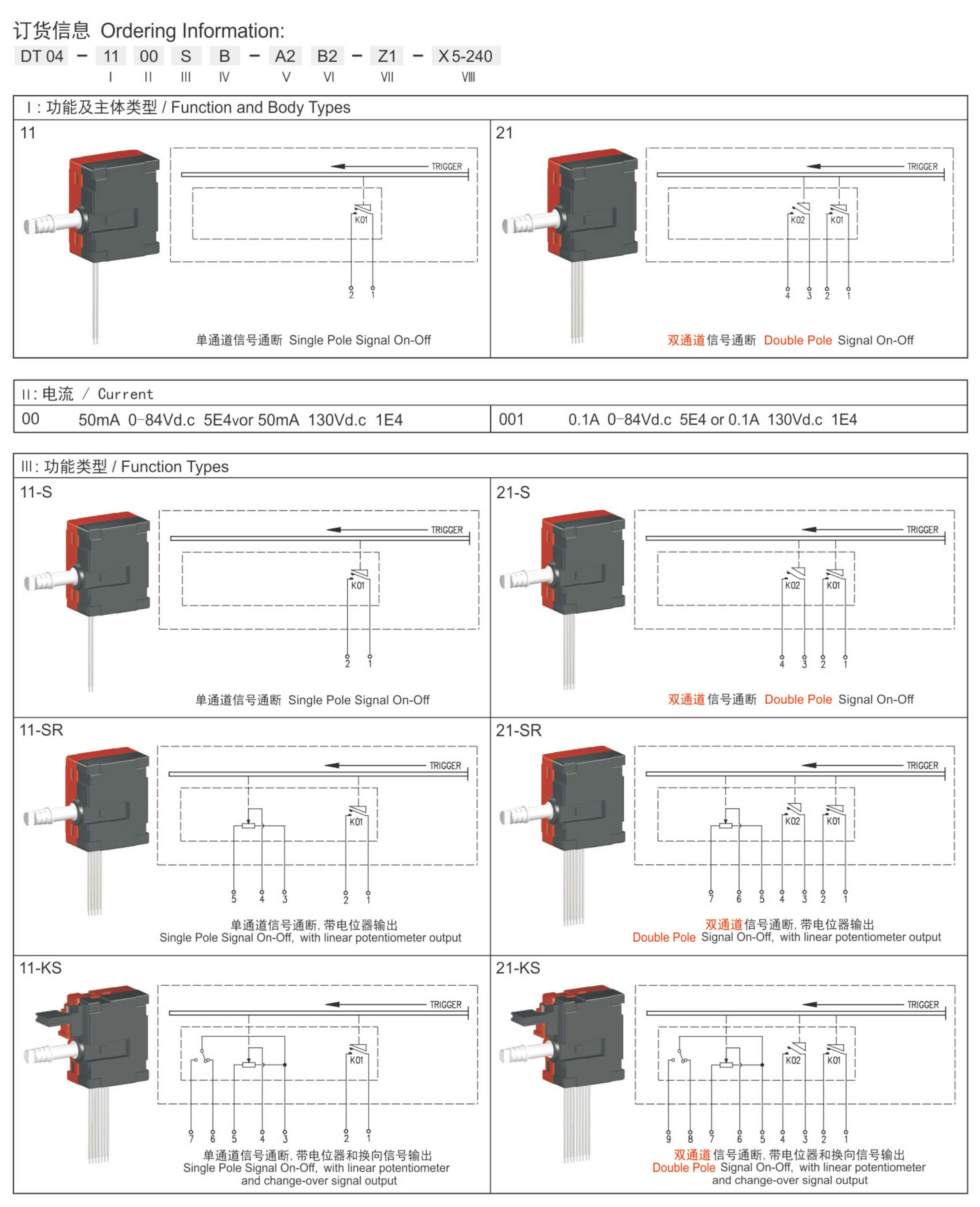

◆ 可附带以下功能或附件： Optional with the function or accessor as follows:
→ 信号通断带电位器输出功能 On-off with linear poteniometer ouput
→ 信号通断功能带正反转信号和电位器输出 On-off with Reversing signal indication and linear potentiometer ouput
→ 信号通断功能带正反转霍尔信号和电位器输出 On-off with Reversing hall signal and linear potentiometer ouput
→ 霍尔信号通断功能带正反转霍尔信号和霍尔电位器输出 Hall signal On-off with Reversing hall signal and hall linear potentiometer ouput

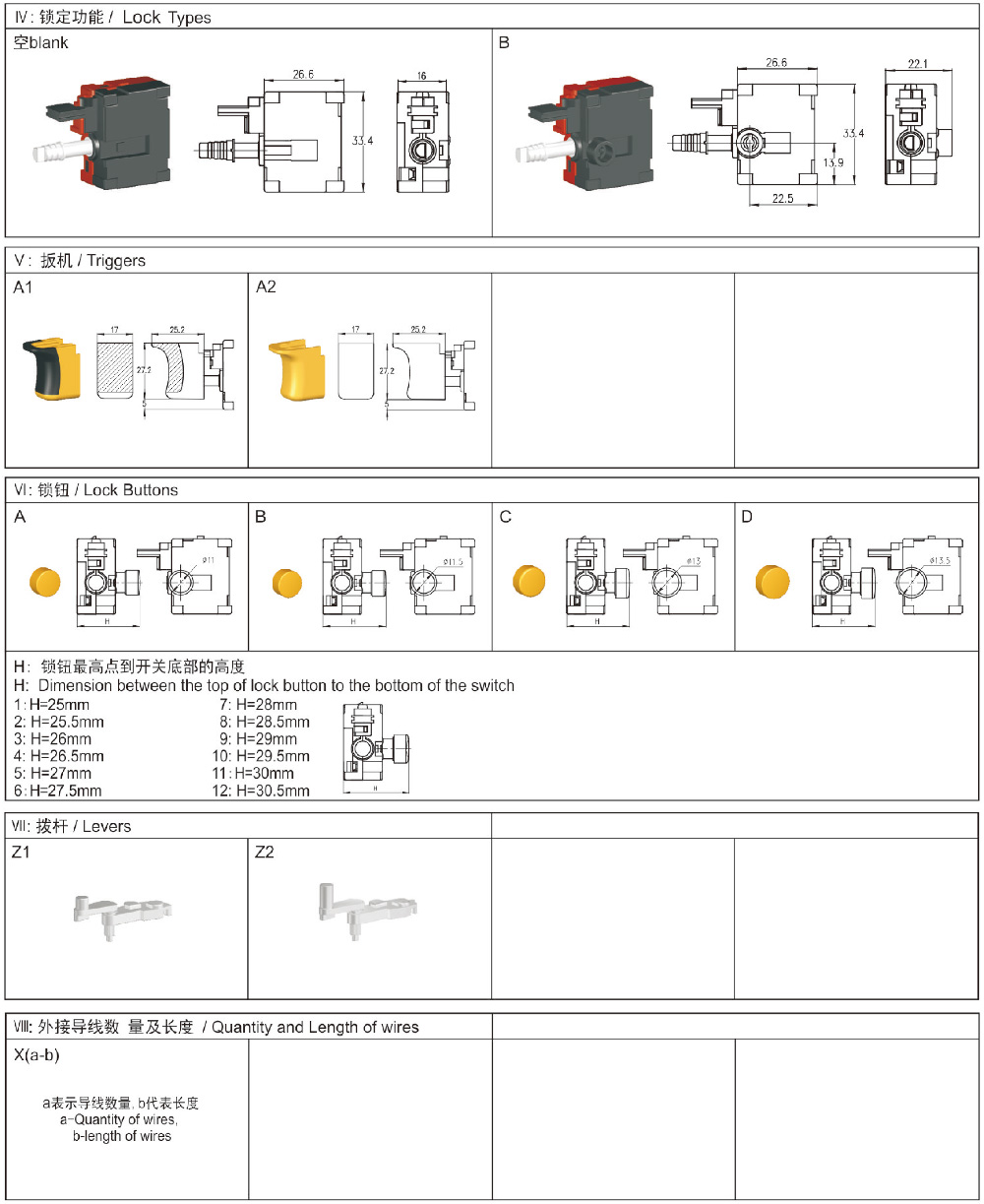

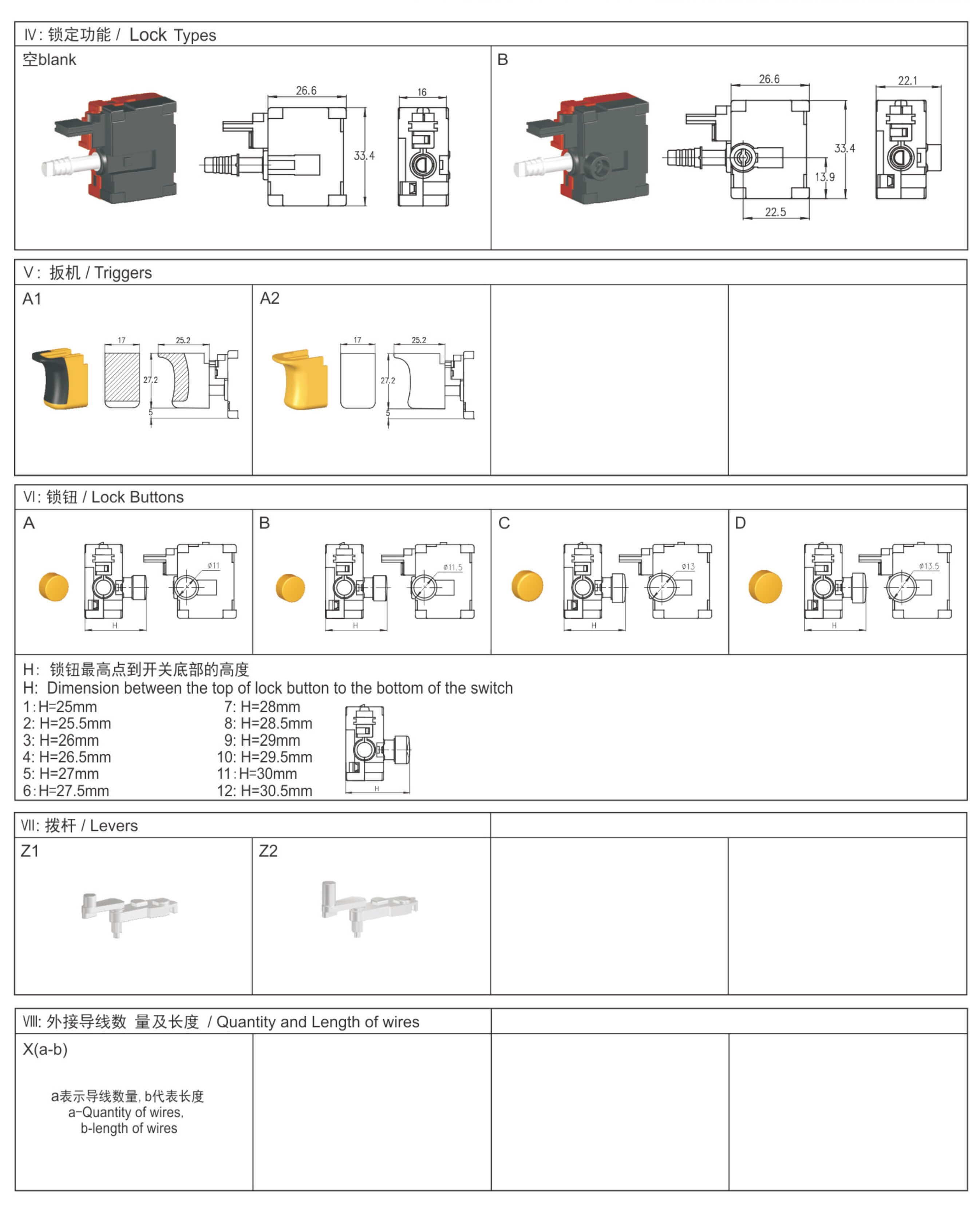

→ 可选带闭合锁定 Optional with Lock-on button
→ 带软胶扳机 Trigger coverde with rubber (overmolding)
| → 机械耐久寿命 Mechanical life endurance | ≥1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥5E4 |
| → 最大电流 Max. current | 0.1A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1500V |
| → 加强介电强度 Dielectric strength of reinforced | 3000V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端/输出端 Input side/Output side:
→ 带插头导线 Wire Terminal with Plug
