◆ DT02 系列是一款专用型的直流扳机开关，集成防尘和机械刹车接点，应用于各类充电式手持电动工具和电动园林工具如：充电式电钻，充电式电锤，充电式螺丝起子，充电式冲击扳手，充电式打草机，充电式吹吸机等，也可应用各类直流无刷电动工具.
◆ DT02 series areone special type DC trigger switches integrated dustproof and mechanical brake contact, optional with inner reversing structure, commonly for used in DC cordless portable power-tools and power gardening tools such as: Cordless Drills, Cordless Screw Drivers, Cordless Rotary Hammers, Cordless Impact Wrenches, Cordless Grass Trimmers, Cordless Blowers etc. Besides, they also suitable for brushless DC tools.

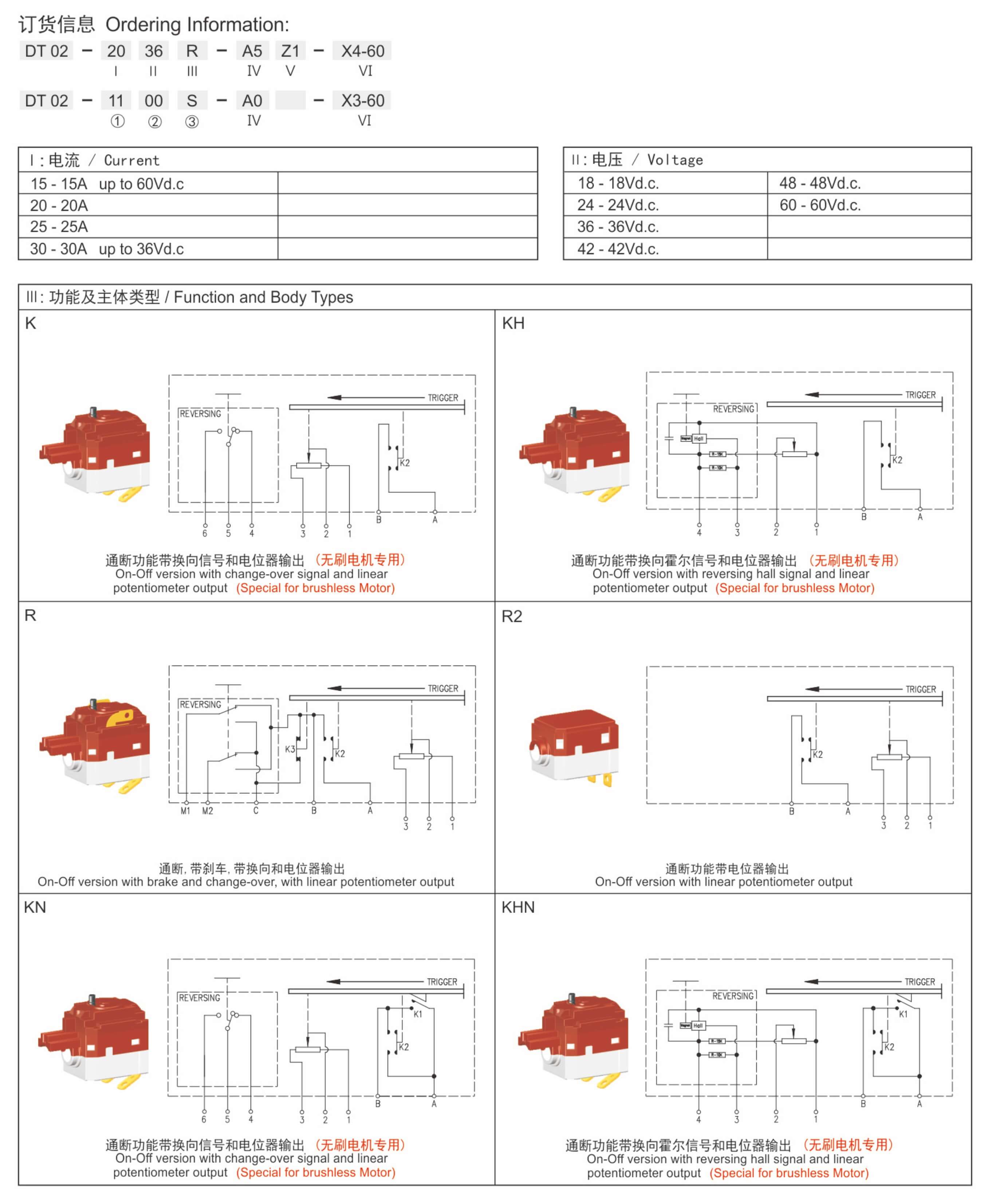

◆ 本开关结构紧凑，可附带以下功能或附件： The switches combine compact size, Optional with the function or accessor as follows:

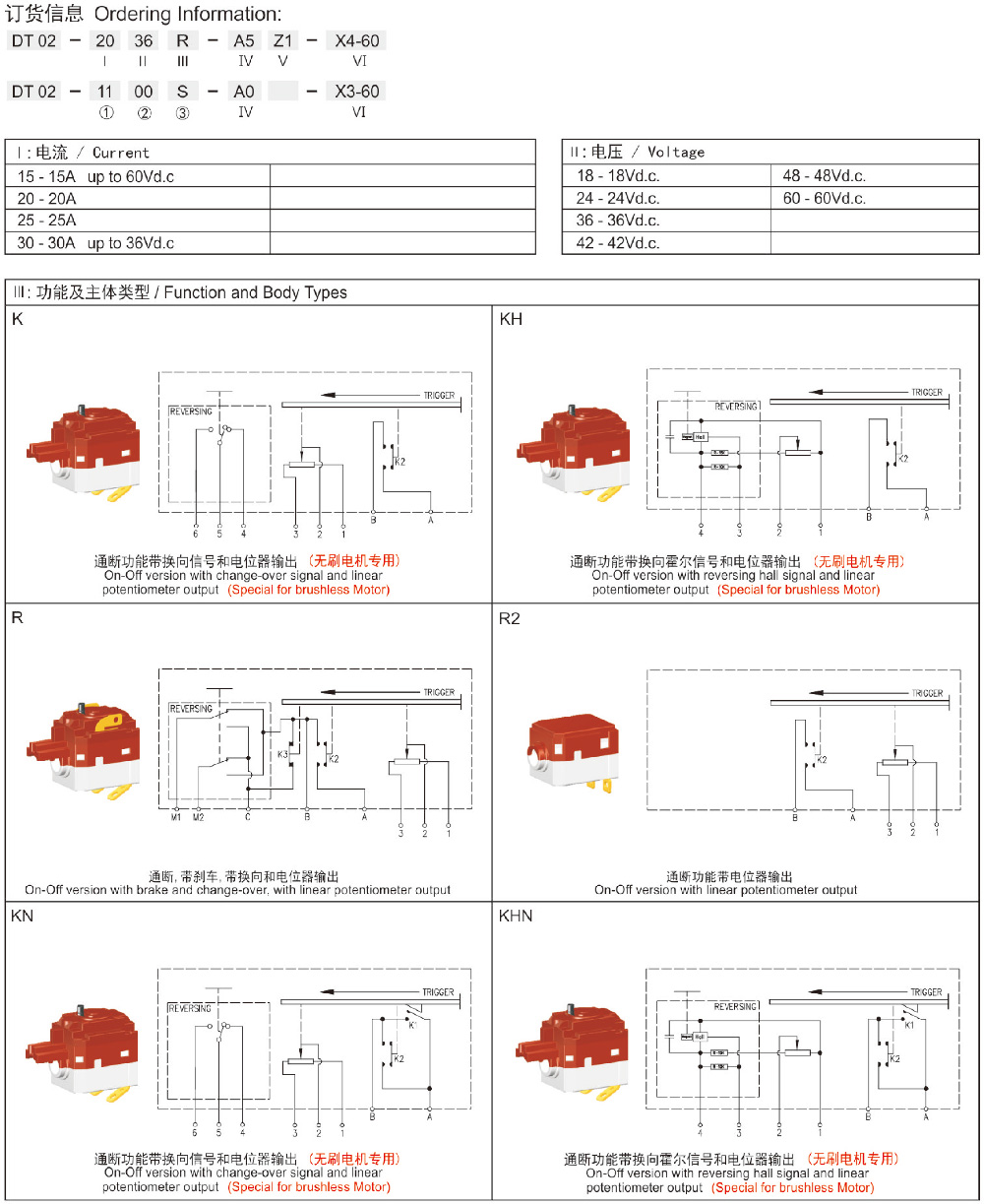

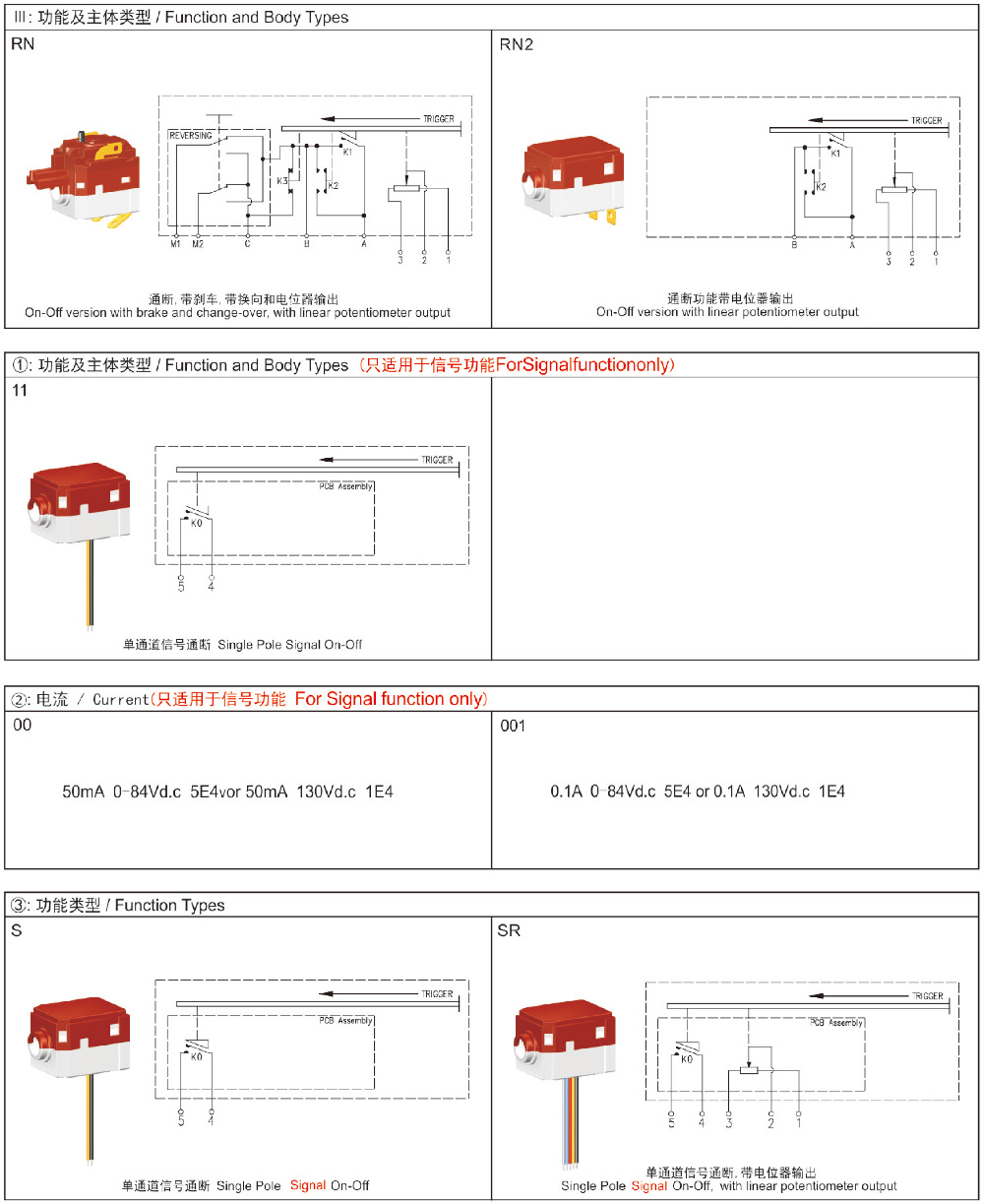

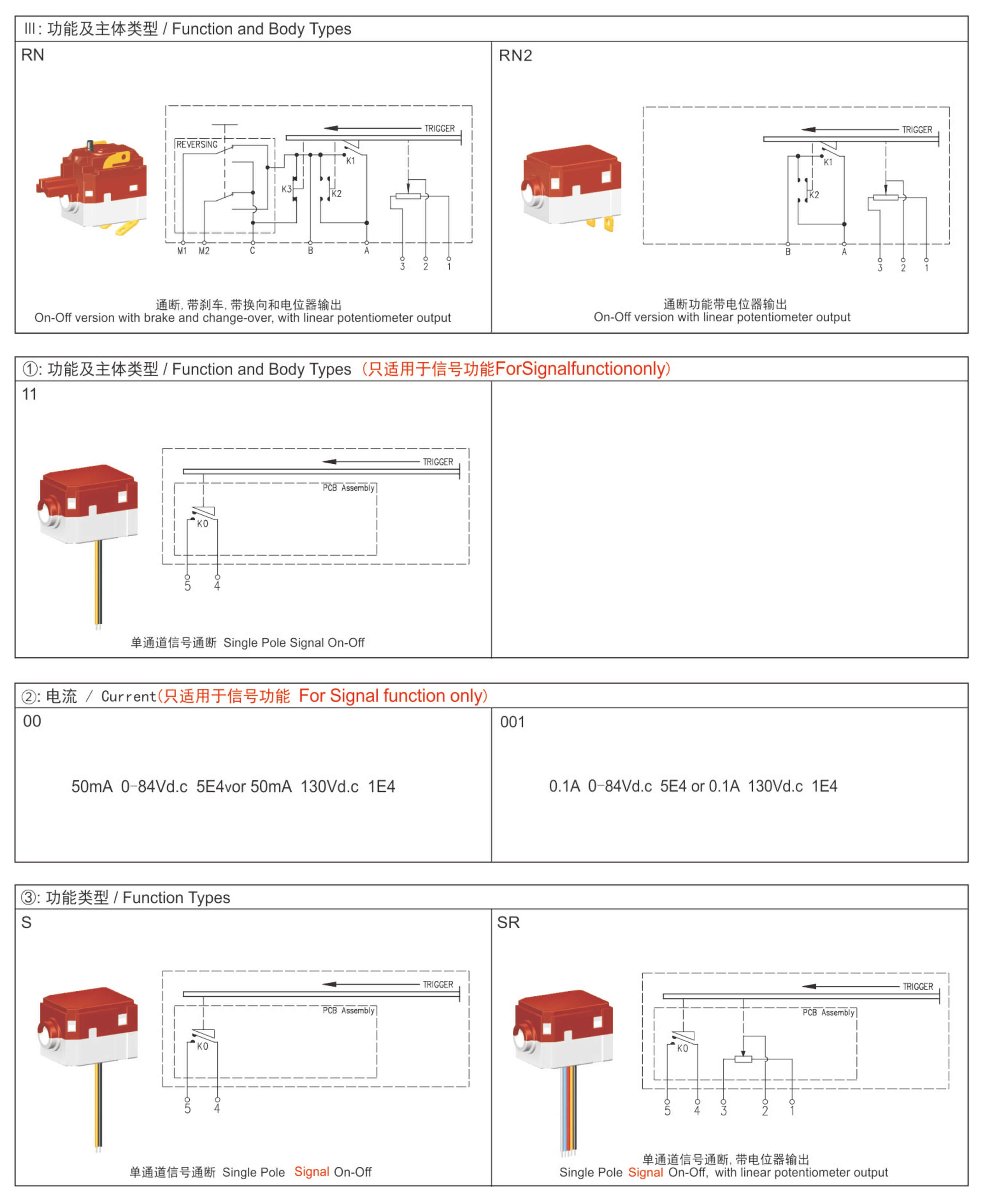

→ 通断功能带电位器输出 On-off with linear potentiometer ouput
→ 通断功能带机械转向和电位器输出（有刷直流工具专用） On-off with mechanical reversing and linear poteniometer ouput
→ 通断功能带正反转信号和电位器输出（无刷直流工具专用） On-off with reversing signal indication and linear potentiometer ouput (Special for DC brushless applications)
→ 通断功能带正反转霍尔信号和电位器输出（无刷直流工具专用） On-off with teversing hall signal and linear potentiometer ouput (Special for DC brushless applications)
→ 外接各类导线和电池夹 Auxiliary wire or battery clamp
| → 机械耐久寿命 Mechanical life endurance | ≥5E4/1E5 |
| → 电气耐久寿命 Electrical life endurance | ≥1E4/5E4 |
| → 最大电流 Max. current at 36Vd.c | 30A |
| → 接触电阻 Contact resistance | ≤30m Ohm |
| → 绝缘电阻 Insulation resistance | ≥7M Ohm |
| → 基本介电强度 Dielectric strength of function | 1300V |
| → 加强介电强度 Dielectric strength of reinforced | 2600V |
| → 环境温度 Ambient temperature | 0℃~55℃ |
| → 阻燃等级 Flammability | UL 94V-0 |
| → 防护等级 Protection type | IP40 |
◆ 开关内部电子部分在相应使用中一并做过相关测试，本开关适合做二类器具开关使用
◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.
◆ 输入端 Input side:
→ 焊接端子 Solder terminal 4.2×0.8mm
◆ 输出端 Output side:
→ 焊接端子 Solder terminal 4.6×0.5mm
