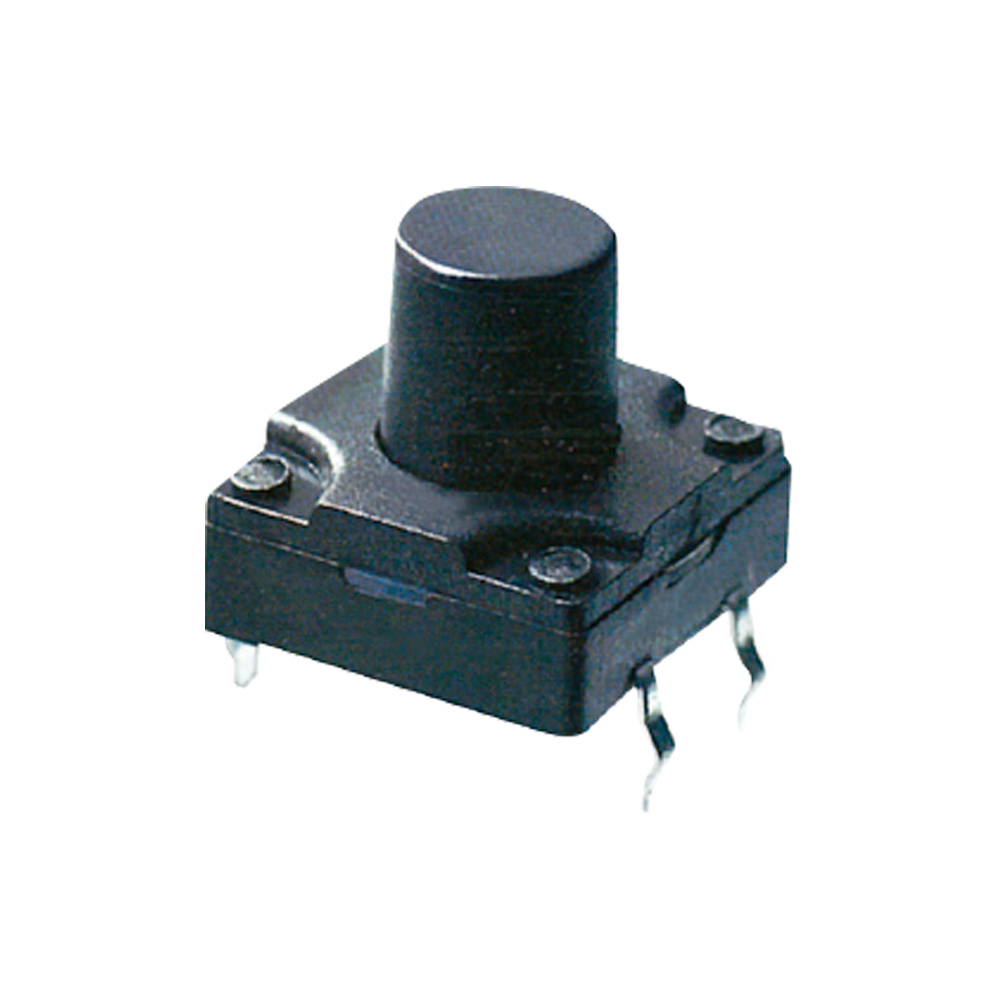

Microminiature, light operating;
Goodfeeling and long life;

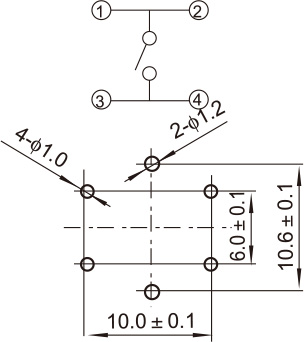

Snap-in type, can be mounted directly on P.C. Board and good for electrostatic discharge;
lt has a lot of choices for button shape and height and it is easily to install all kind of product.
They can operate all types of electronic equipment such as the telephone, PDA, DVD, digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.
| Items | Standard | |
|---|---|---|
| Operating temperature range | -20℃ to +70℃ | |
| Electrical performance | Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 100mΩ max. | |
| Durability | Lifetime | 100,000 Cycles |
| Mechanical performance | Operating force | H:400gf ± 70gf |
| Travel | 0.40 ± 0.2mm | |
| Water Resisting performance | Temperature of water | 60℃ |
| Depth of water | 10cm | |
| Immersion duration | Vertical type:240h Horizontal type:1h | |
